Service catalogue

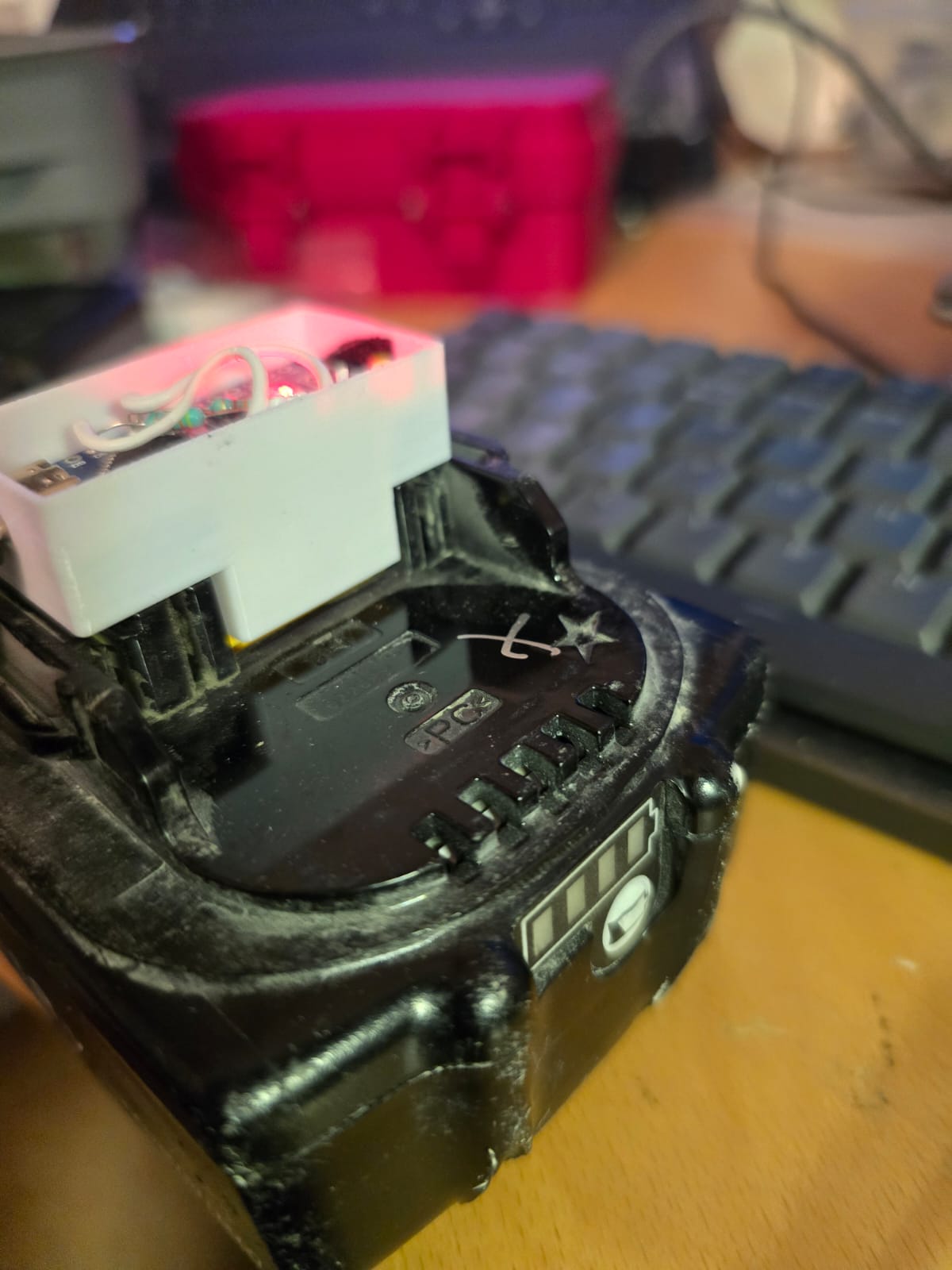

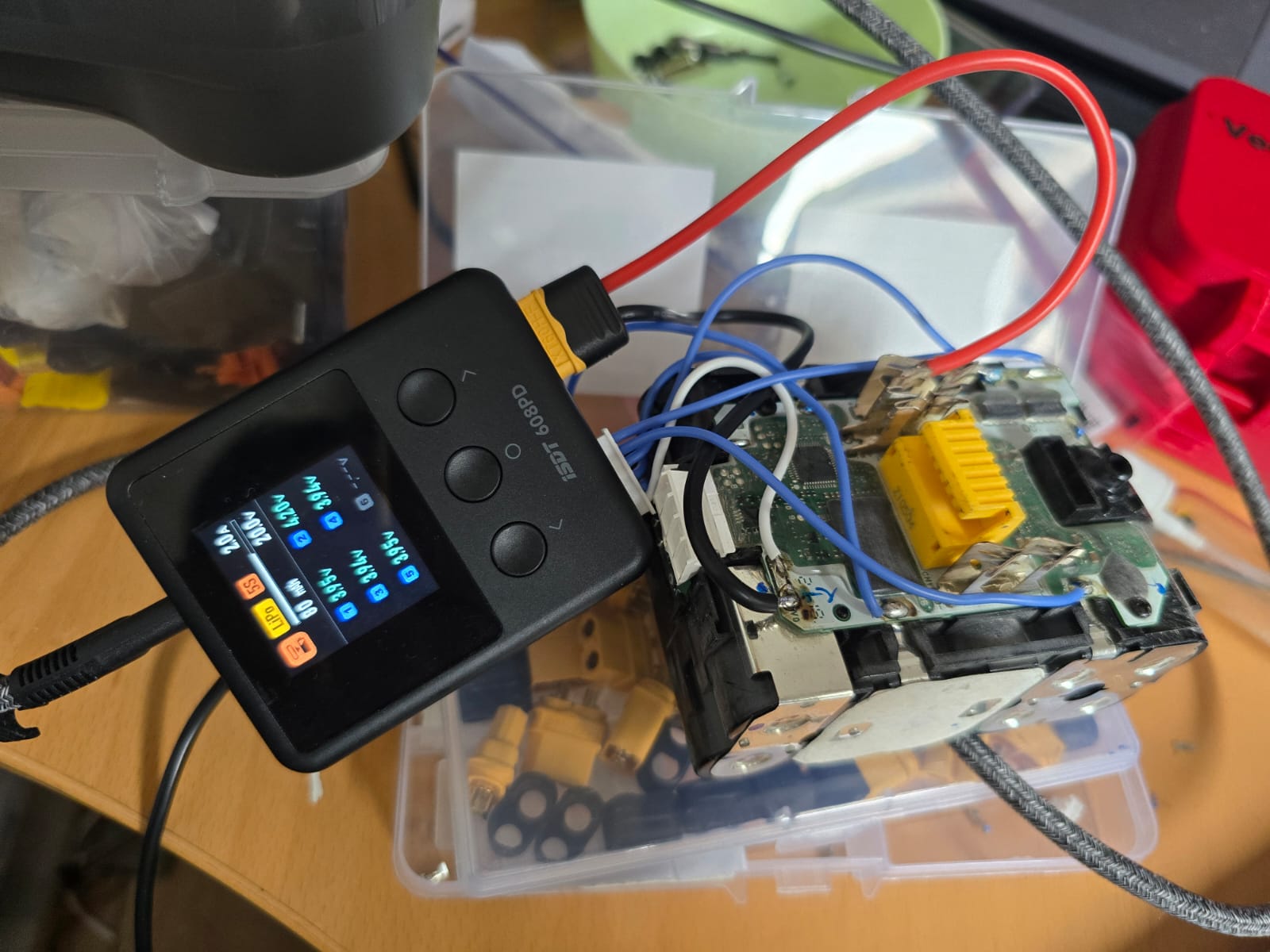

Makita battery resetting & balancing
We inspect compatible Makita battery packs, reset the protection electronics where possible, and balance the cells during servicing.
01 / In development
A compact measurement tool for the camera bag
This project explores a dedicated light meter built around the ESP32-C6. The goal is a focused, practical device that helps photographers read the scene and make exposure decisions without reaching for a phone.
From electronics and firmware to enclosure and user experience, the project brings Nikitron's end-to-end product development approach into one small instrument.
VIEW OPEN-SOURCE PROJECT

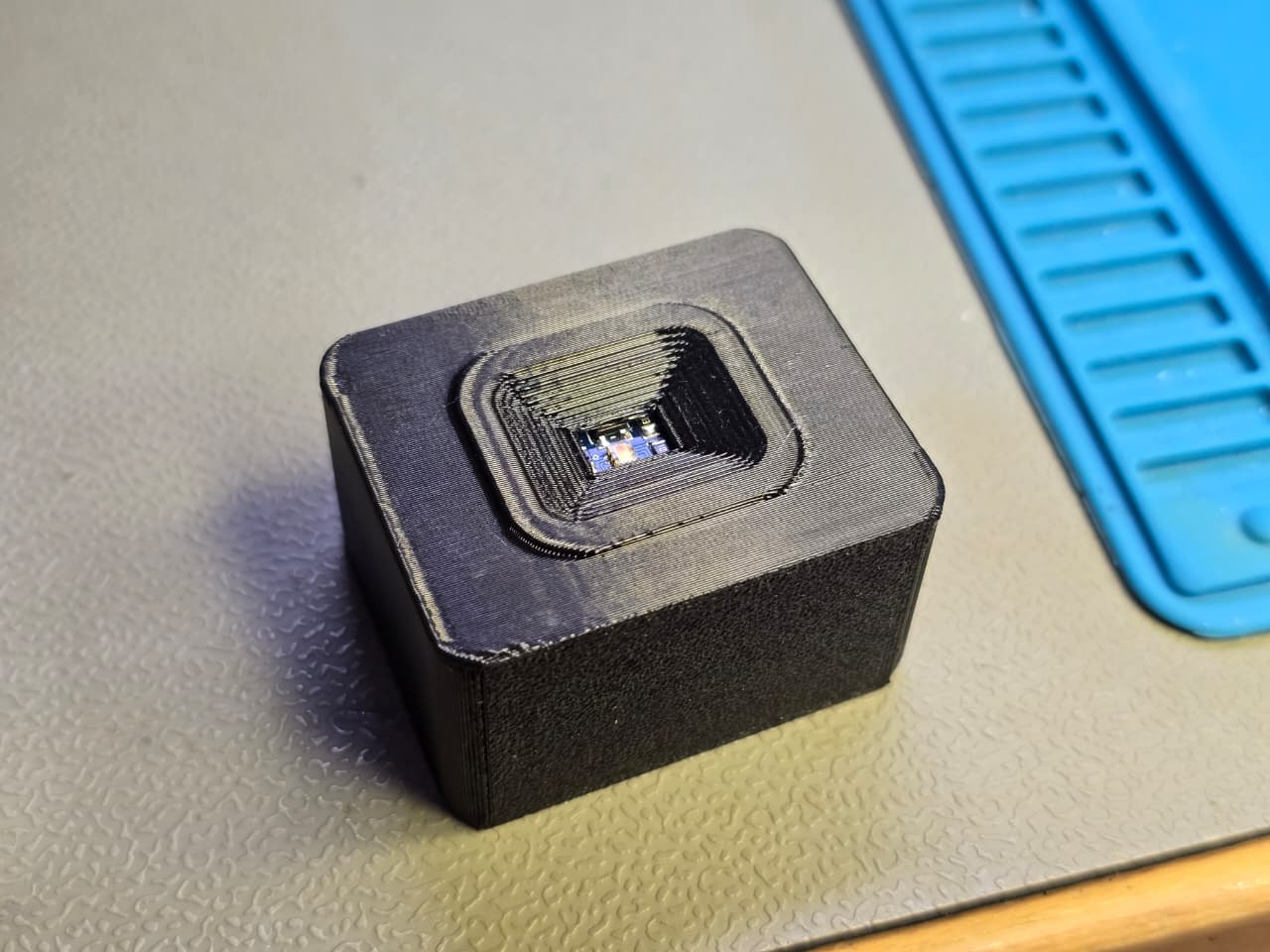

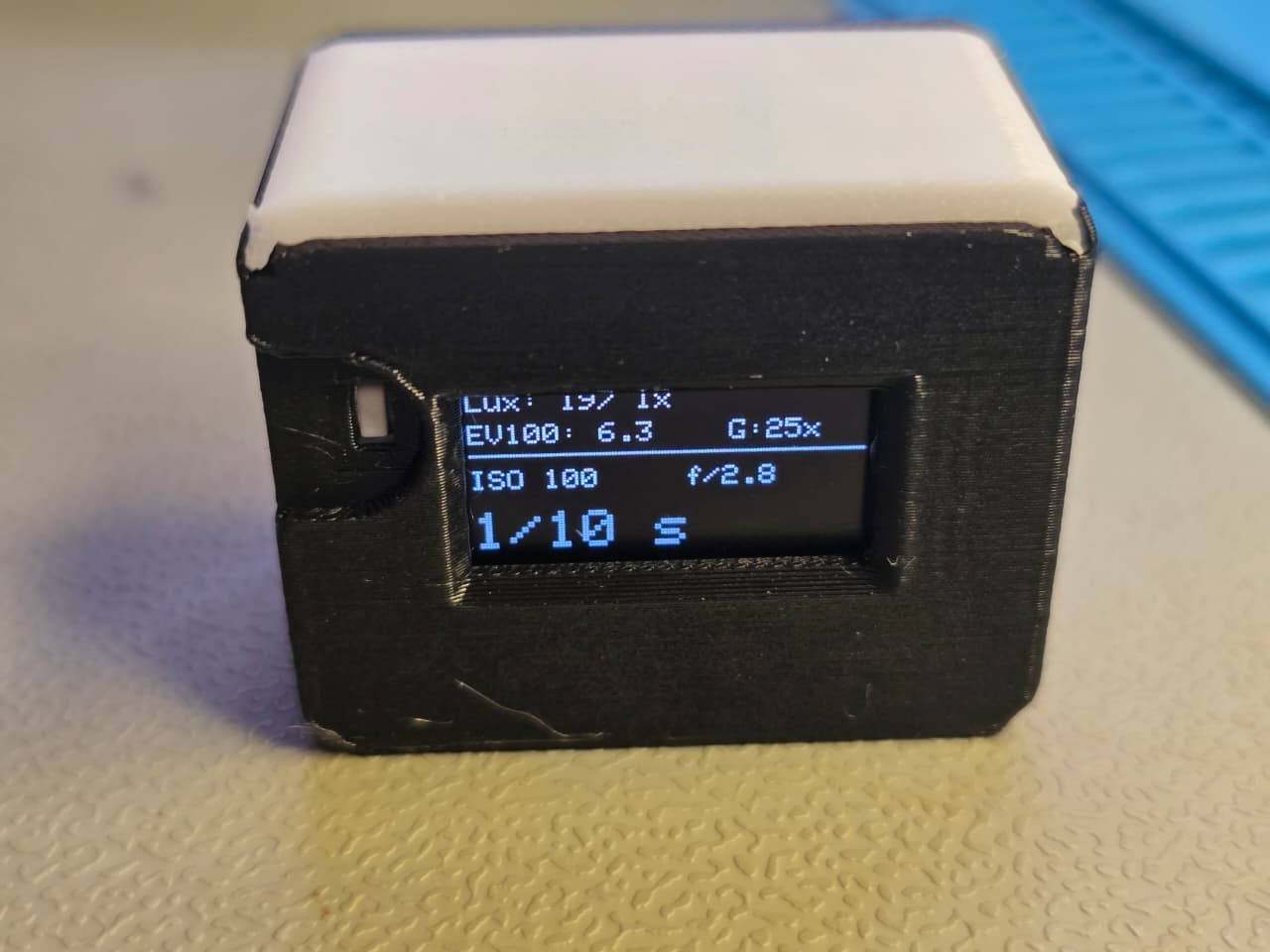

Enclosure prototype
02 / The prototype
A light meter made to be used
The enclosure is one prototype stage; the board photos below show the electronics during bench development.

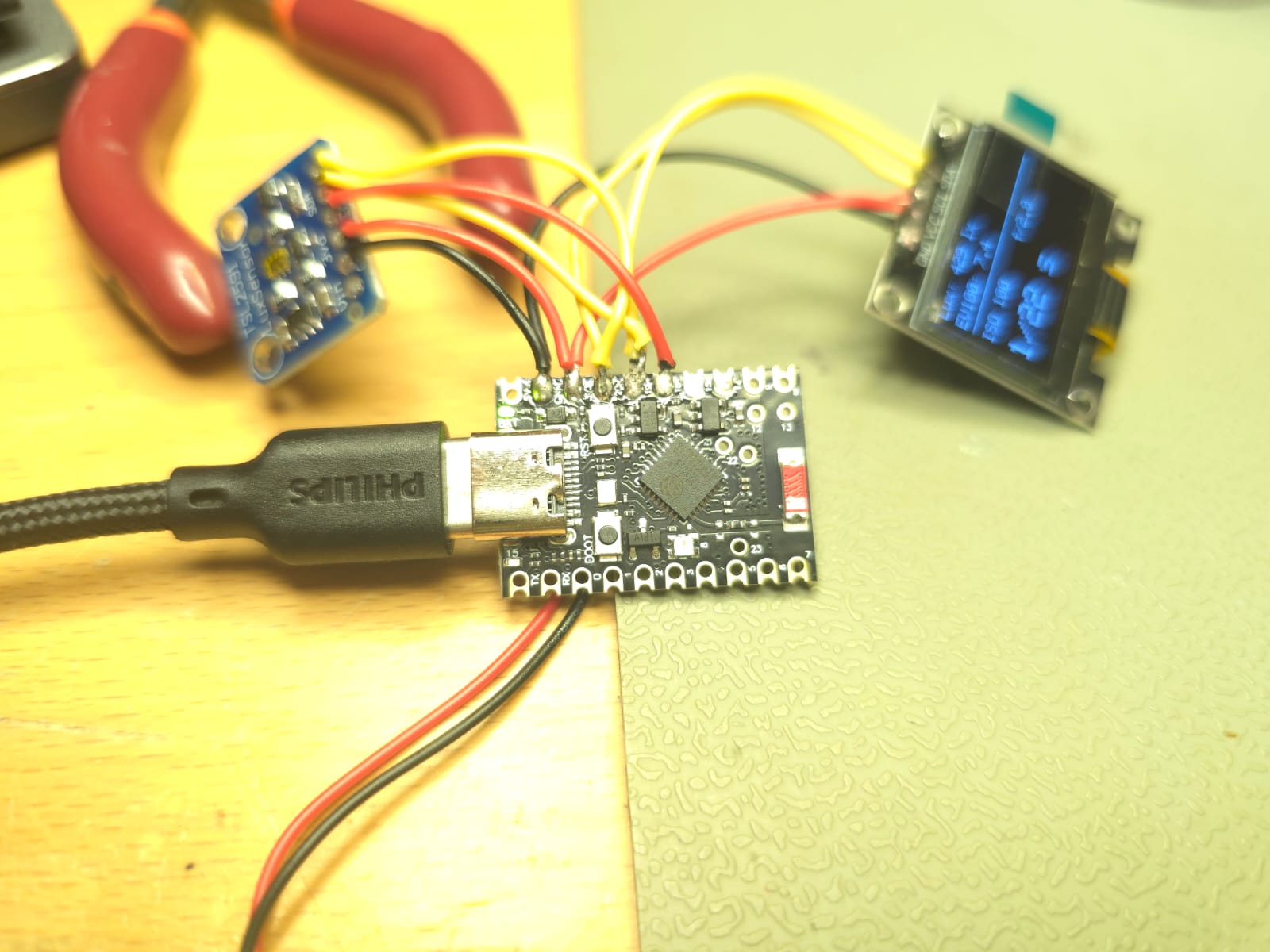

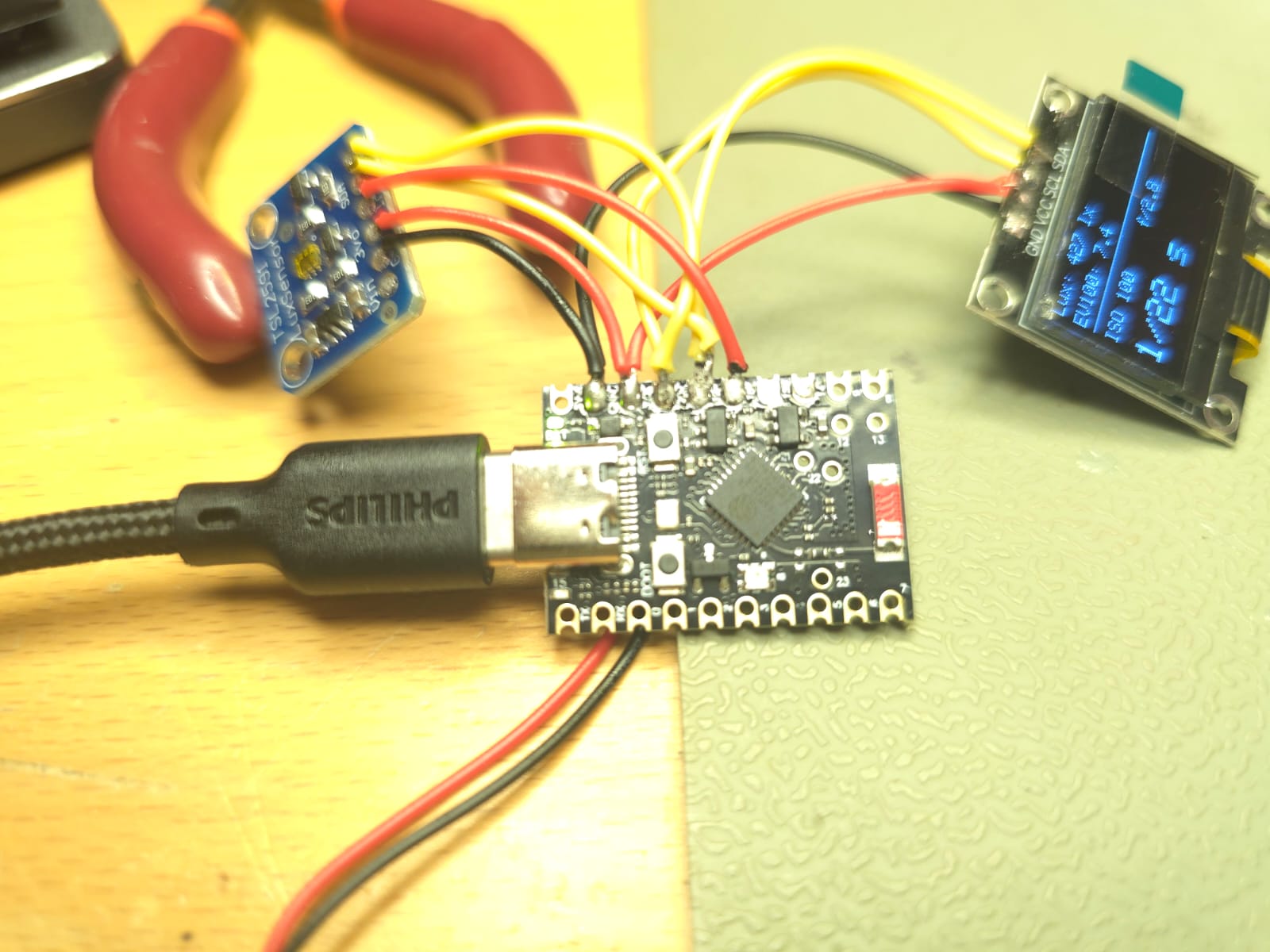

Prototype board
Sensor, display, and ESP32-C6 on the bench
03 / Project focus
Hardware with a clear job
Light measurement
A dedicated workflow for reading the available light and turning it into useful exposure guidance.
ESP32-C6 platform
The project uses the ESP32-C6 as the foundation for connected, capable embedded product development.
Built as a product
Electronics, firmware, industrial design, and usability are considered together from the first prototype.
04 / Wiring reference
ESP32-C6 pin map
The connections below match the open-source implementation.
ESP32-C6
controller
OLED
0x3C SDA GPIO 19 SCL GPIO 18 I2C
100 kHz
0x3C SDA GPIO 19 SCL GPIO 18 I2C
100 kHz
WAKE
BUTTON GPIO 3 normally open GND
BUTTON GPIO 3 normally open GND
RTC GPIO stays powered during deep sleep for the internal pull-up.
| Signal | Connection | Configuration |
|---|---|---|
| I2C SDA | GPIO 19 | 100000 Hz |
| I2C SCL | GPIO 18 | |
| Wake button | GPIO 3 to GND | Normally open |
| OLED address | I2C 0x3C | 7-bit address |
Sleep wake: the RTC GPIO domain stays powered so the internal pull-up remains active during deep sleep. No external pull-up is required.
Timing: hold the button for 1200 ms to trigger sleep behavior; release stability is 300 ms.
05 / Development path
From first reading to field test
01
Define the measurement experience and camera workflow.
02
Prototype the electronics and embedded firmware around the ESP32-C6.
03
Refine the enclosure, controls, and real-world usability through testing.
Second project

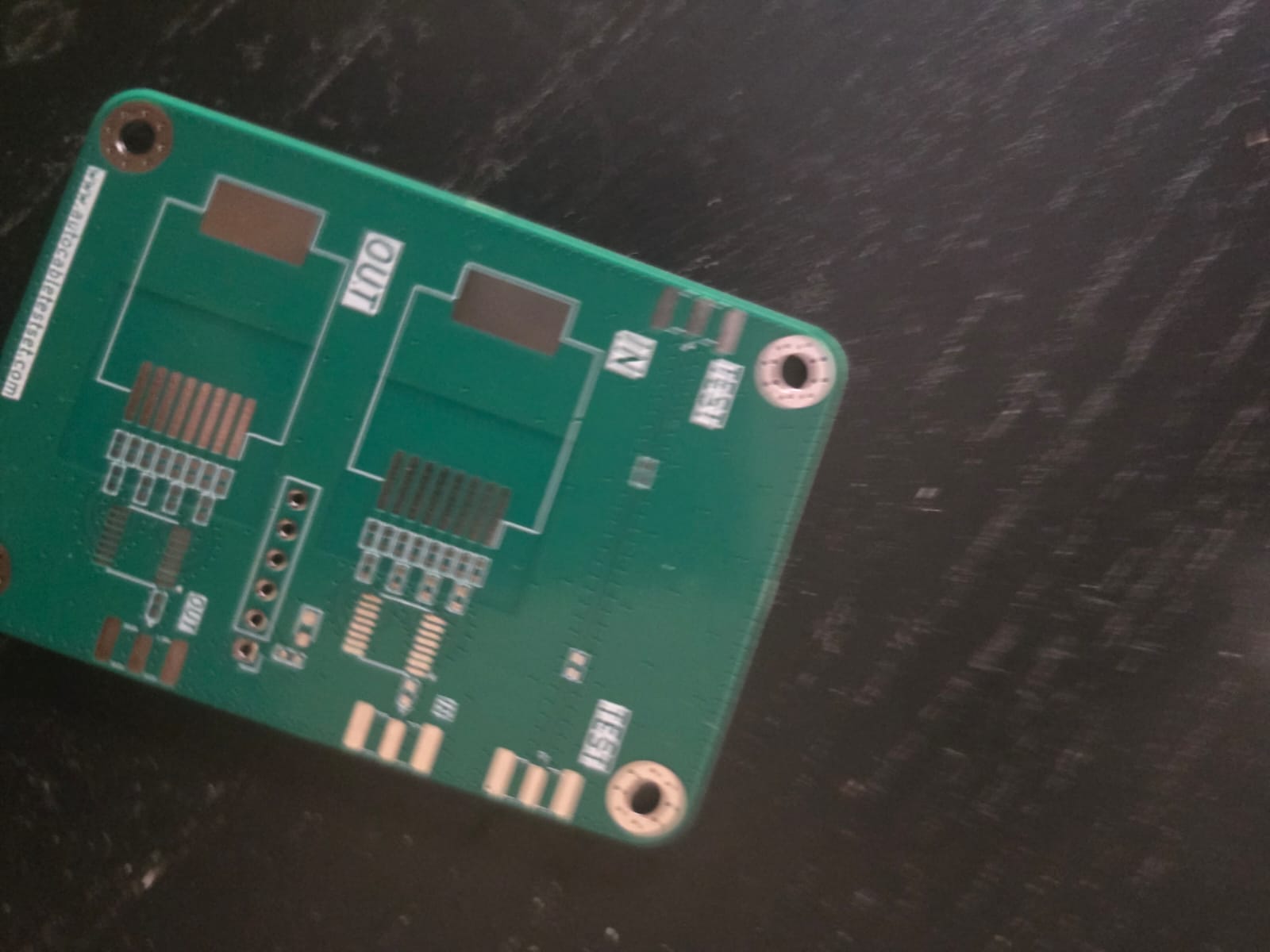

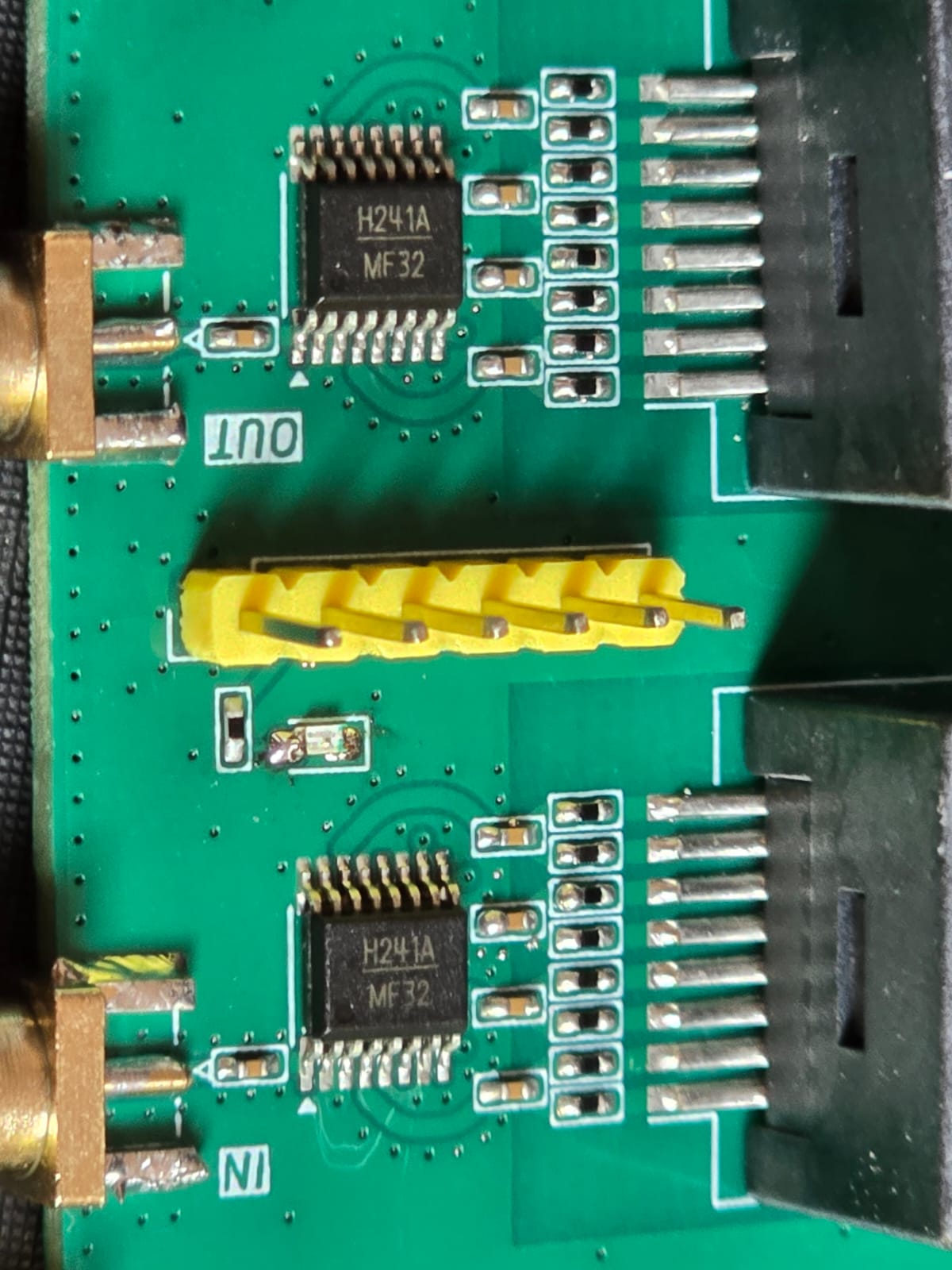

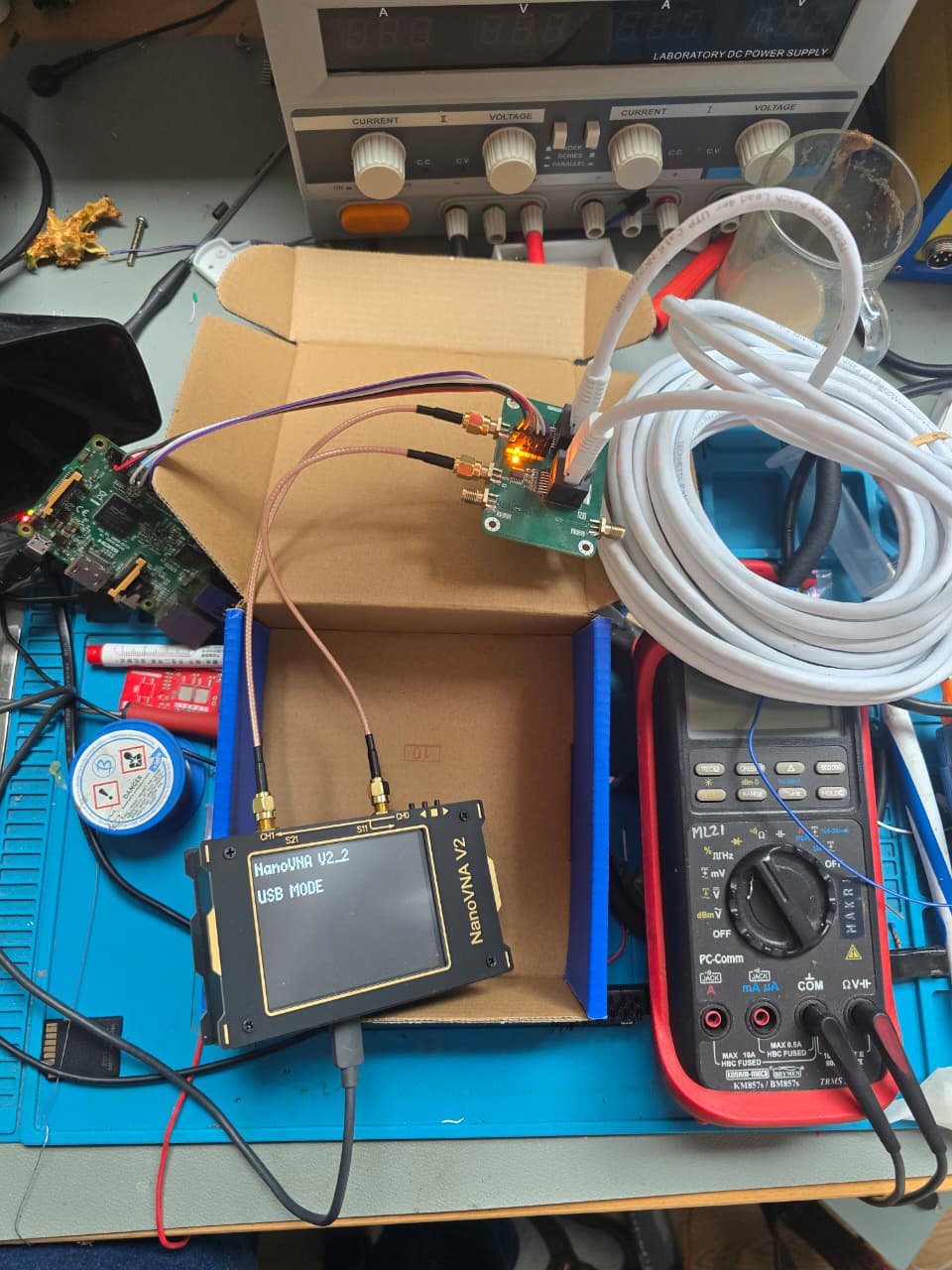

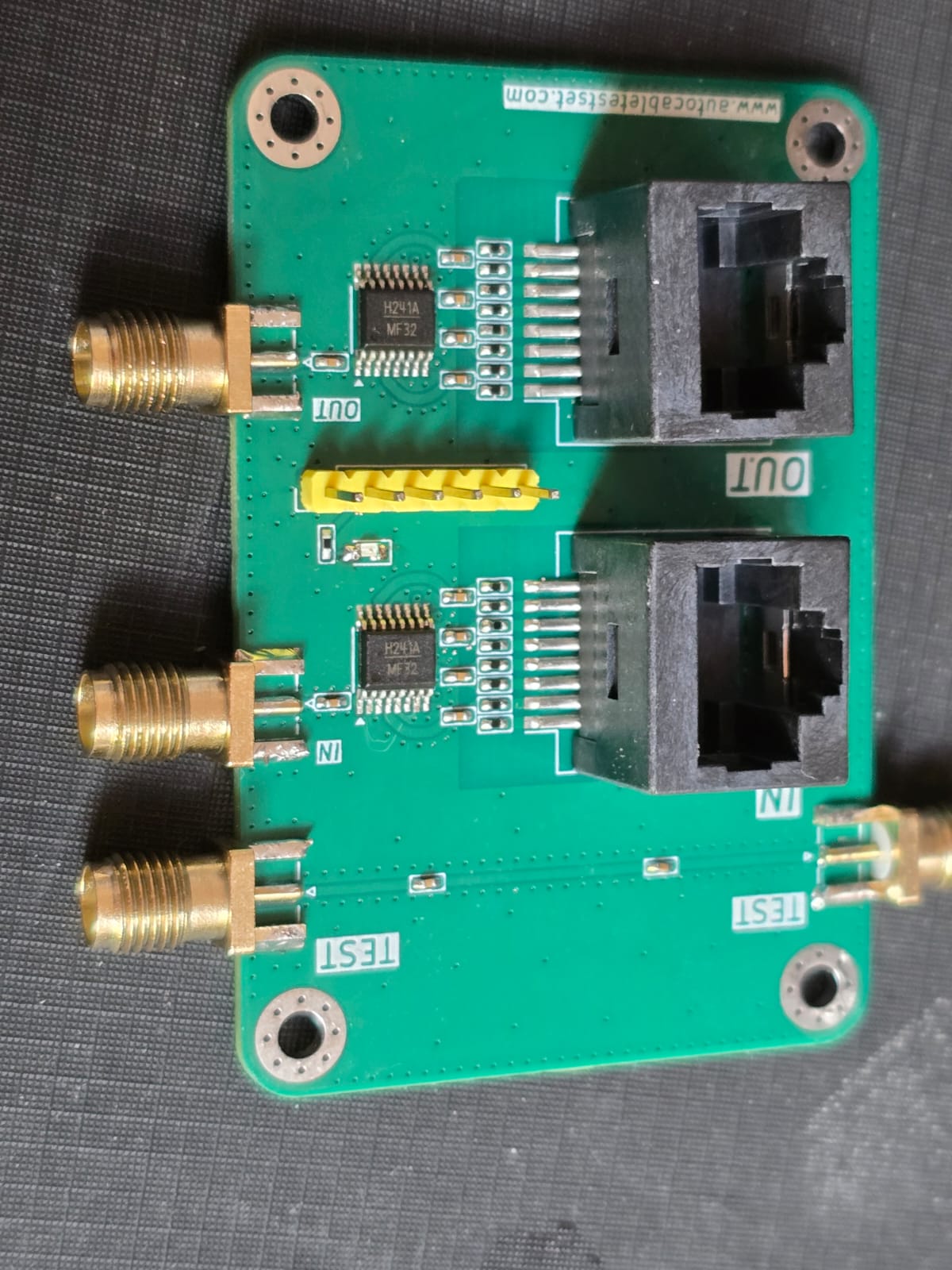

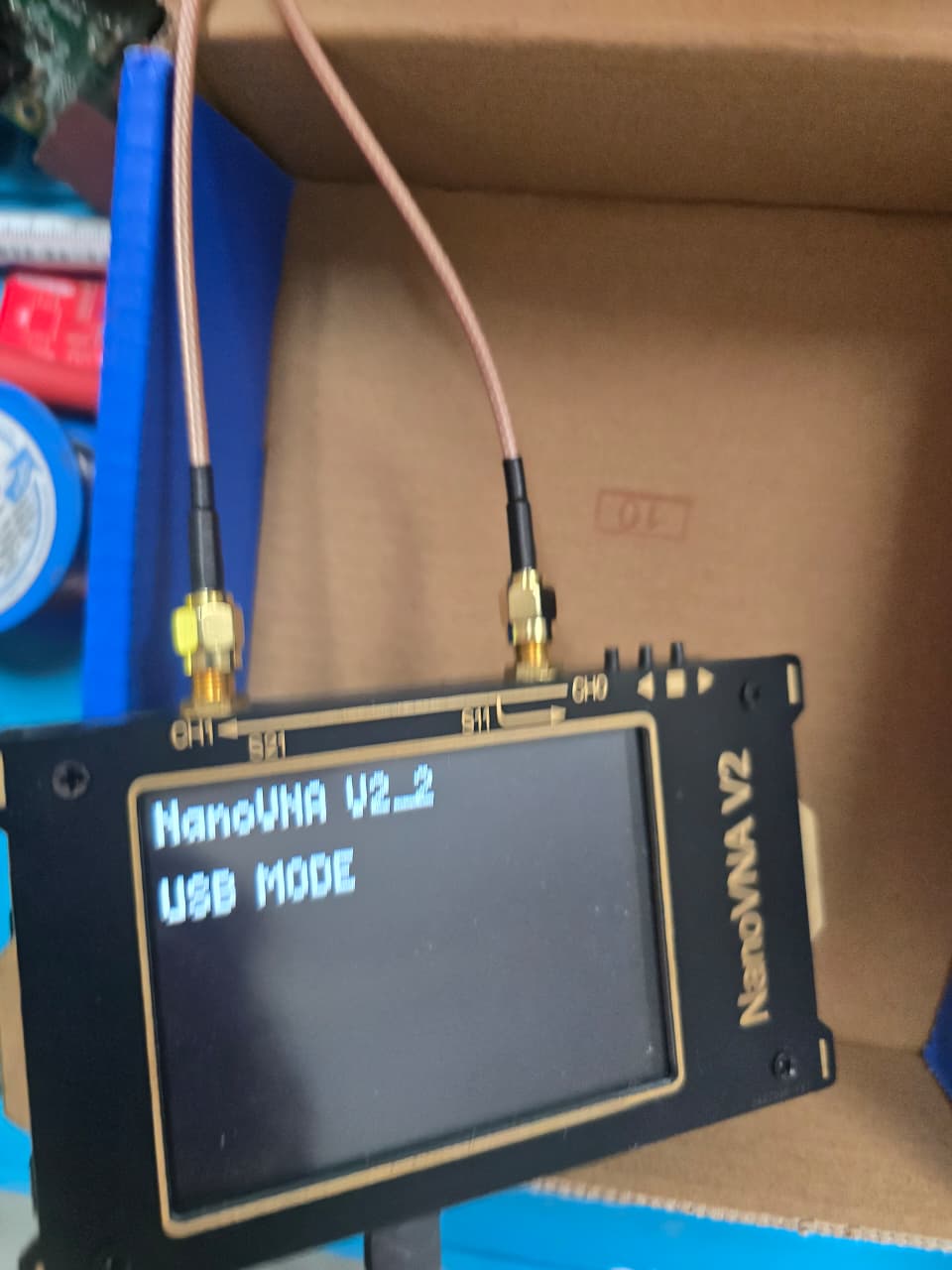

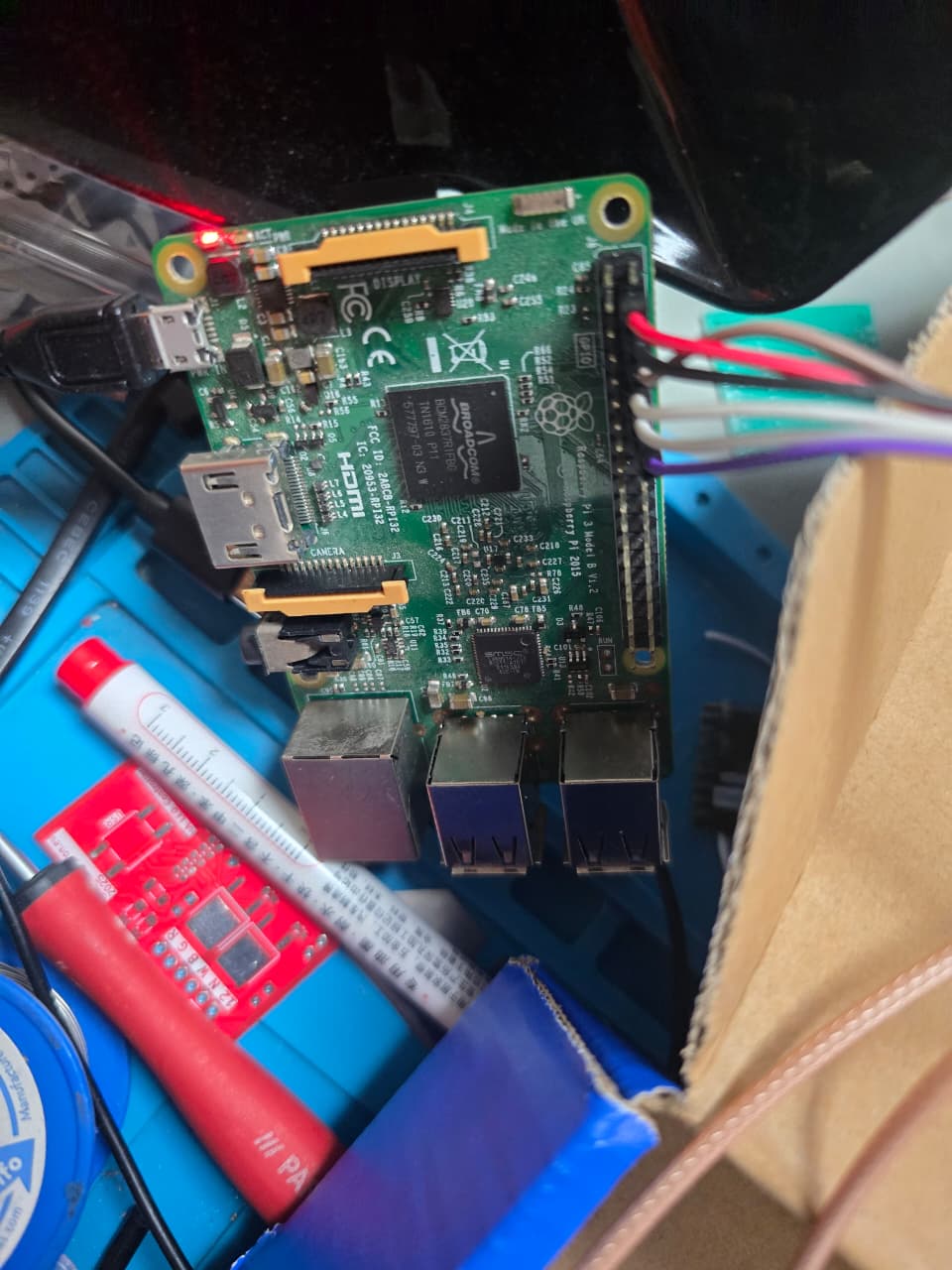

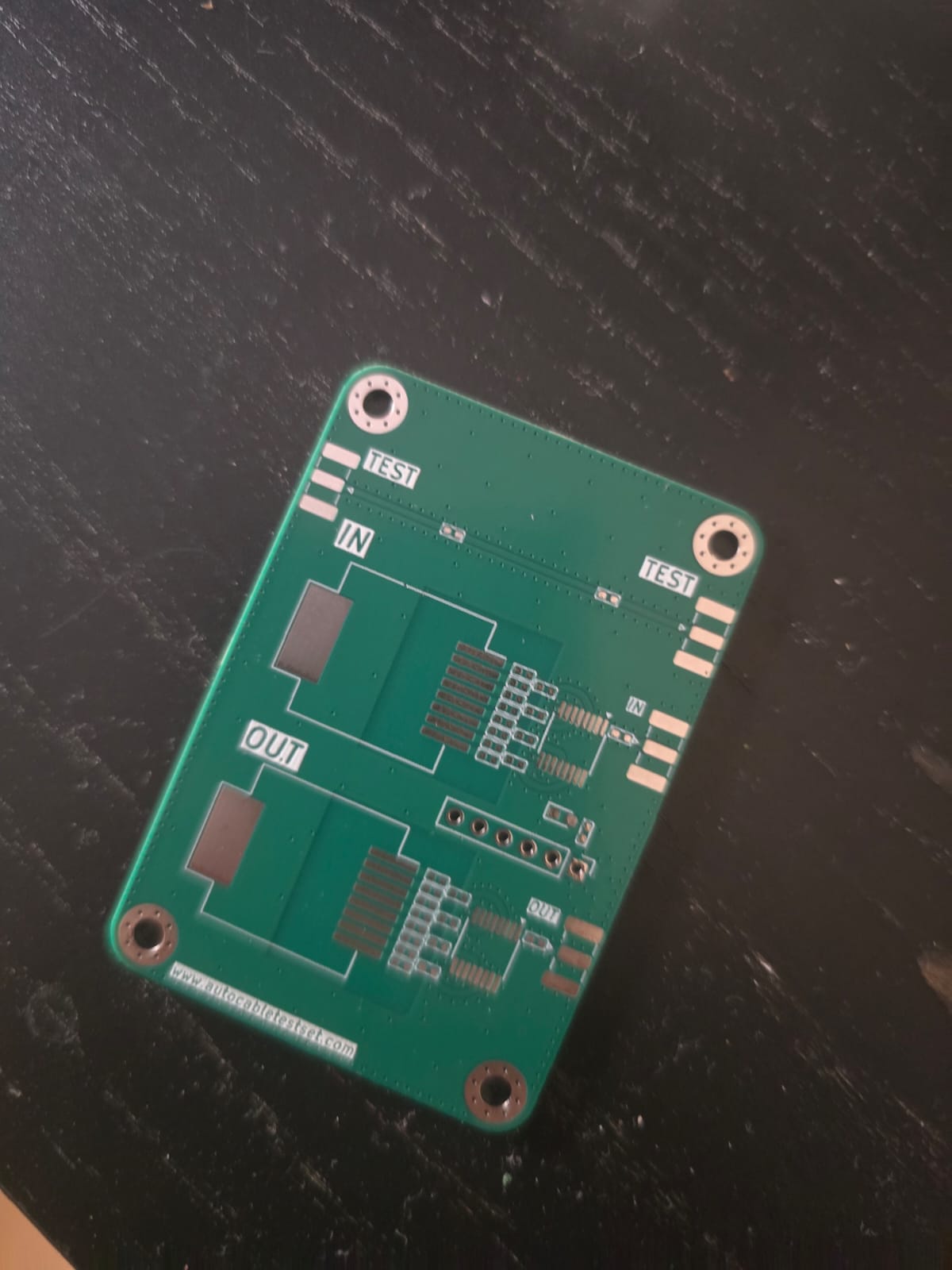

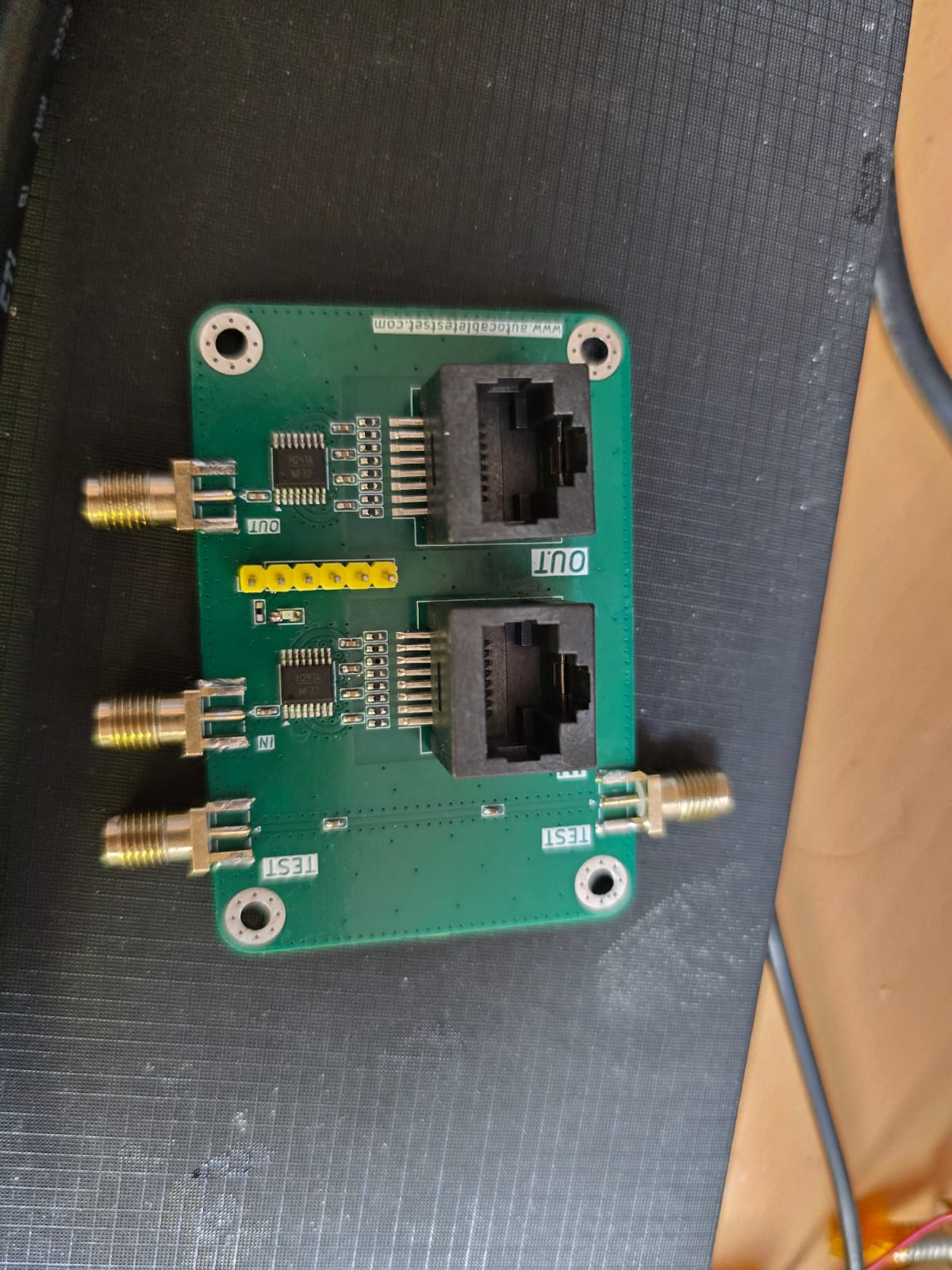

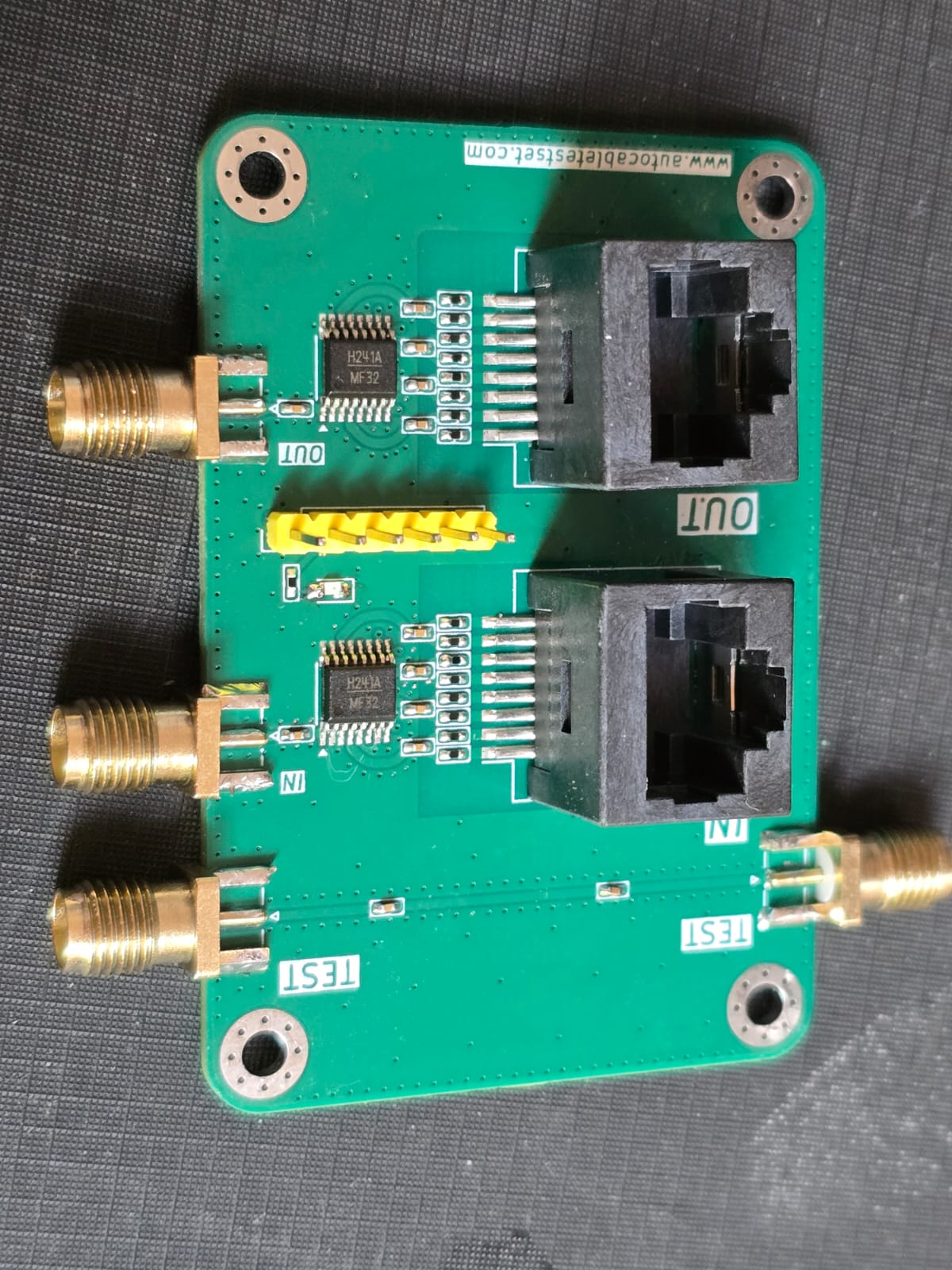

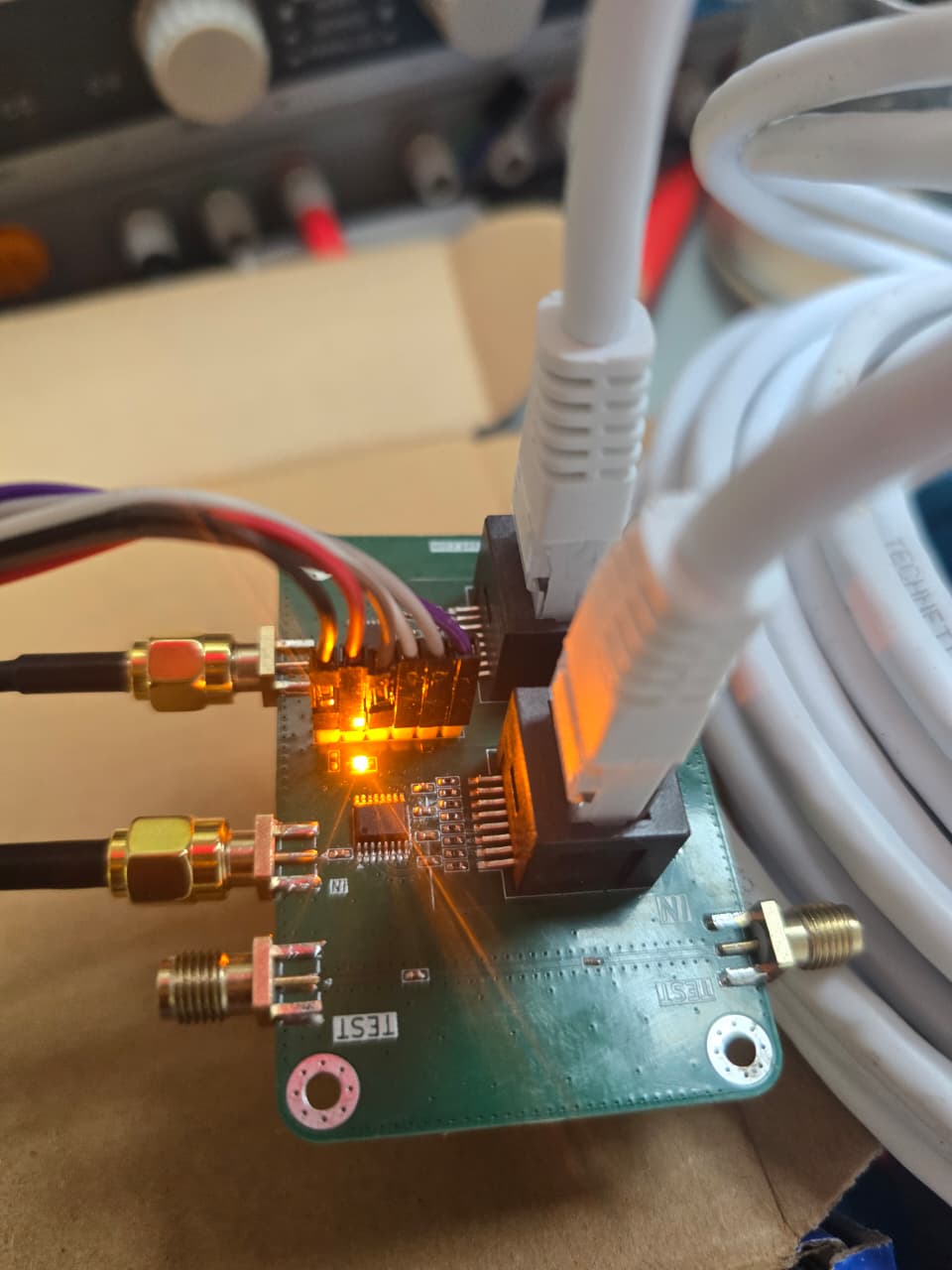

Characteristic impedance measurement
A measurement setup combining embedded control, test fixtures, switching, and precision reference loads for high-frequency characterization.
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
One-off build

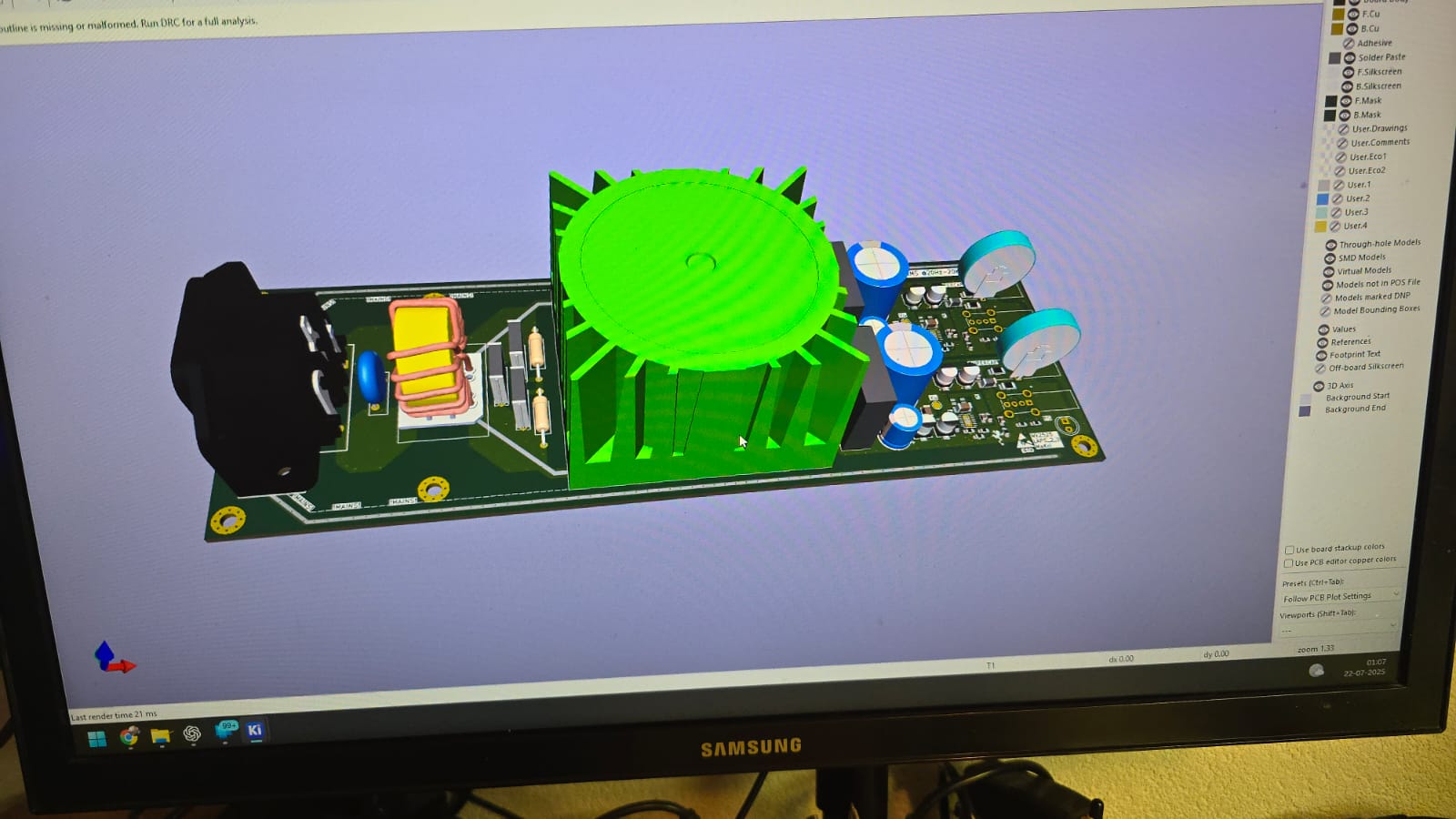

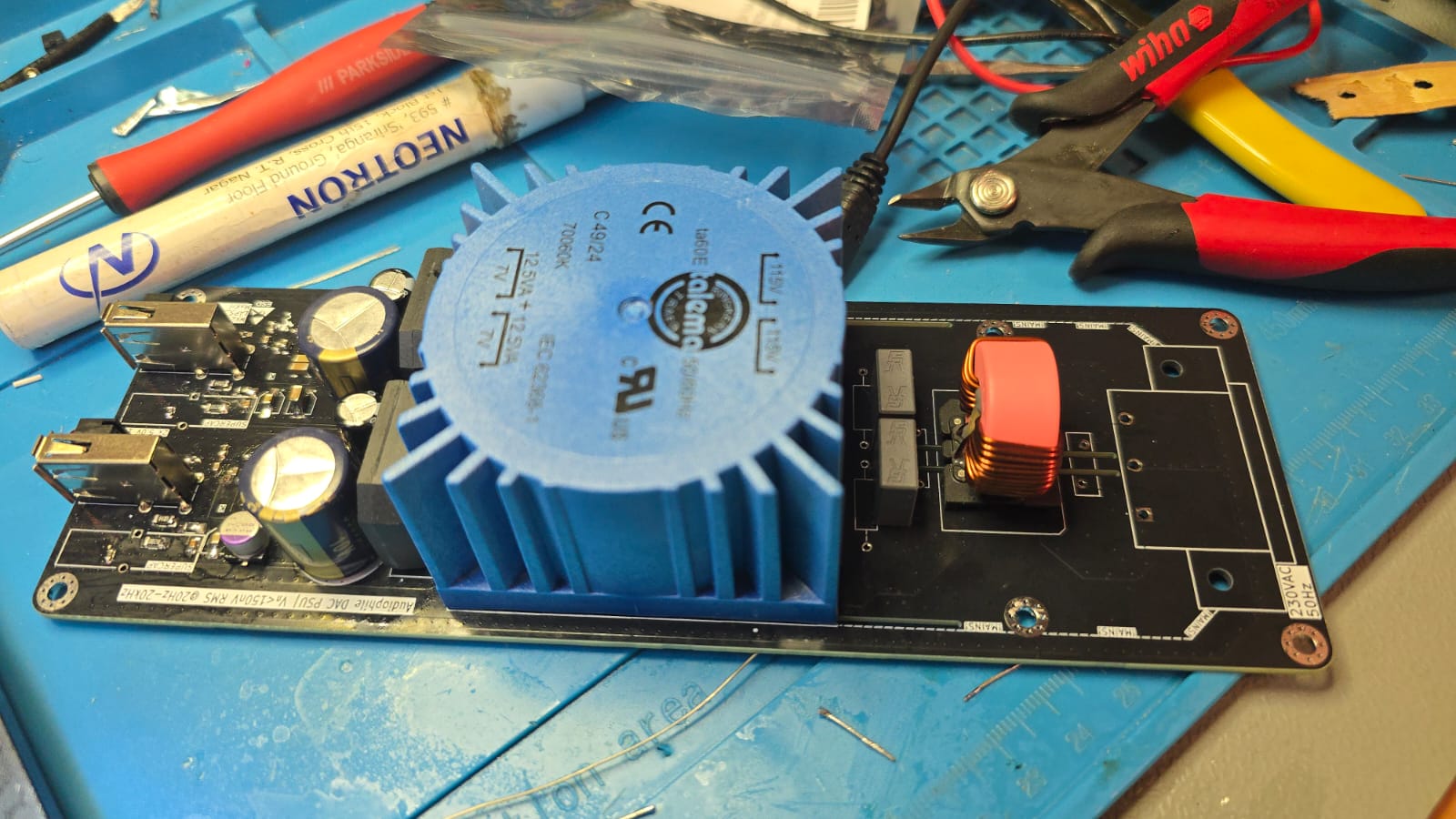

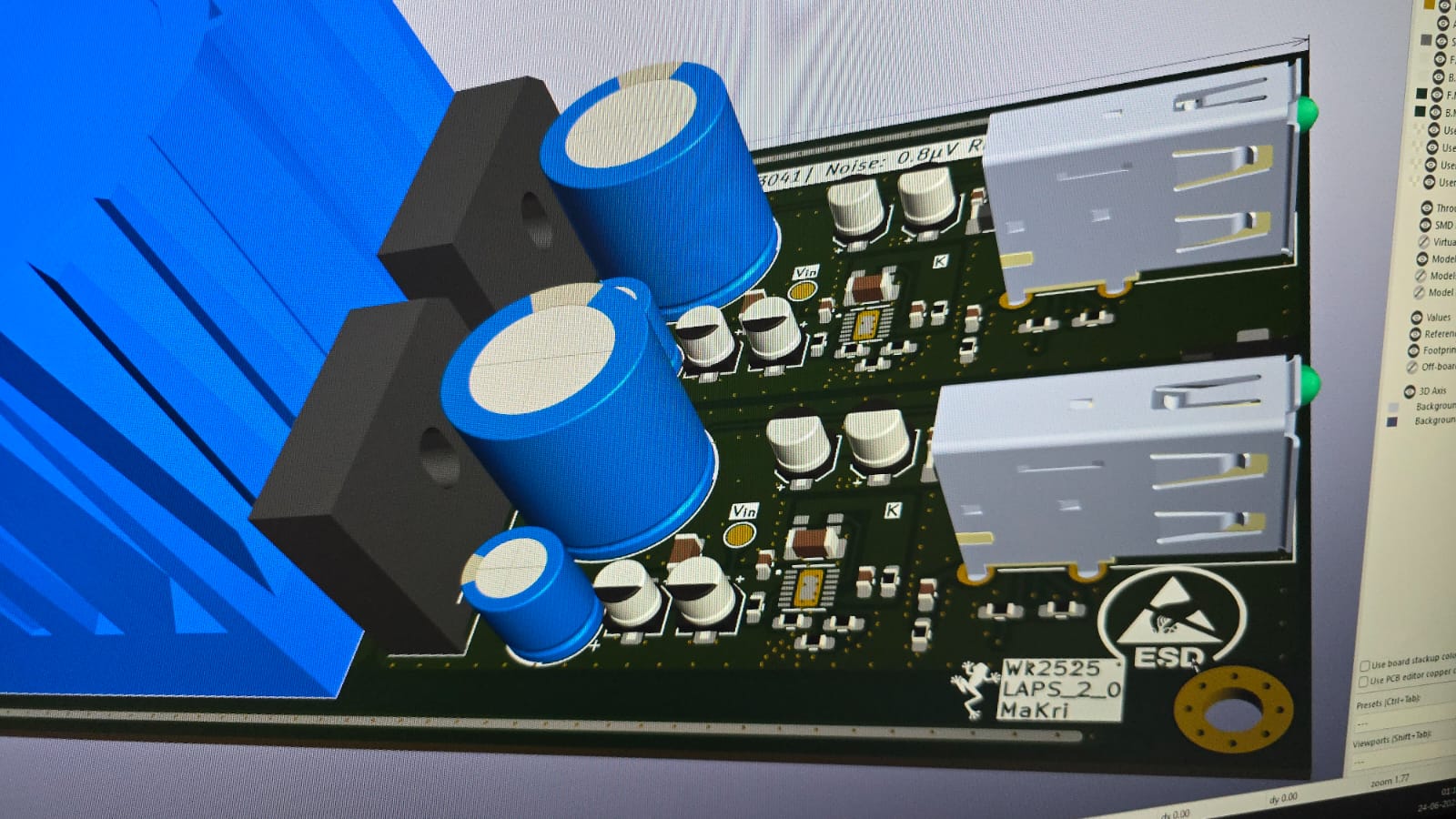

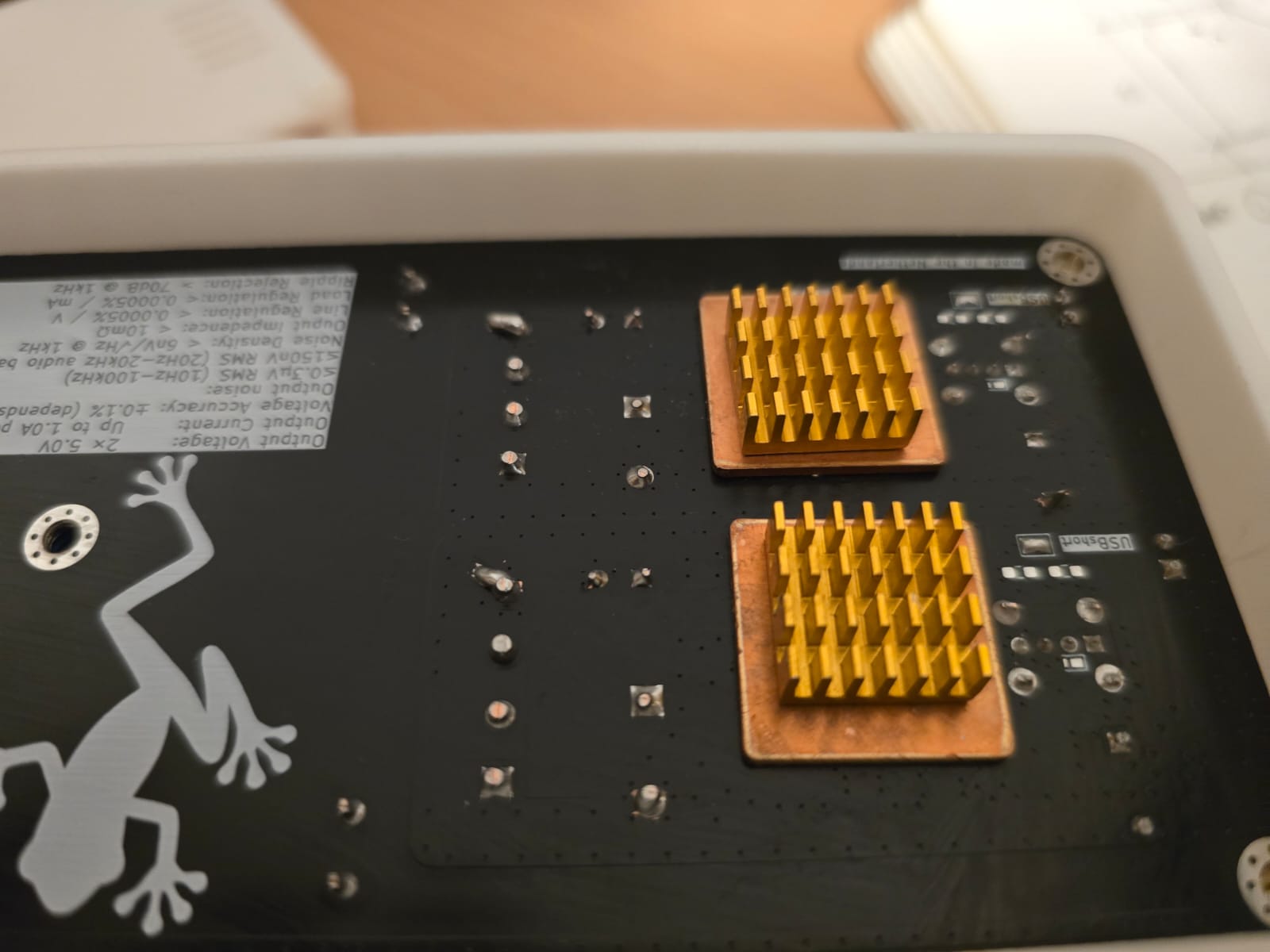

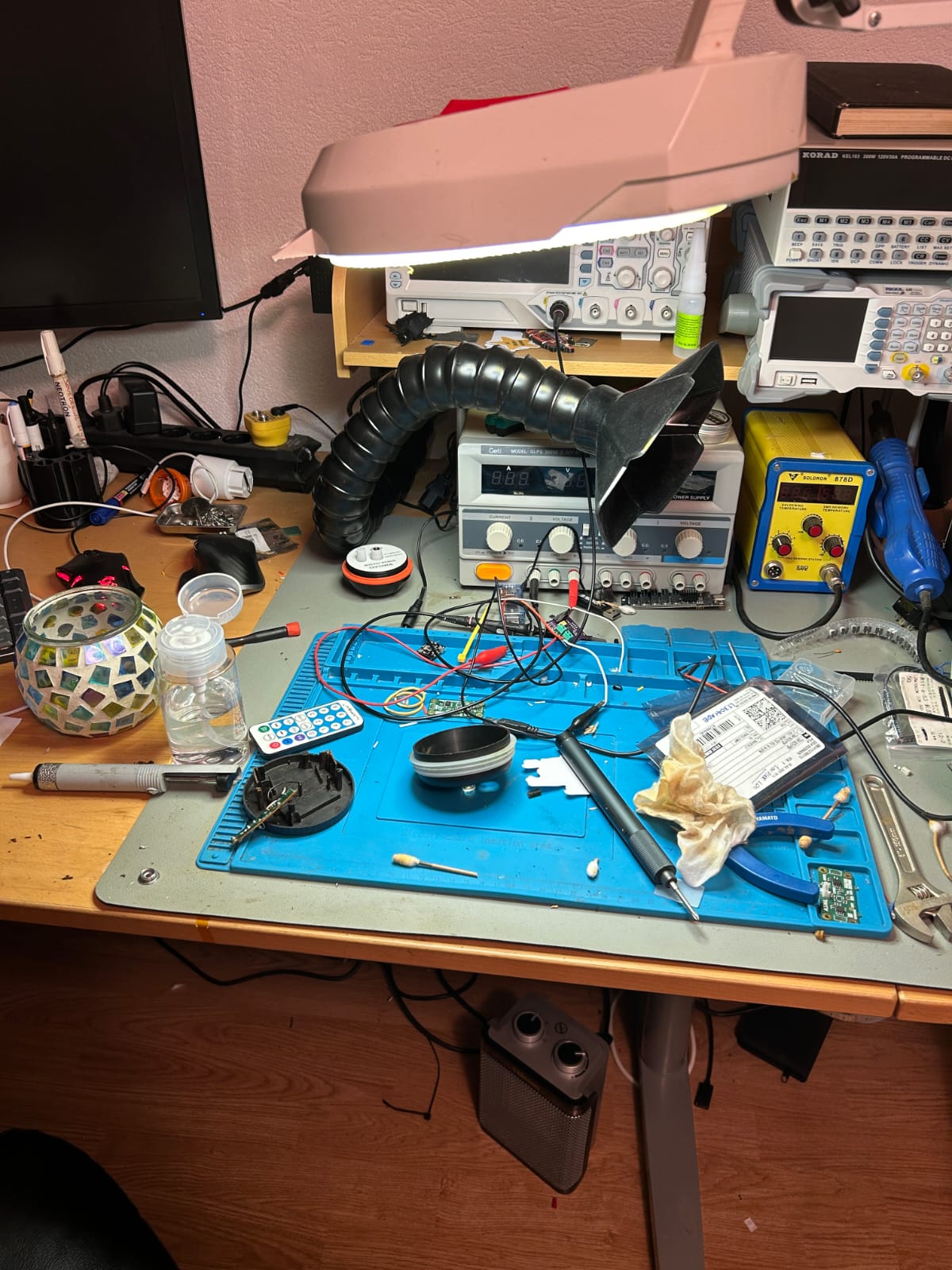

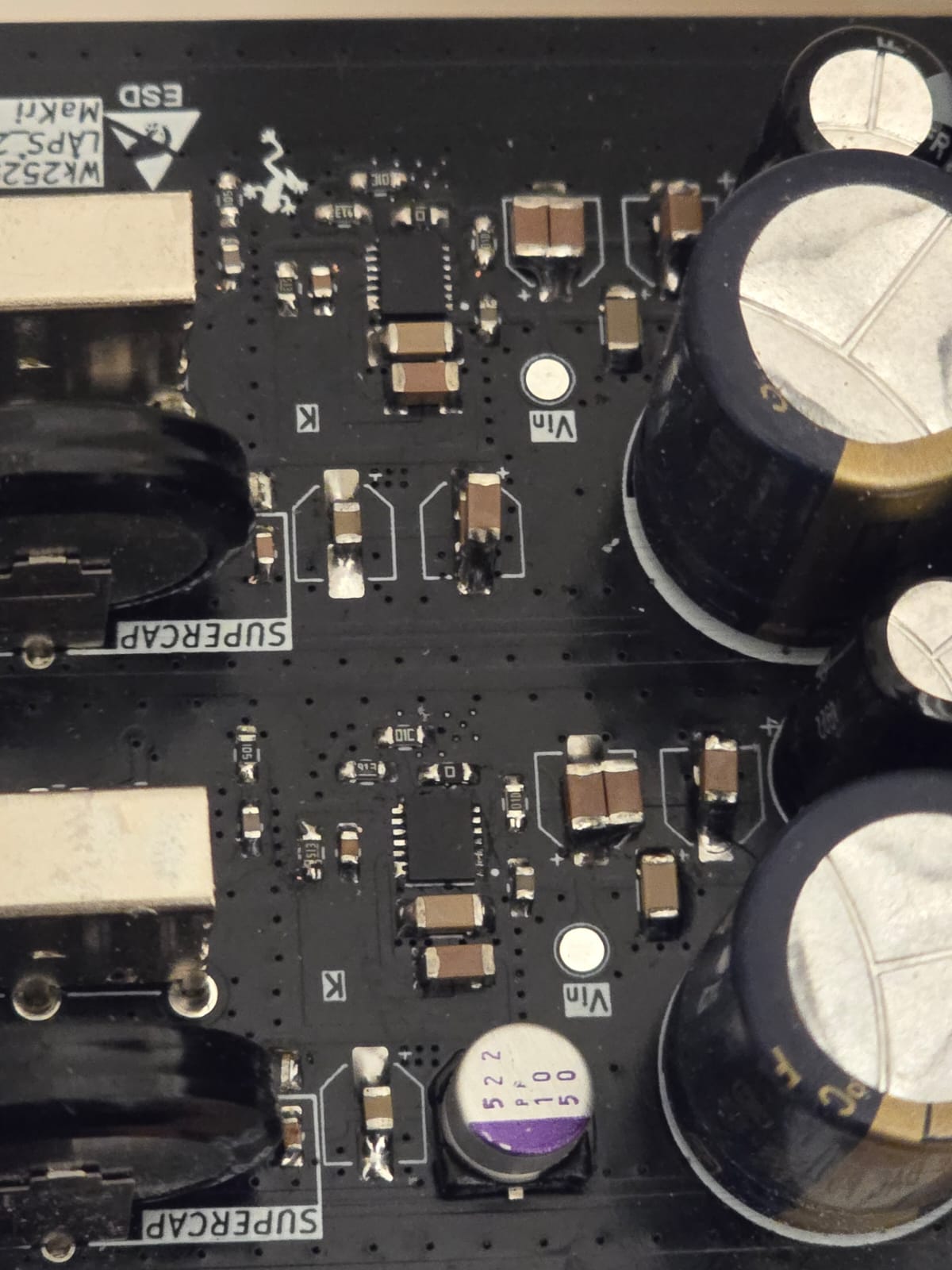

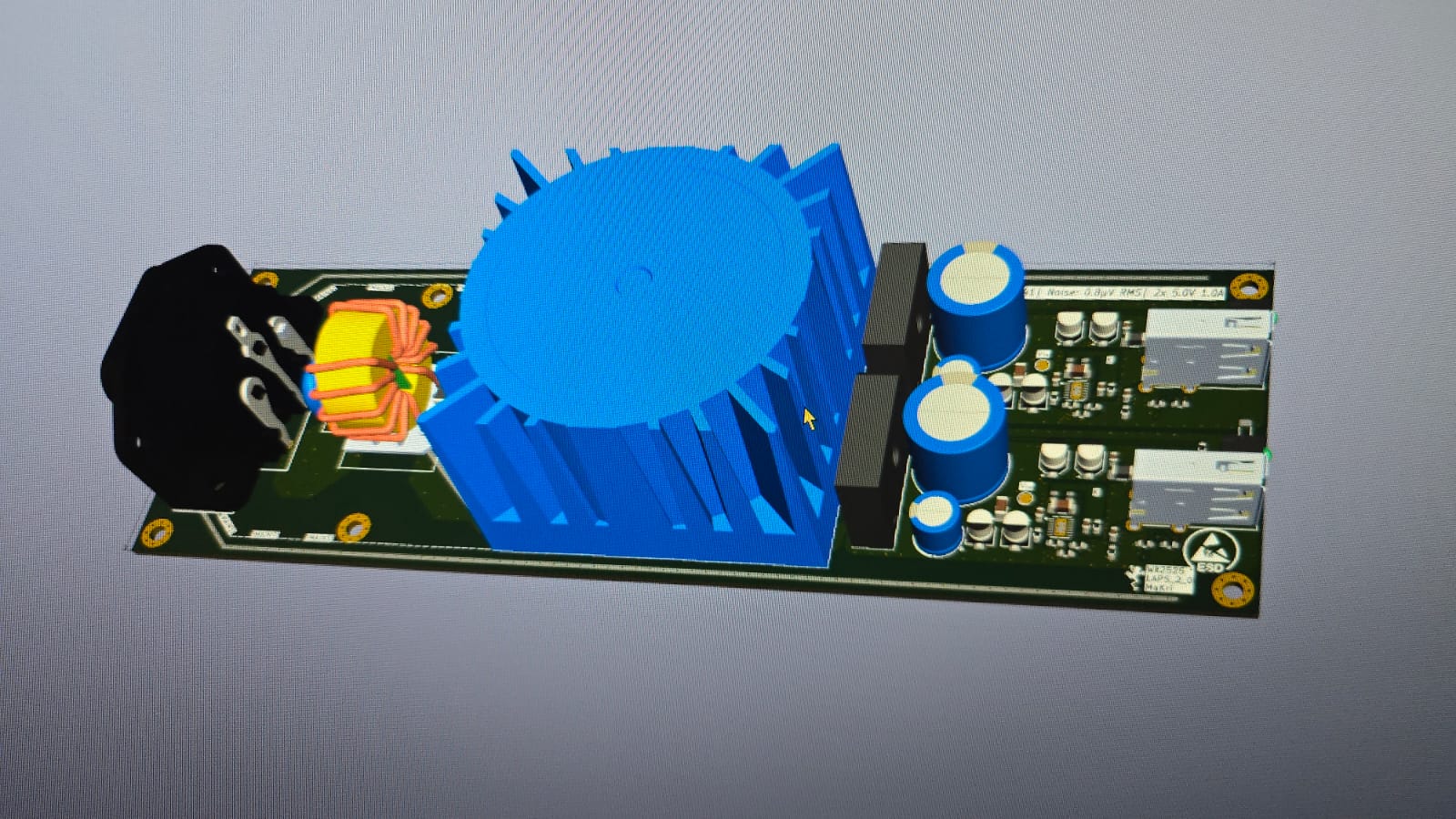

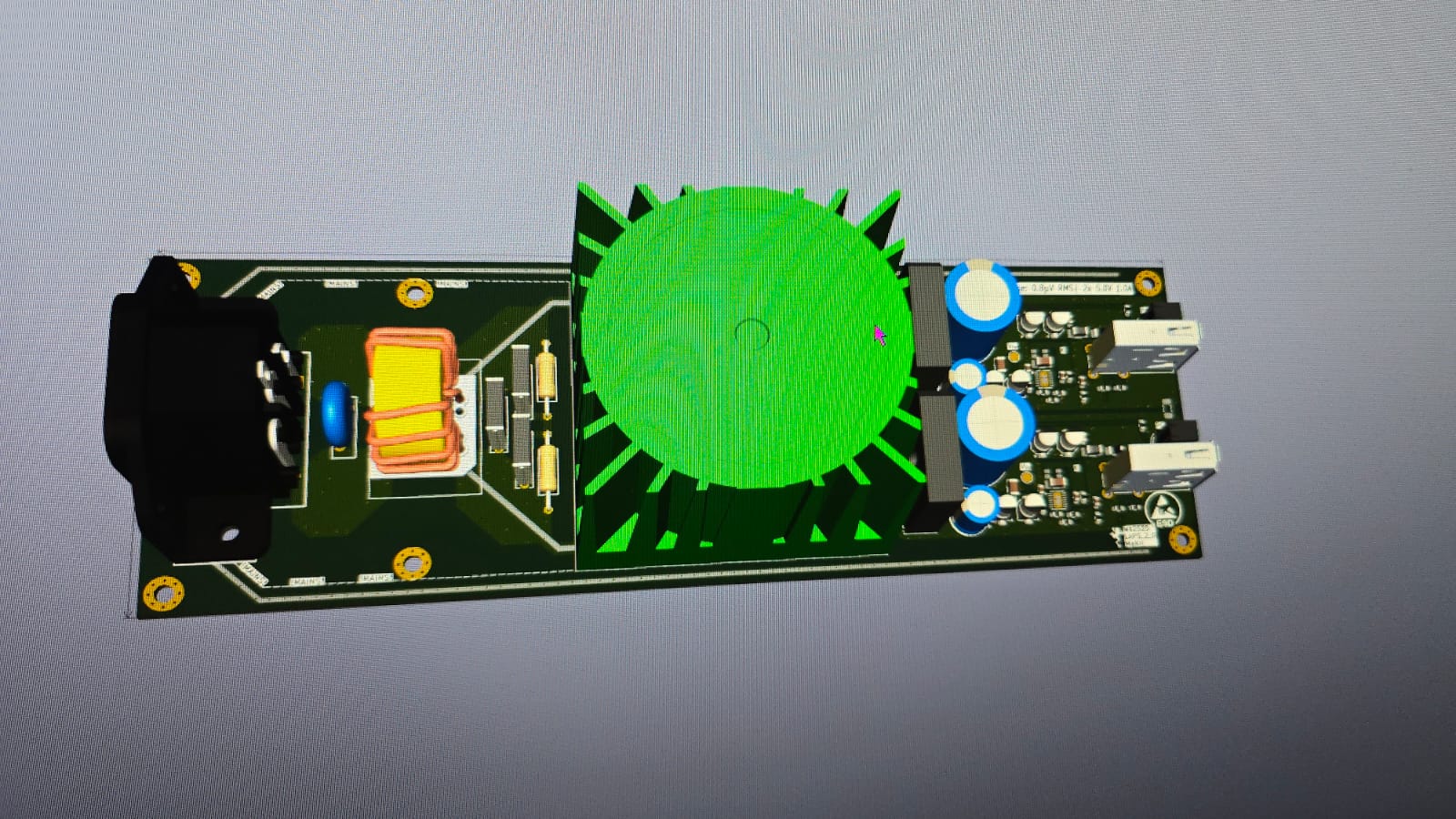

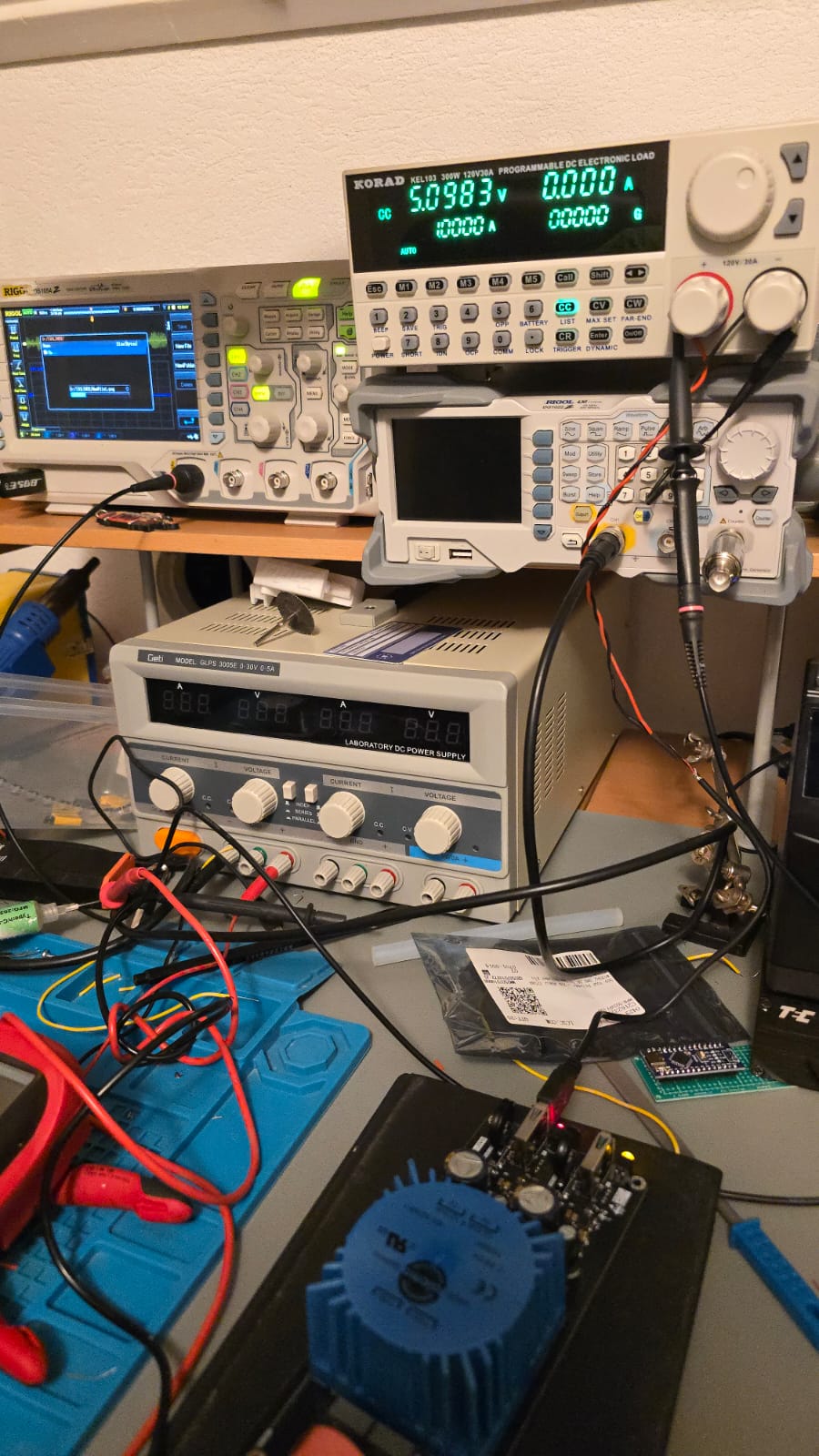

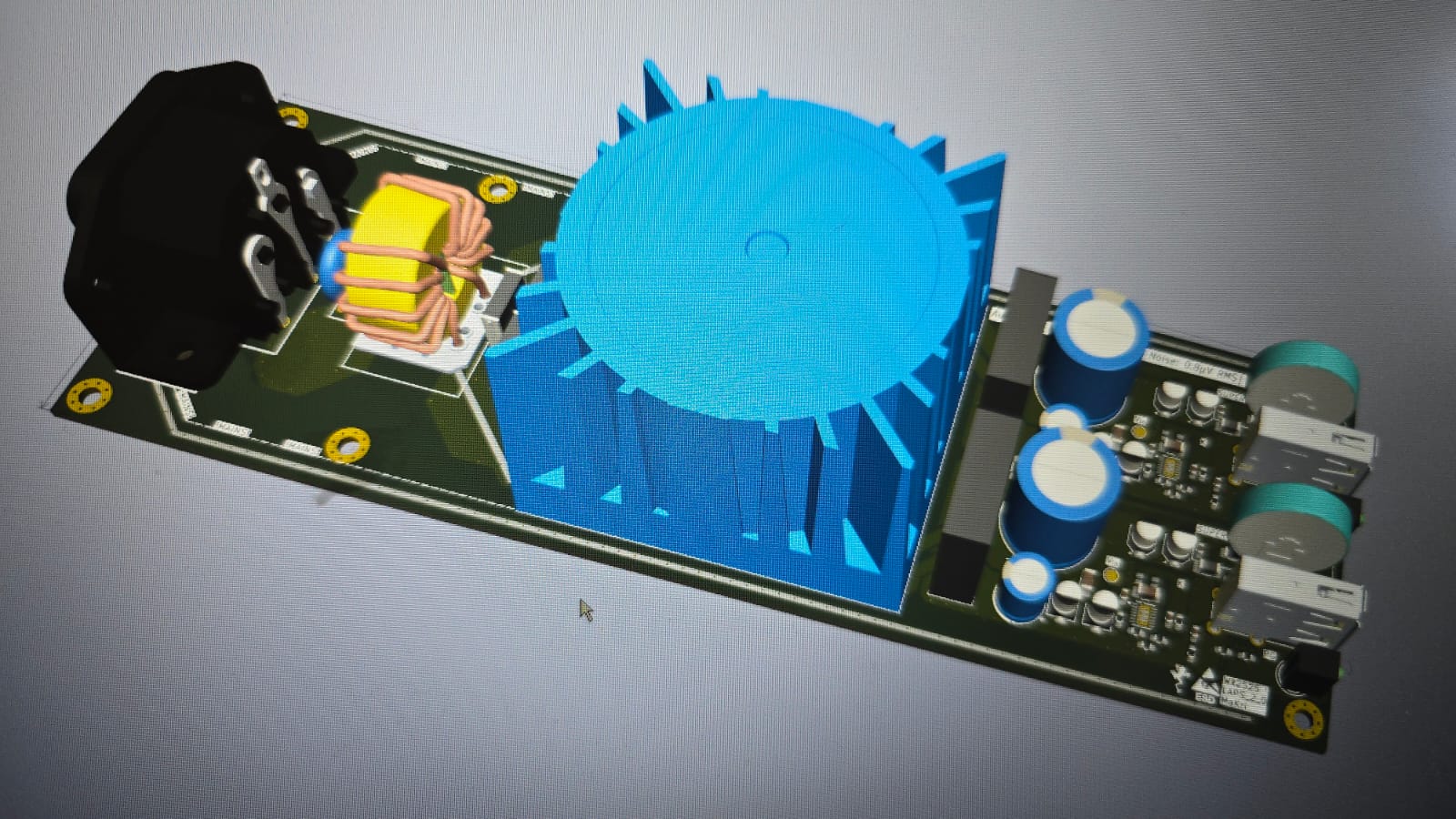

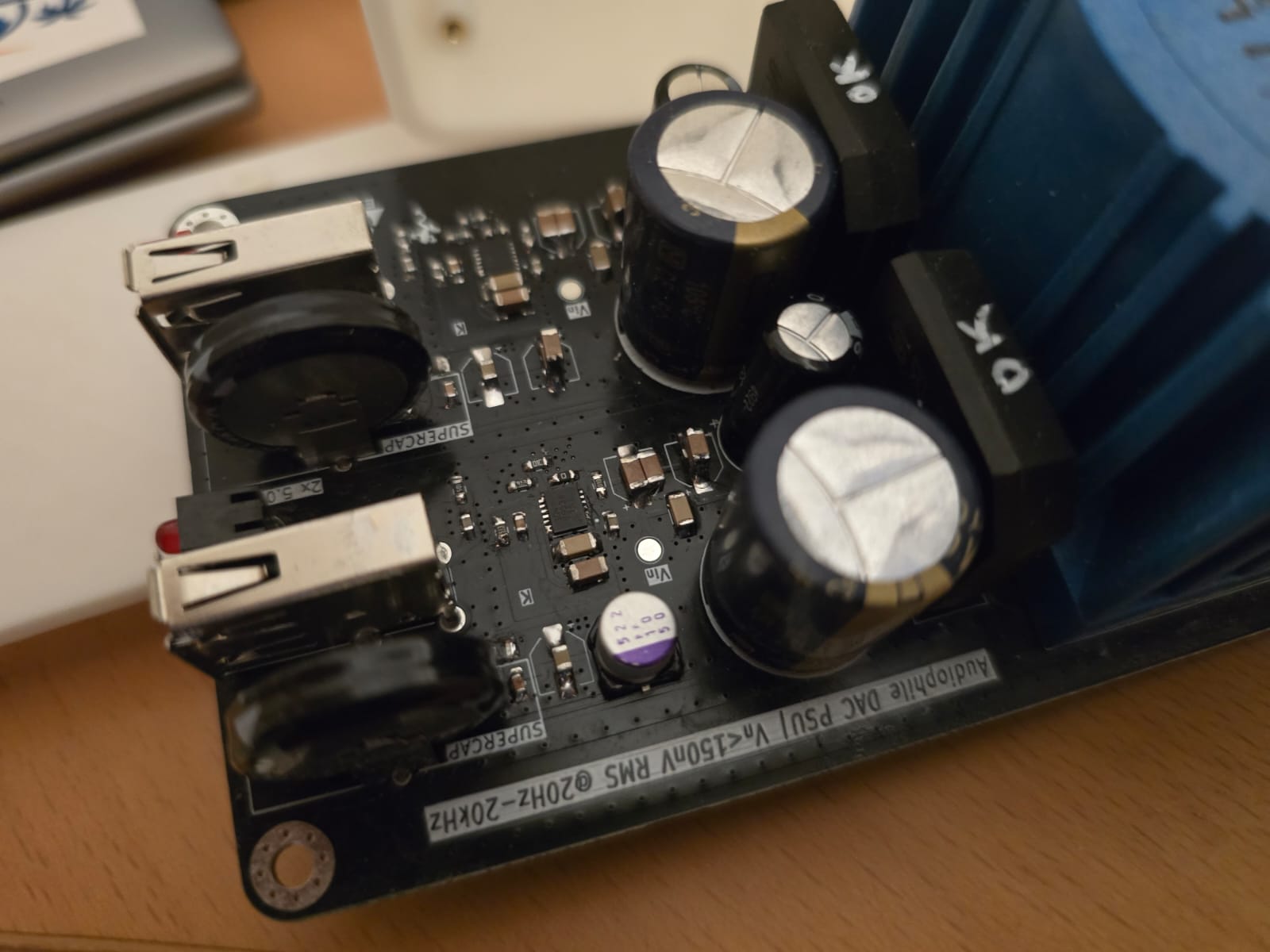

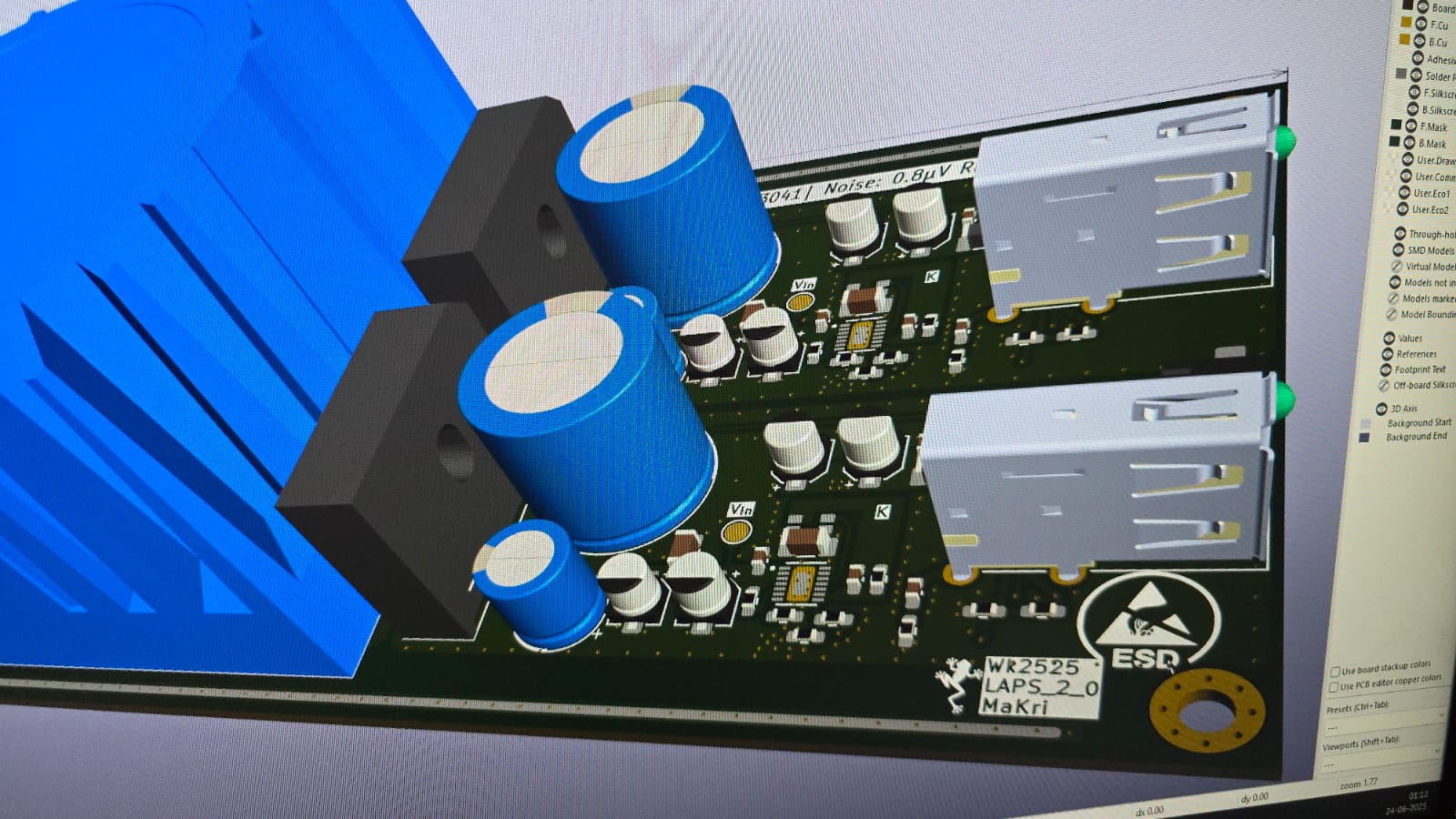

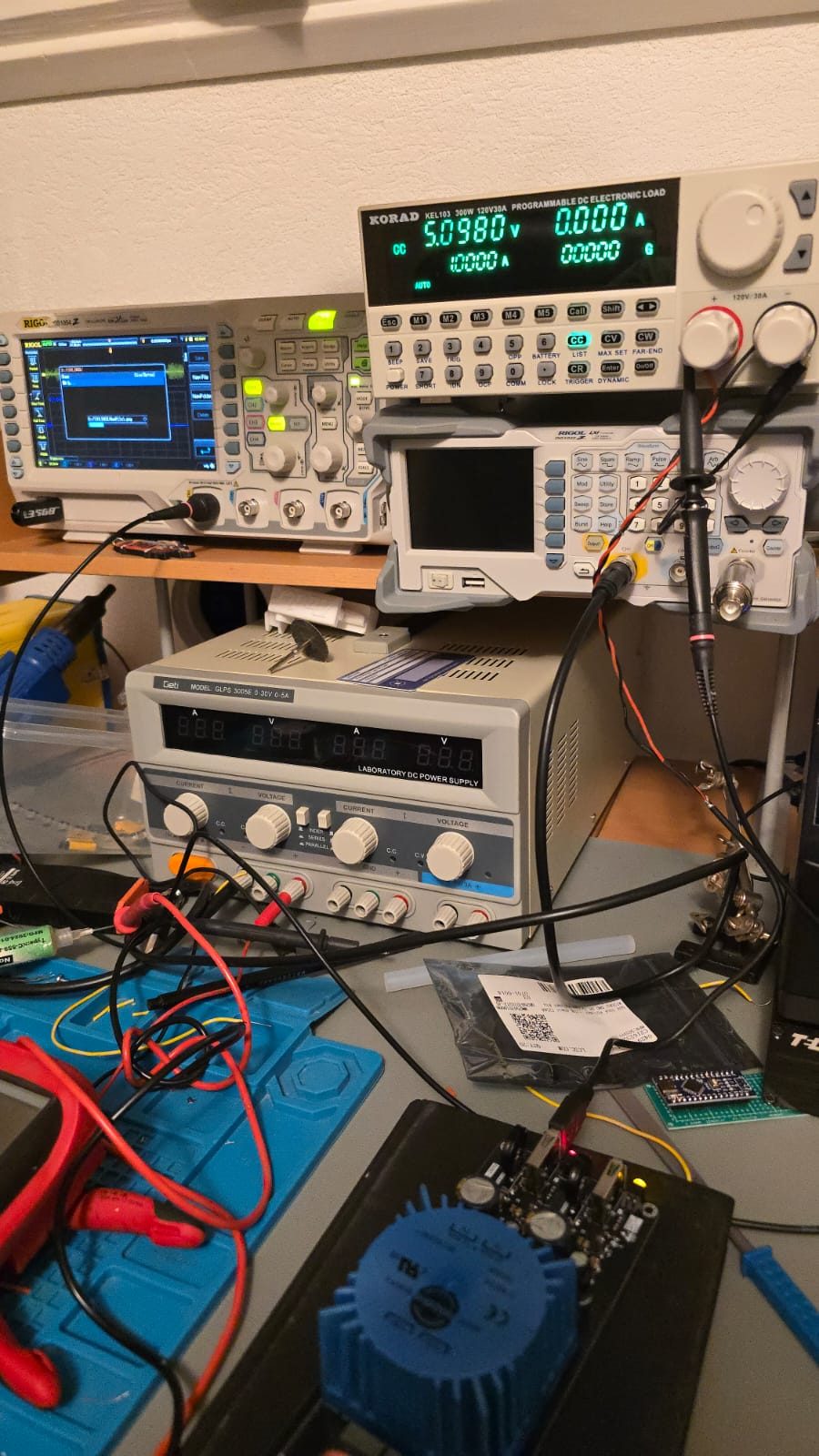

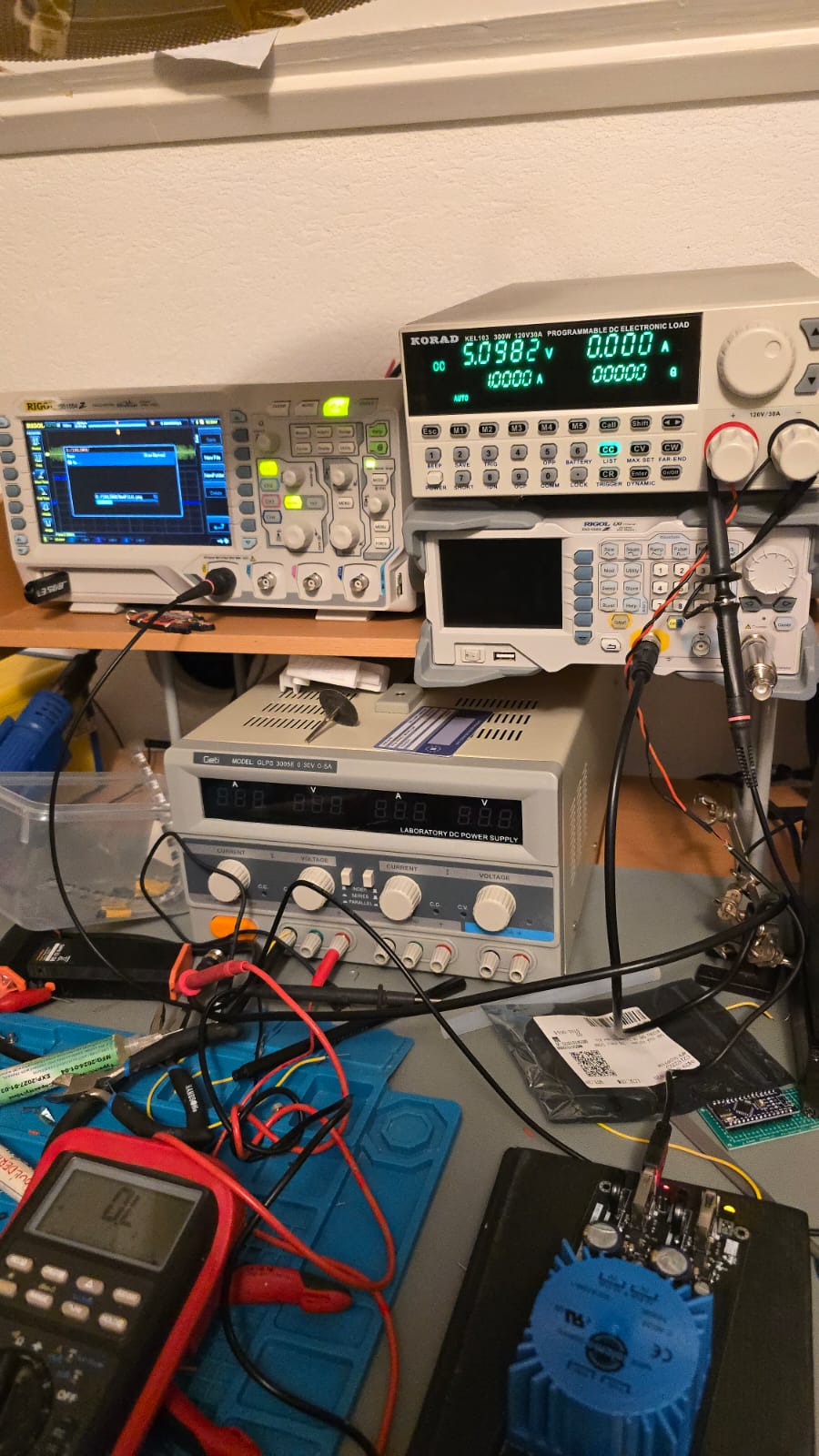

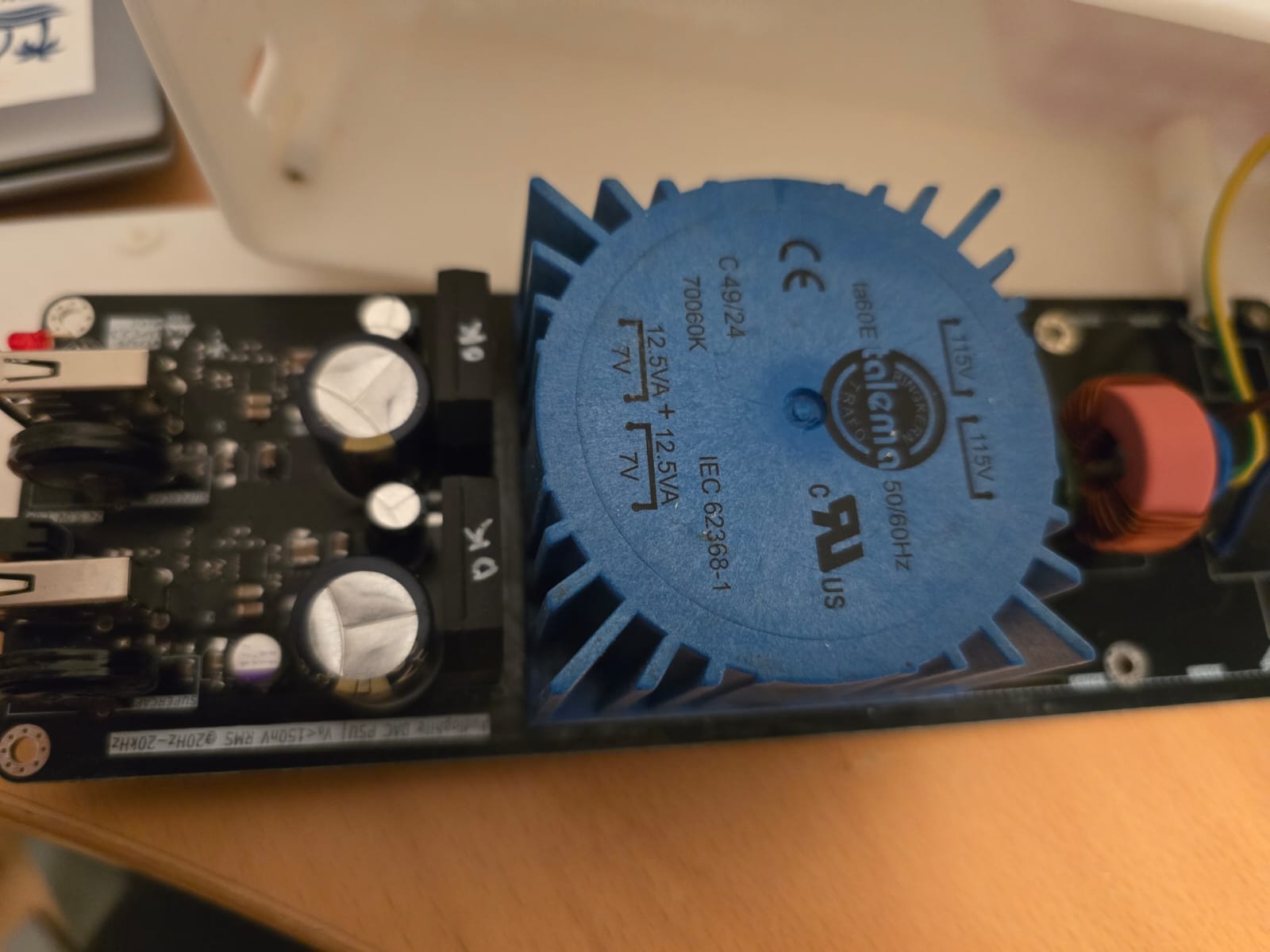

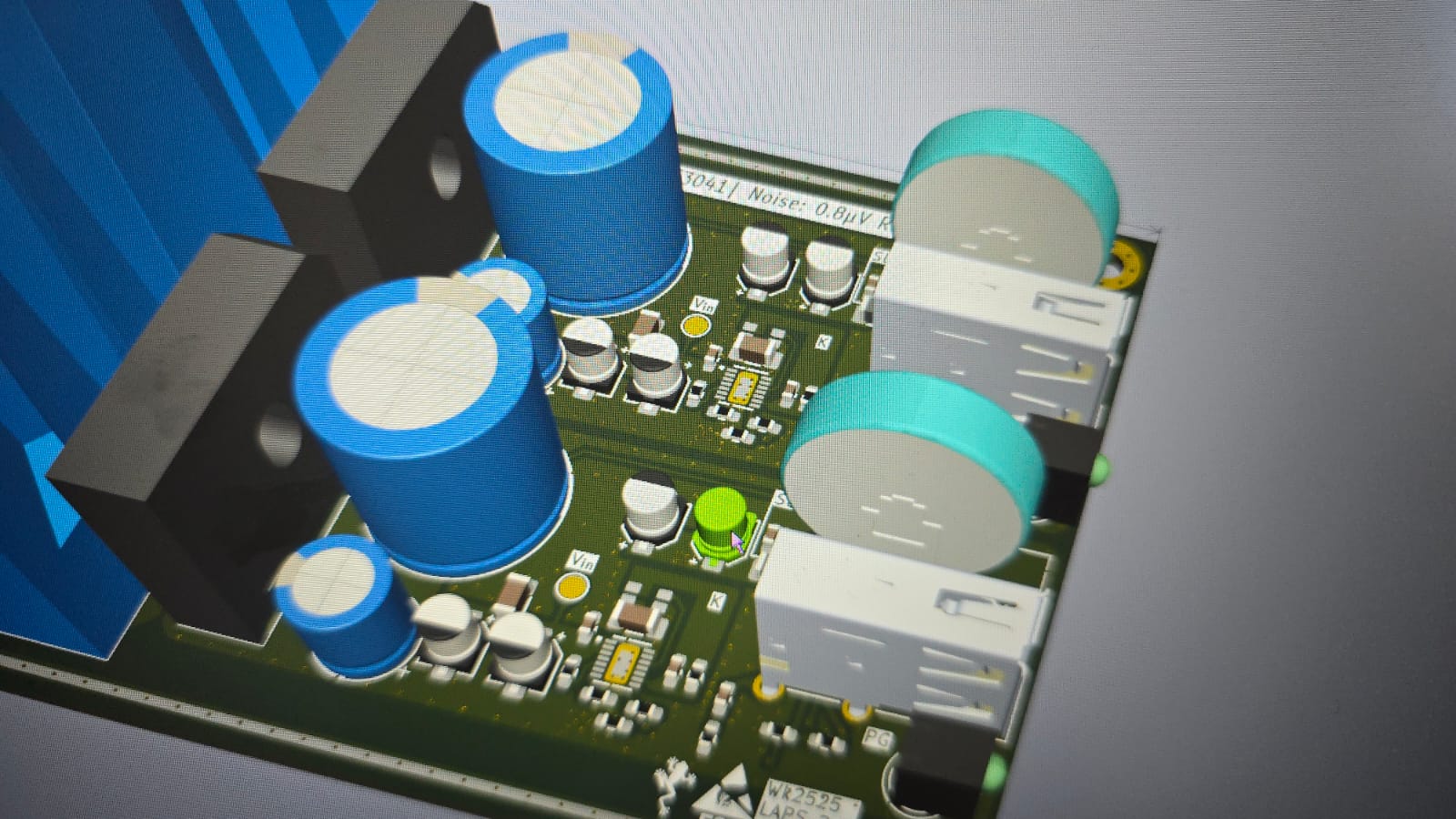

Low-noise audiophile power supply
A custom power-supply project developed for one audiophile client, with attention to low noise, clean regulation, thermal management, and a purpose-built enclosure.
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Selected work
Miscellaneous technical projects
A categorized look at additional embedded, battery, inspection, and field-system work.

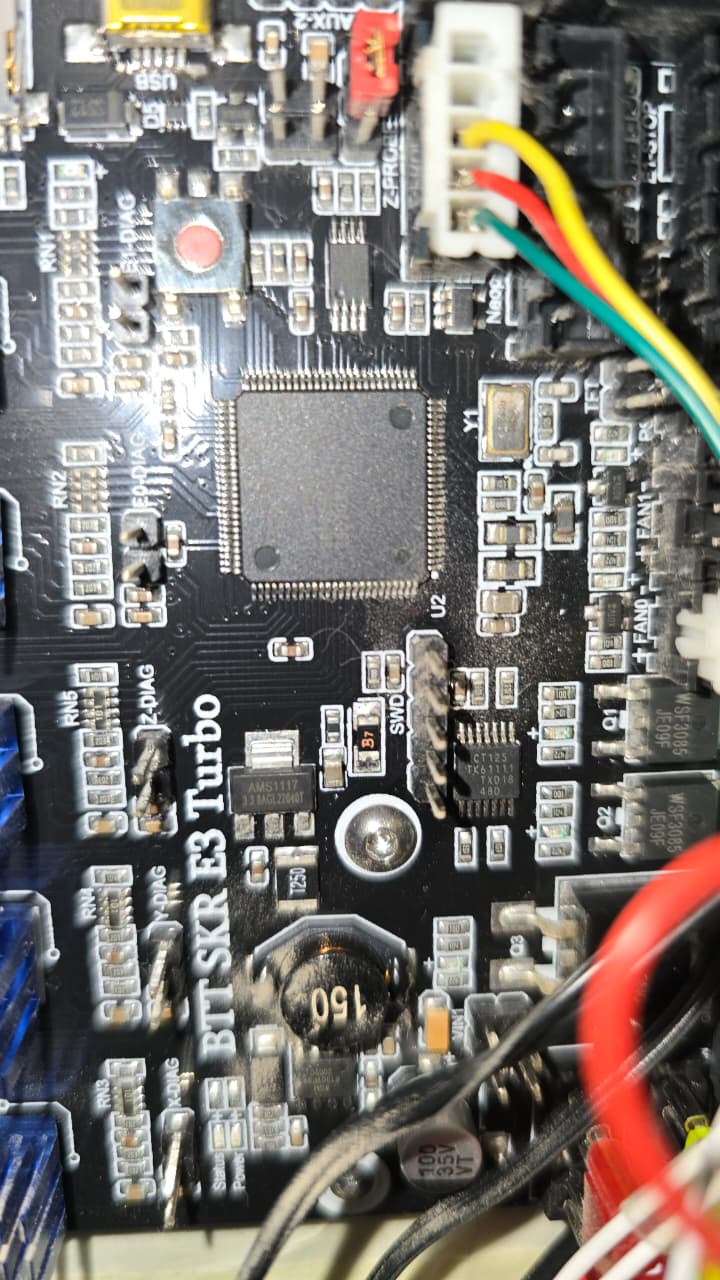

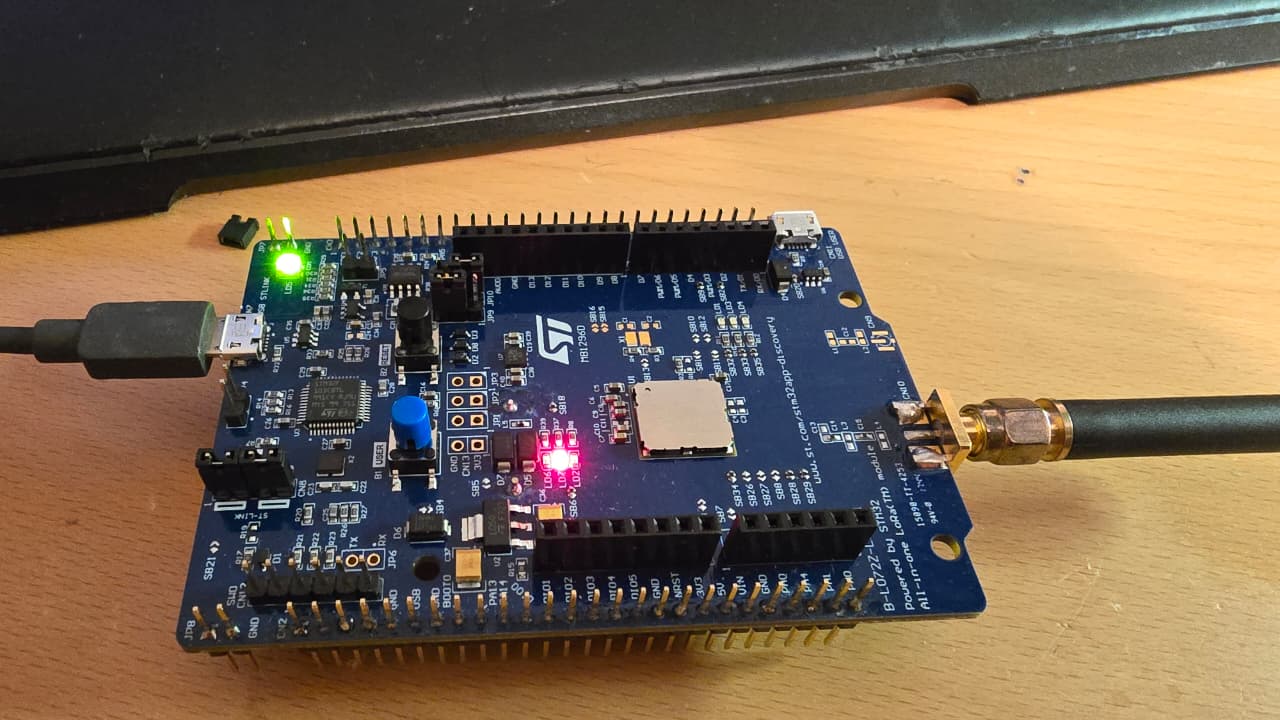

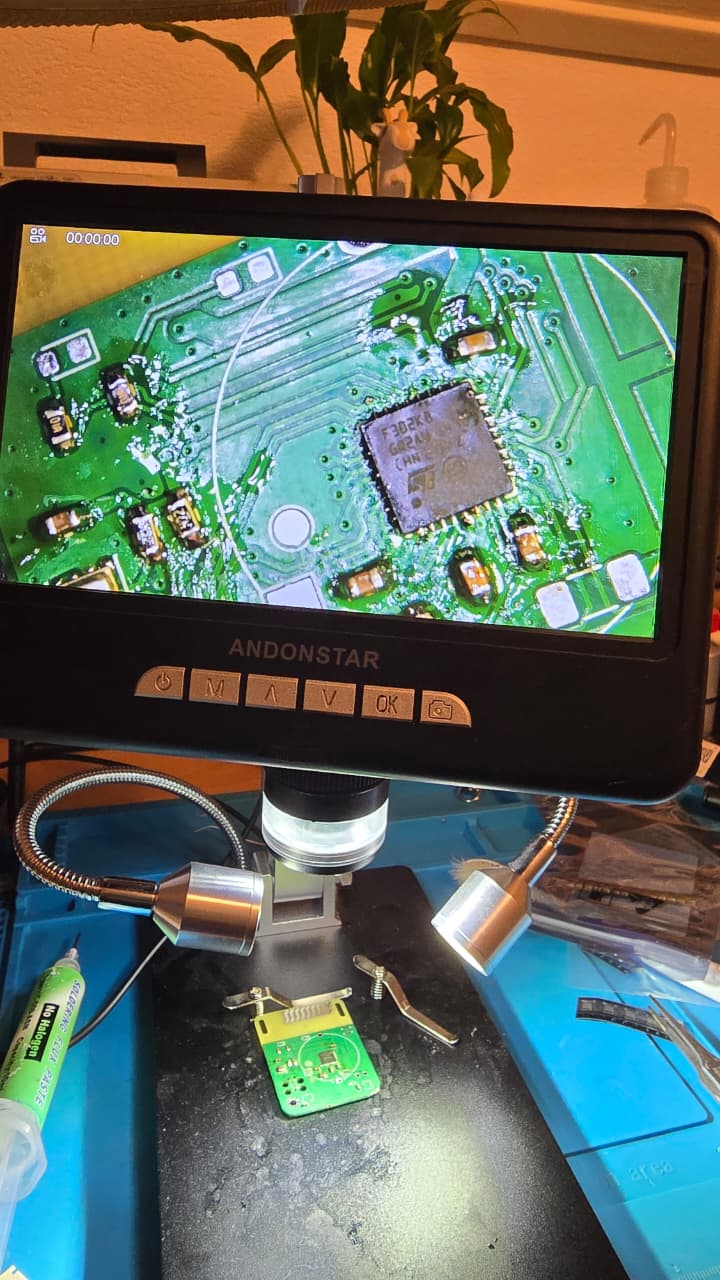

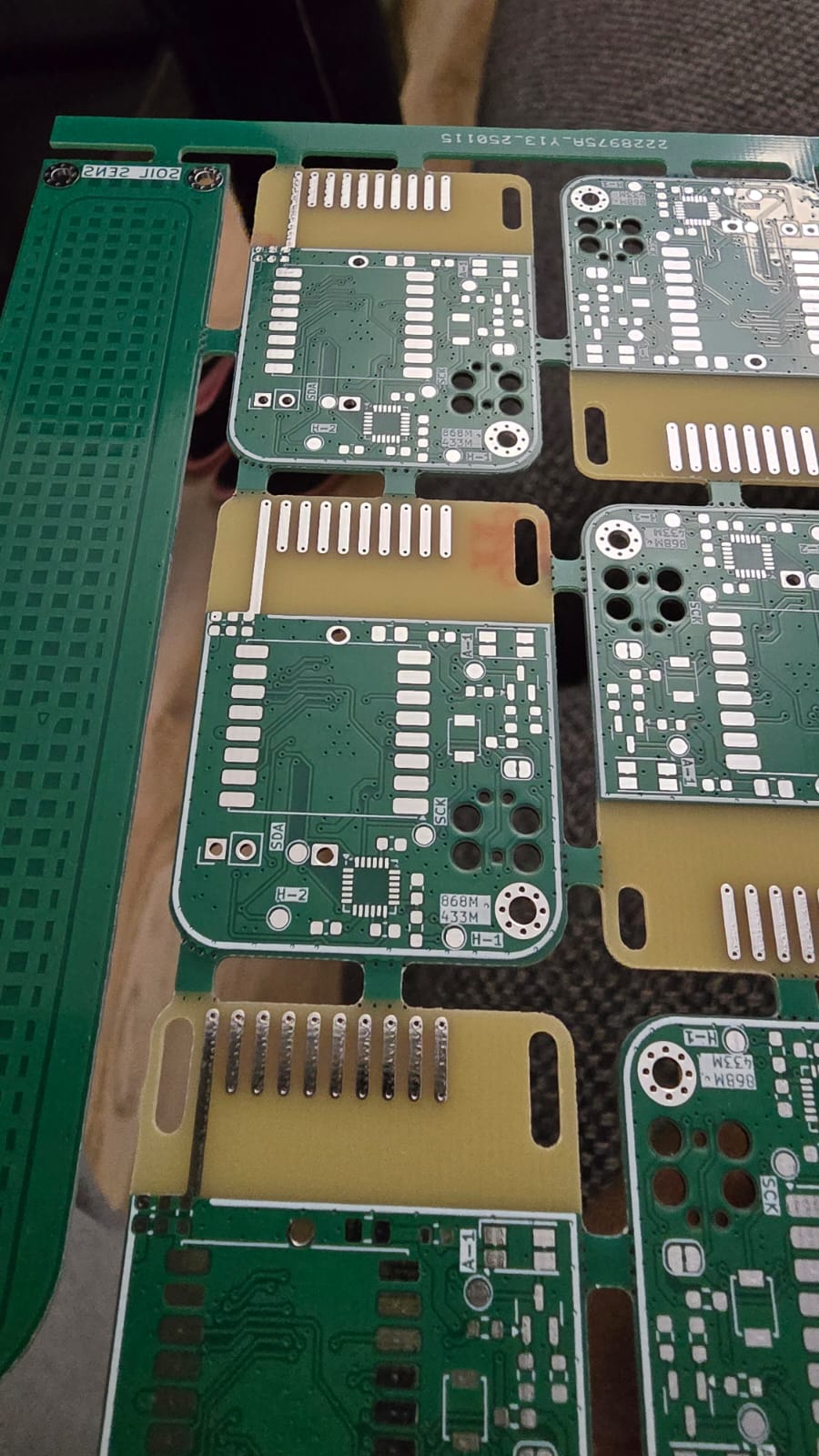

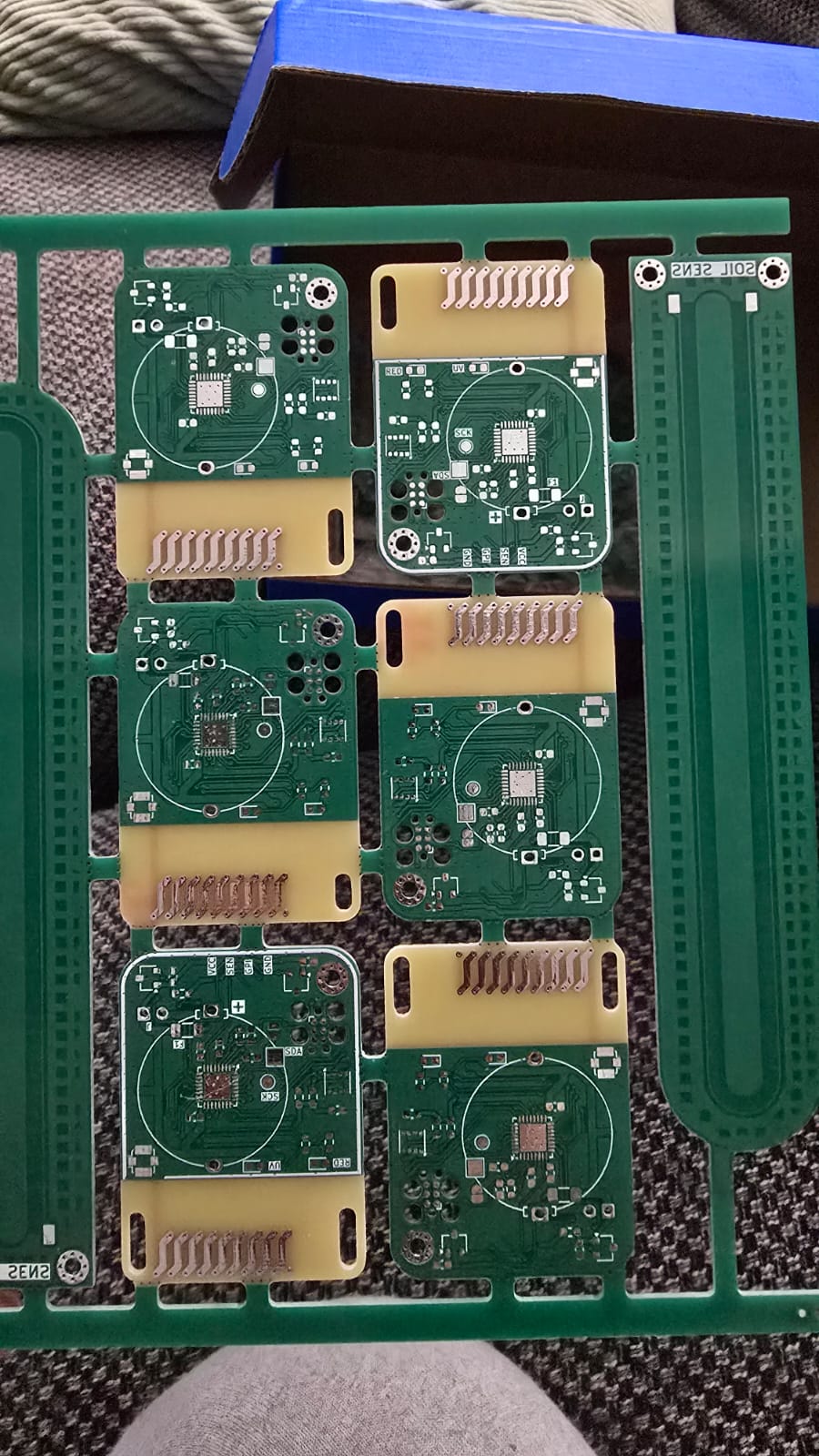

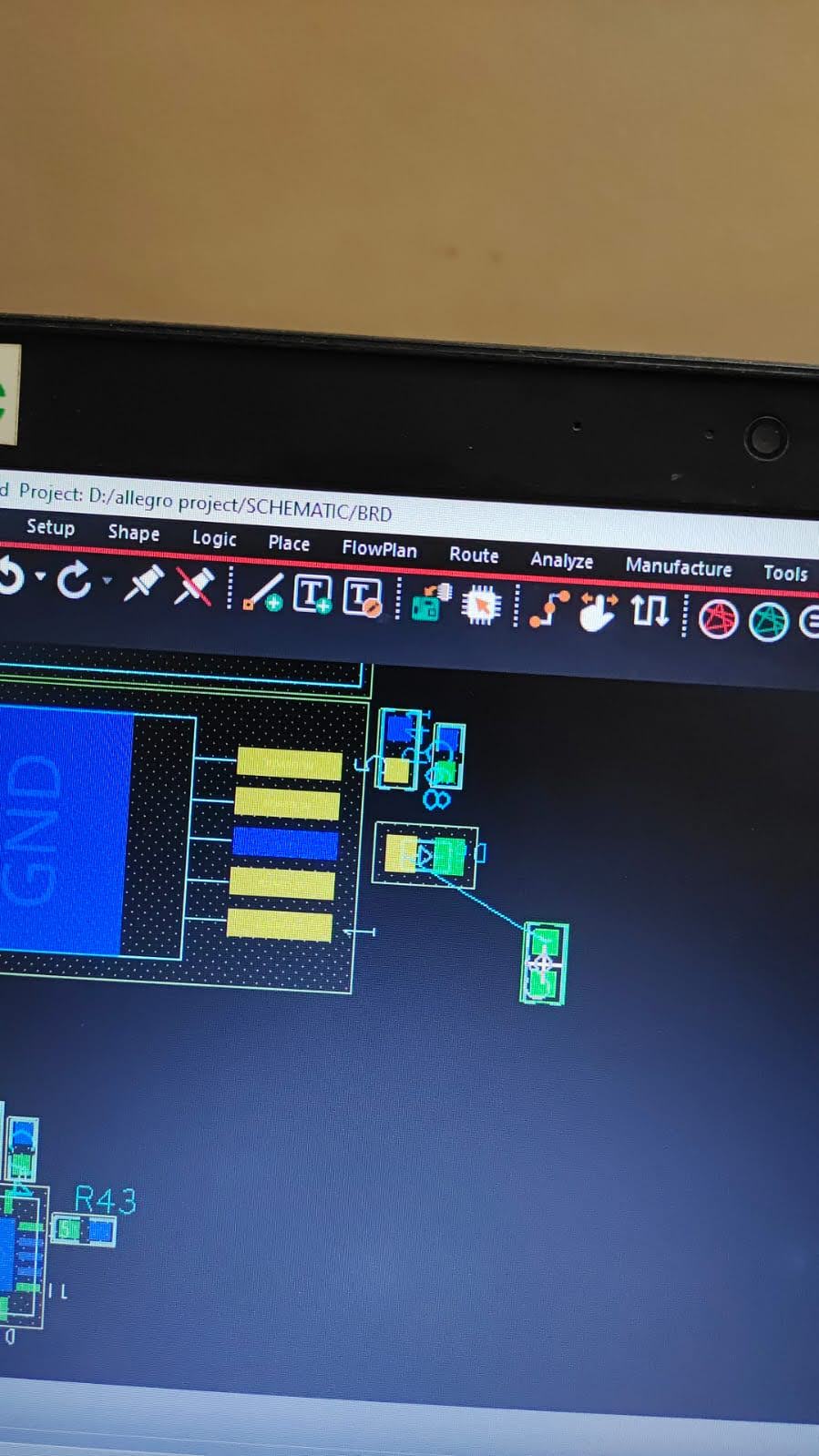

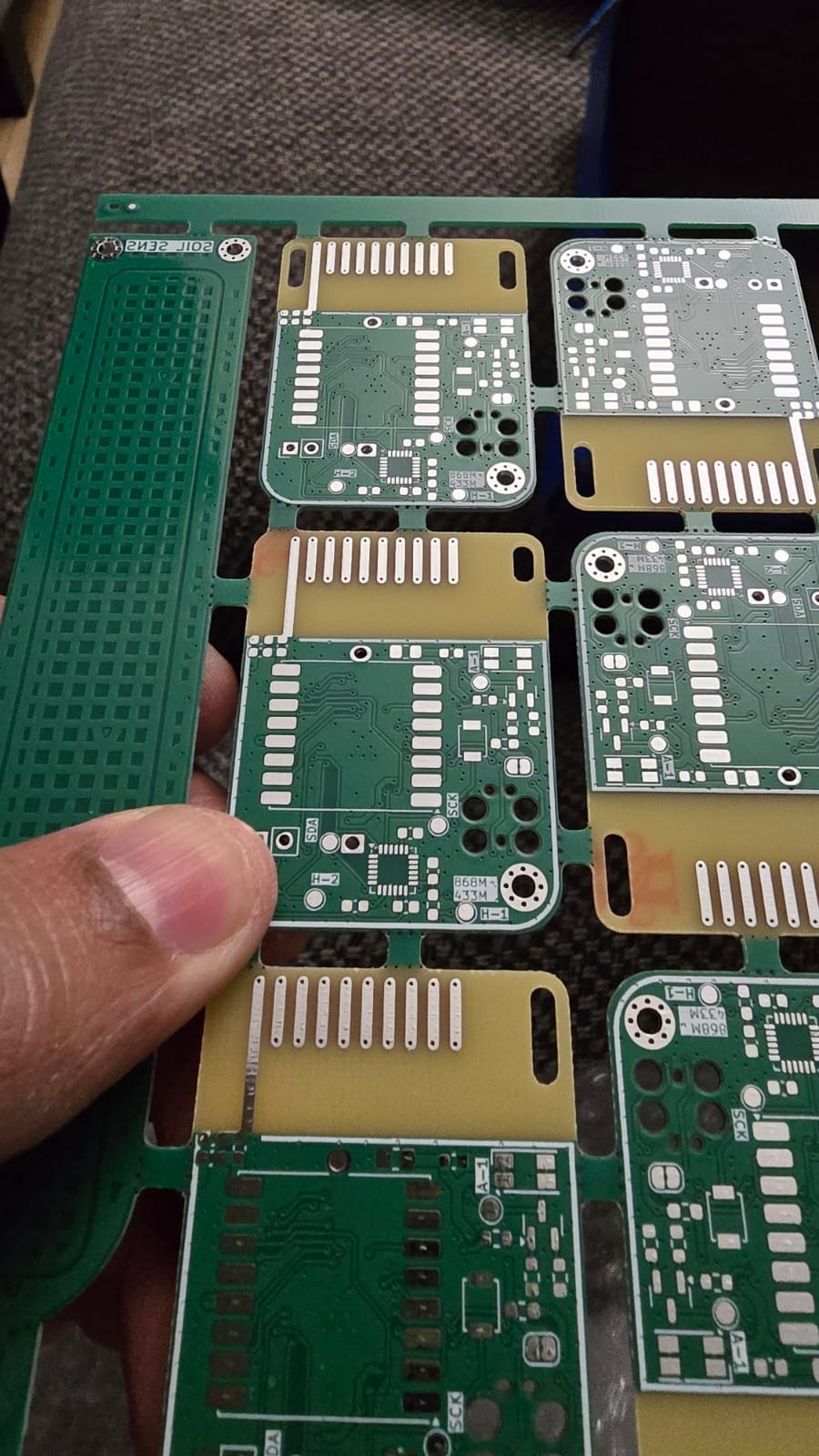

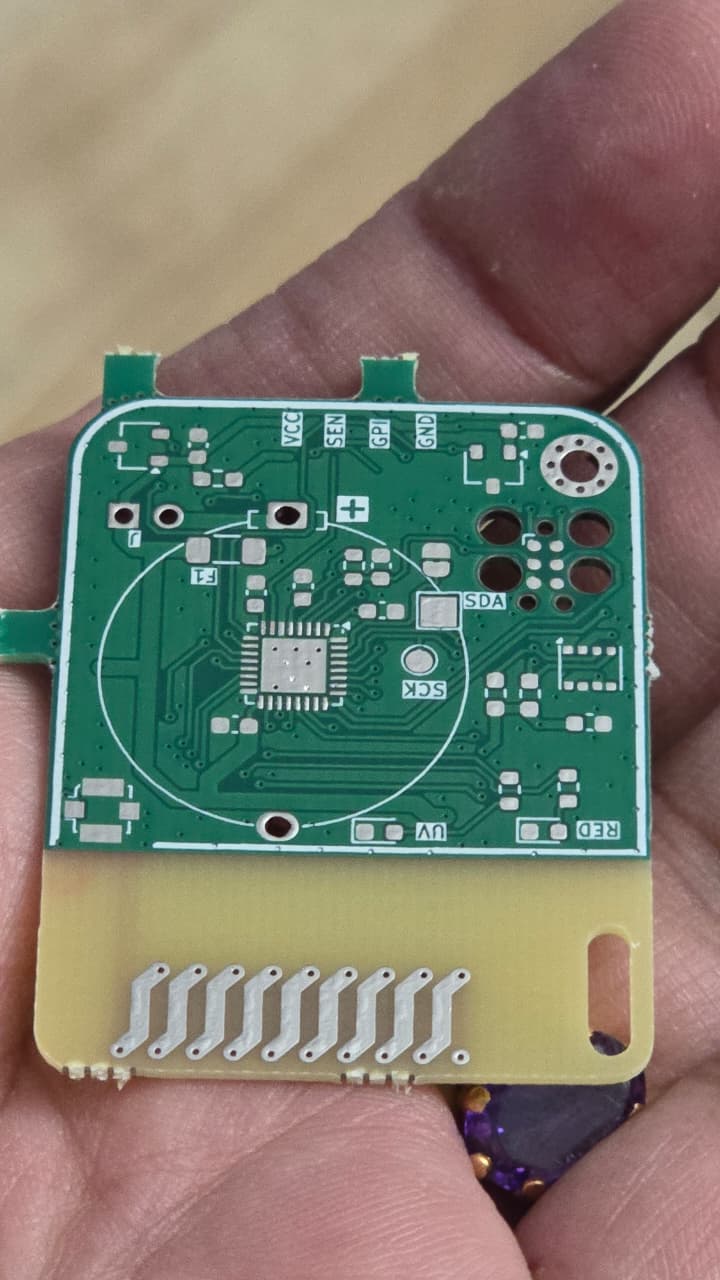

Embedded electronics & PCB development
.jpeg)
.jpeg)
.jpeg)
.jpeg)

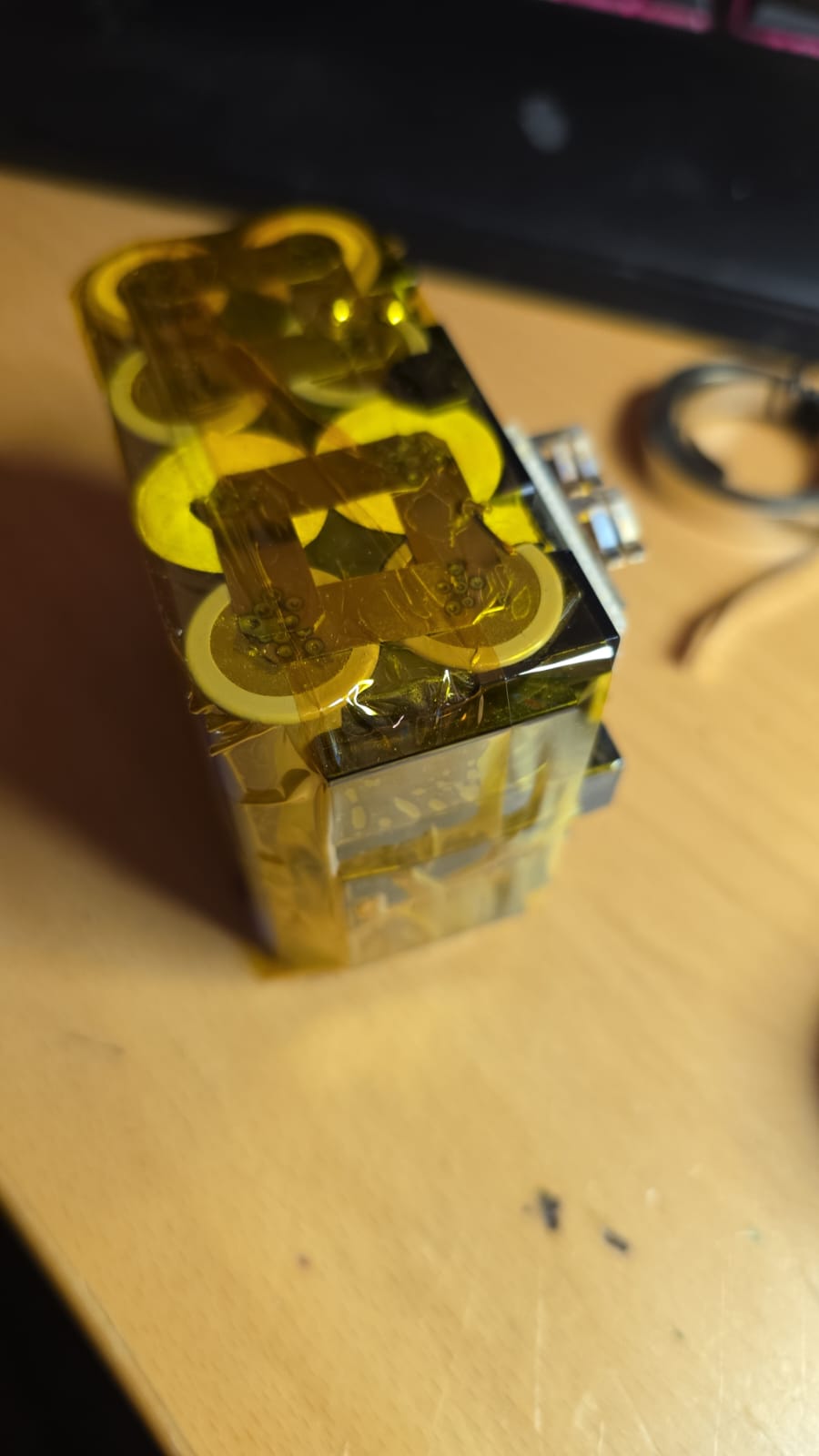

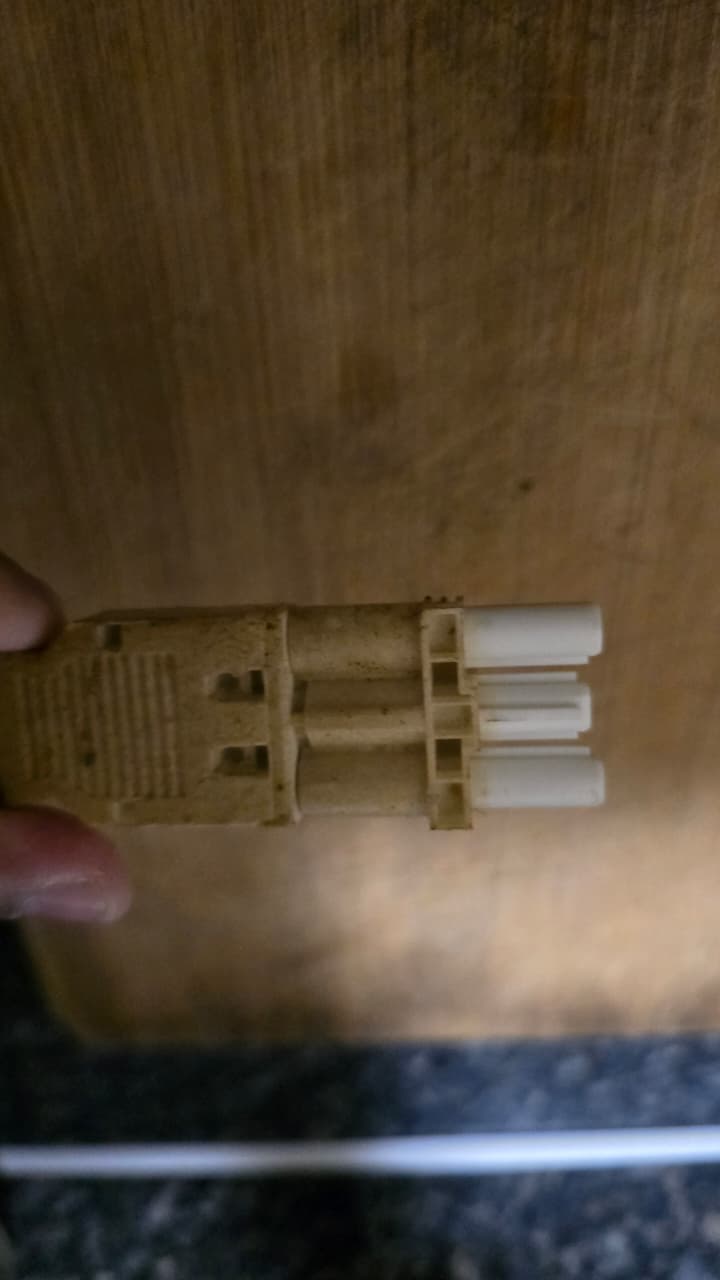

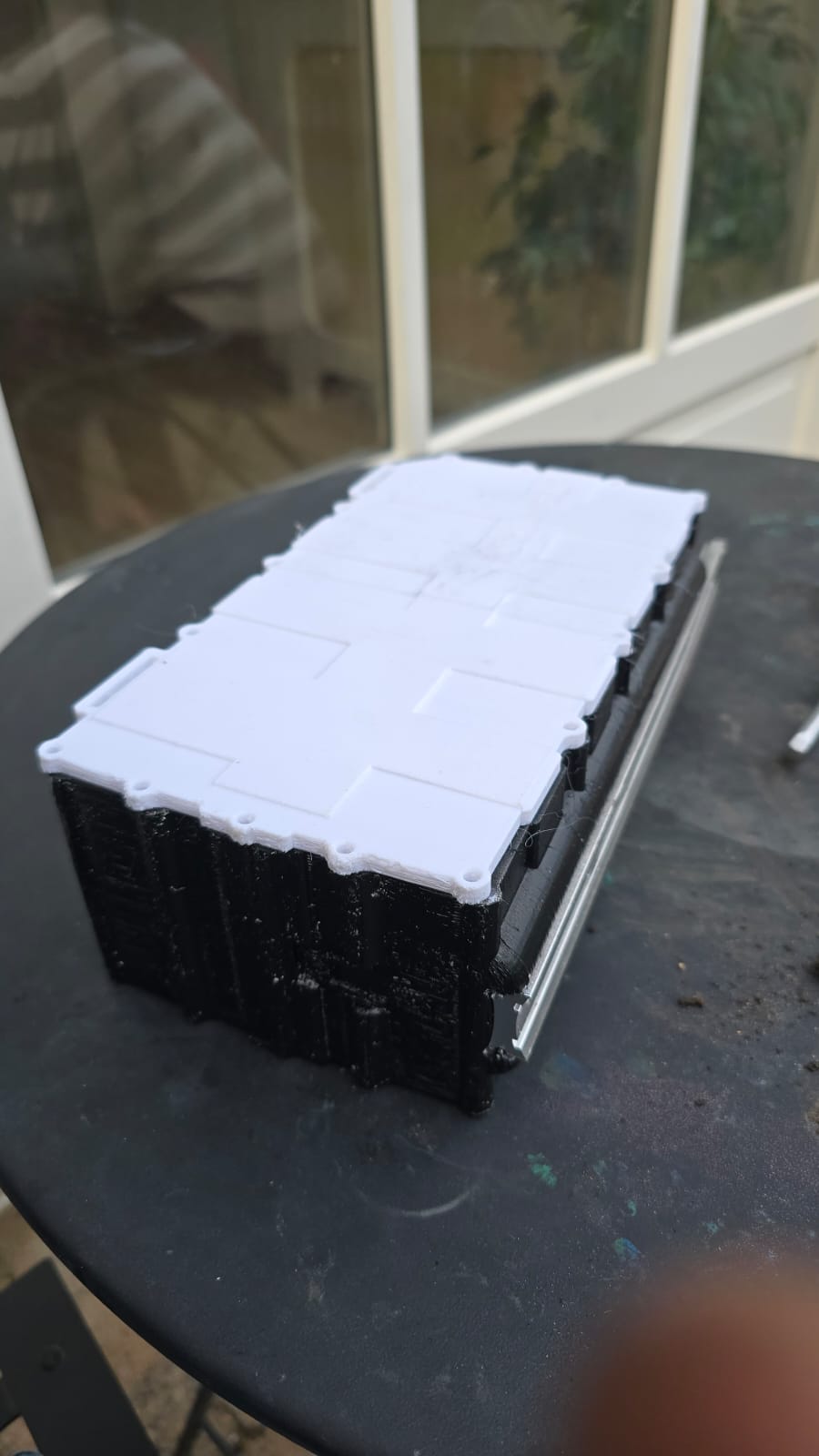

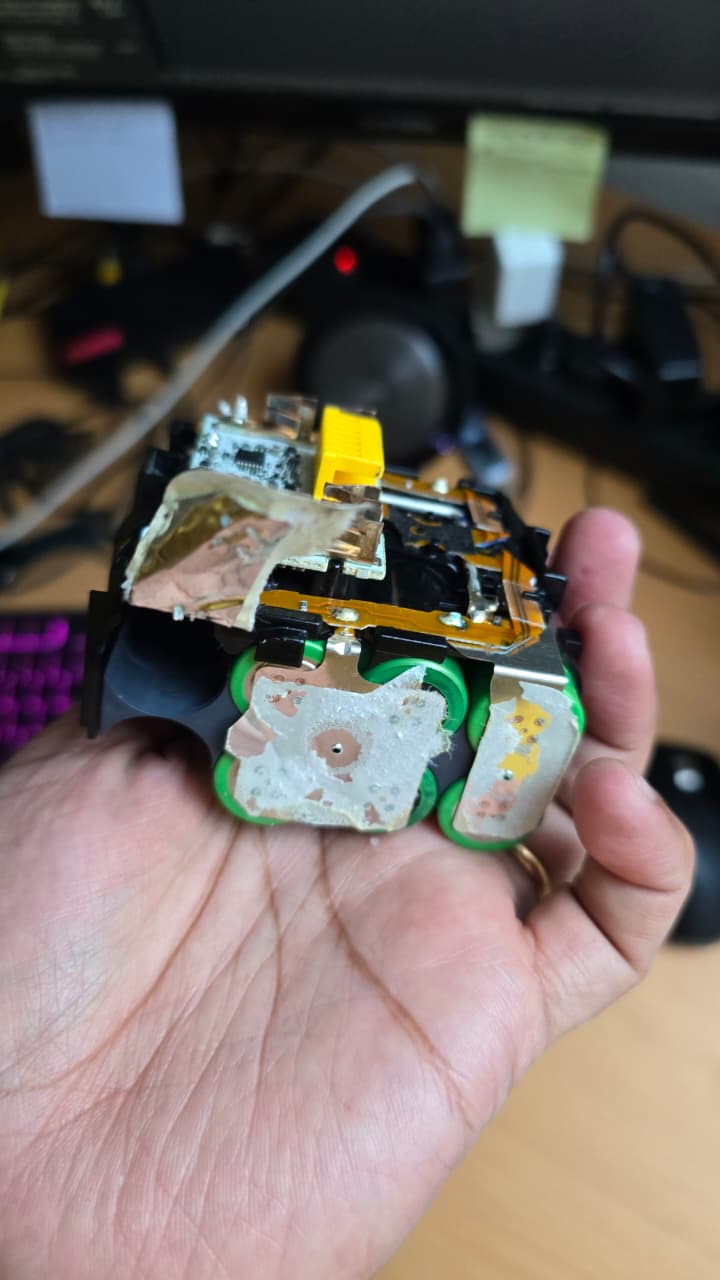

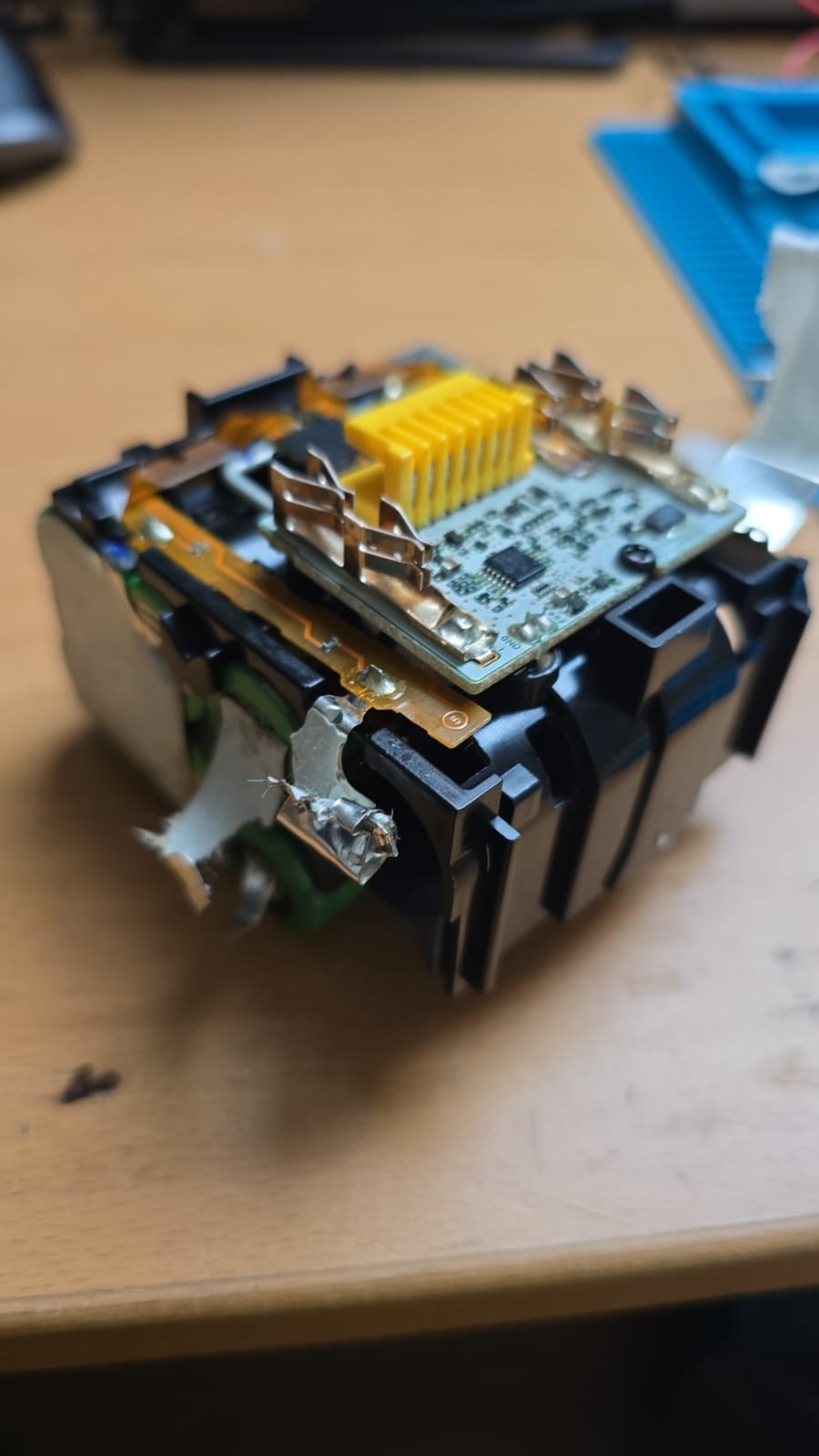

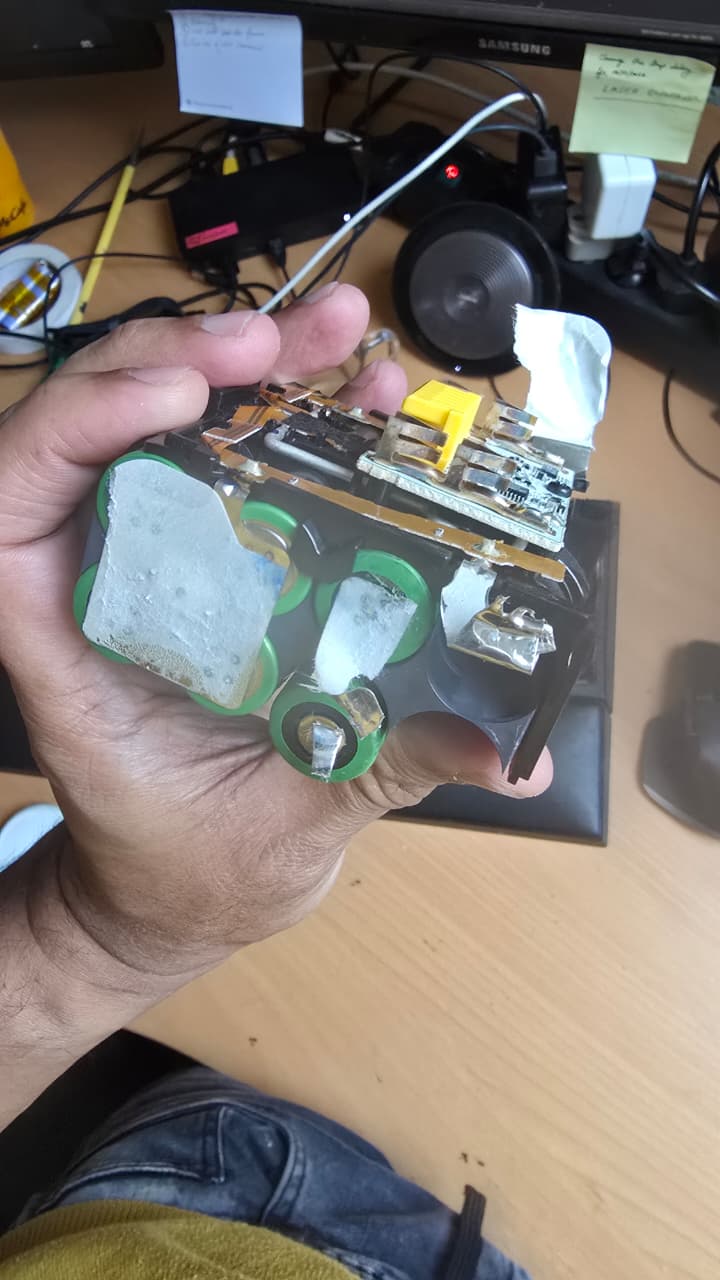

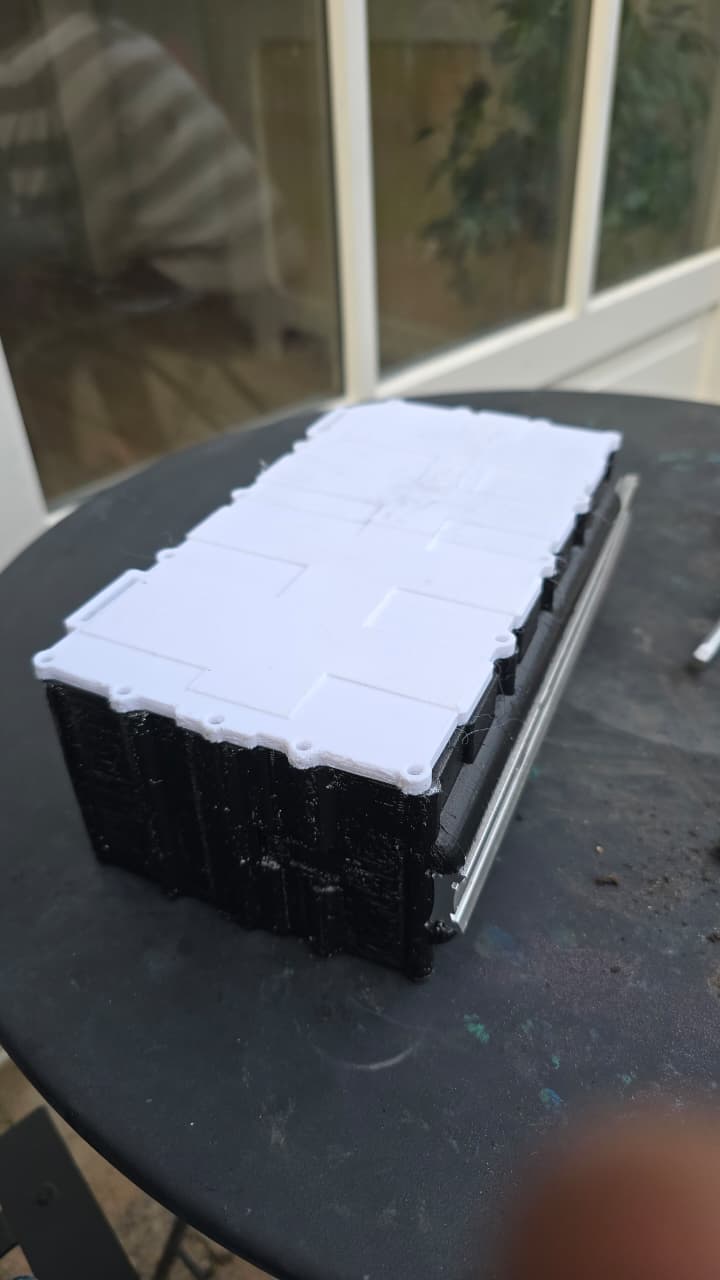

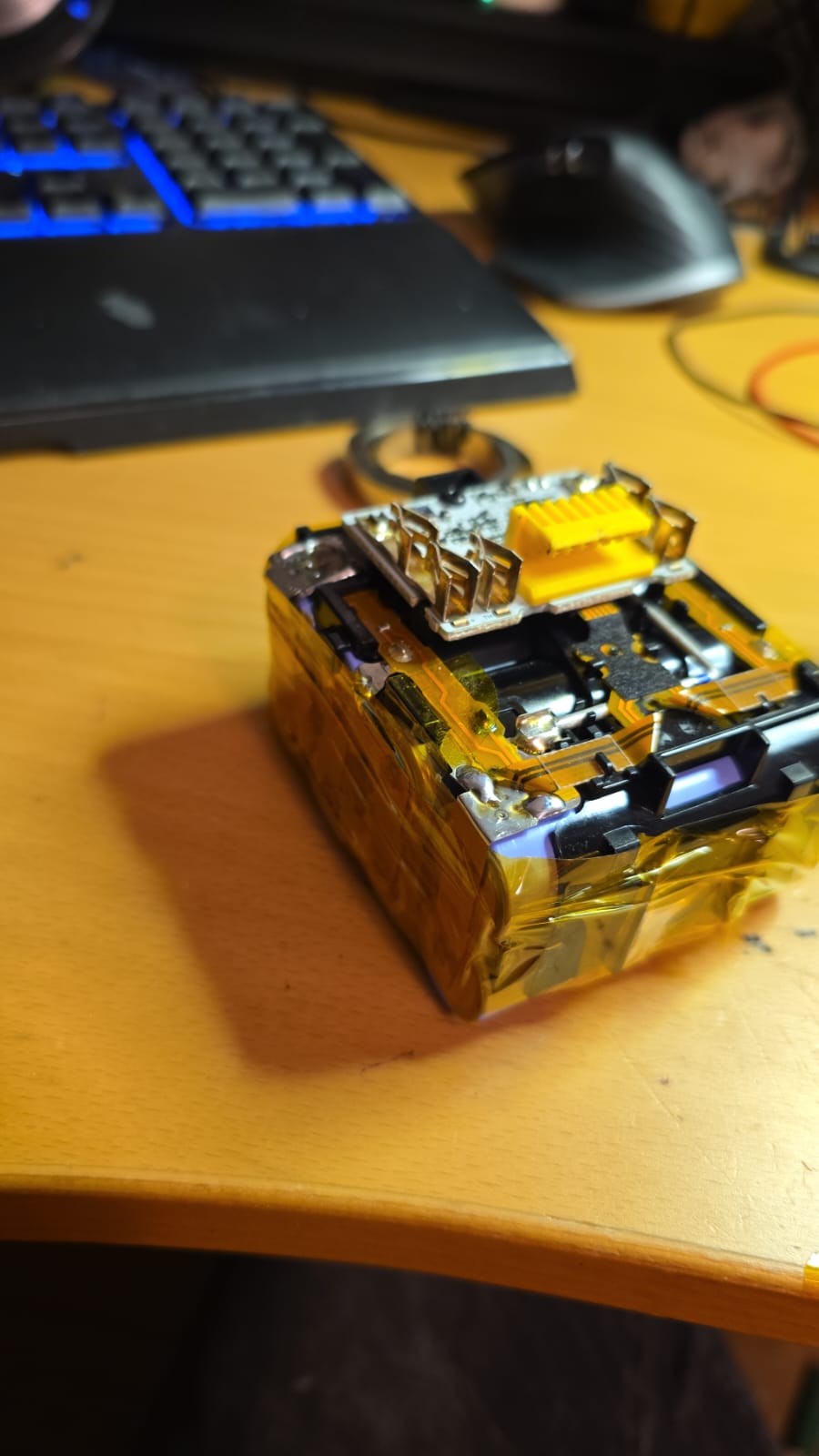

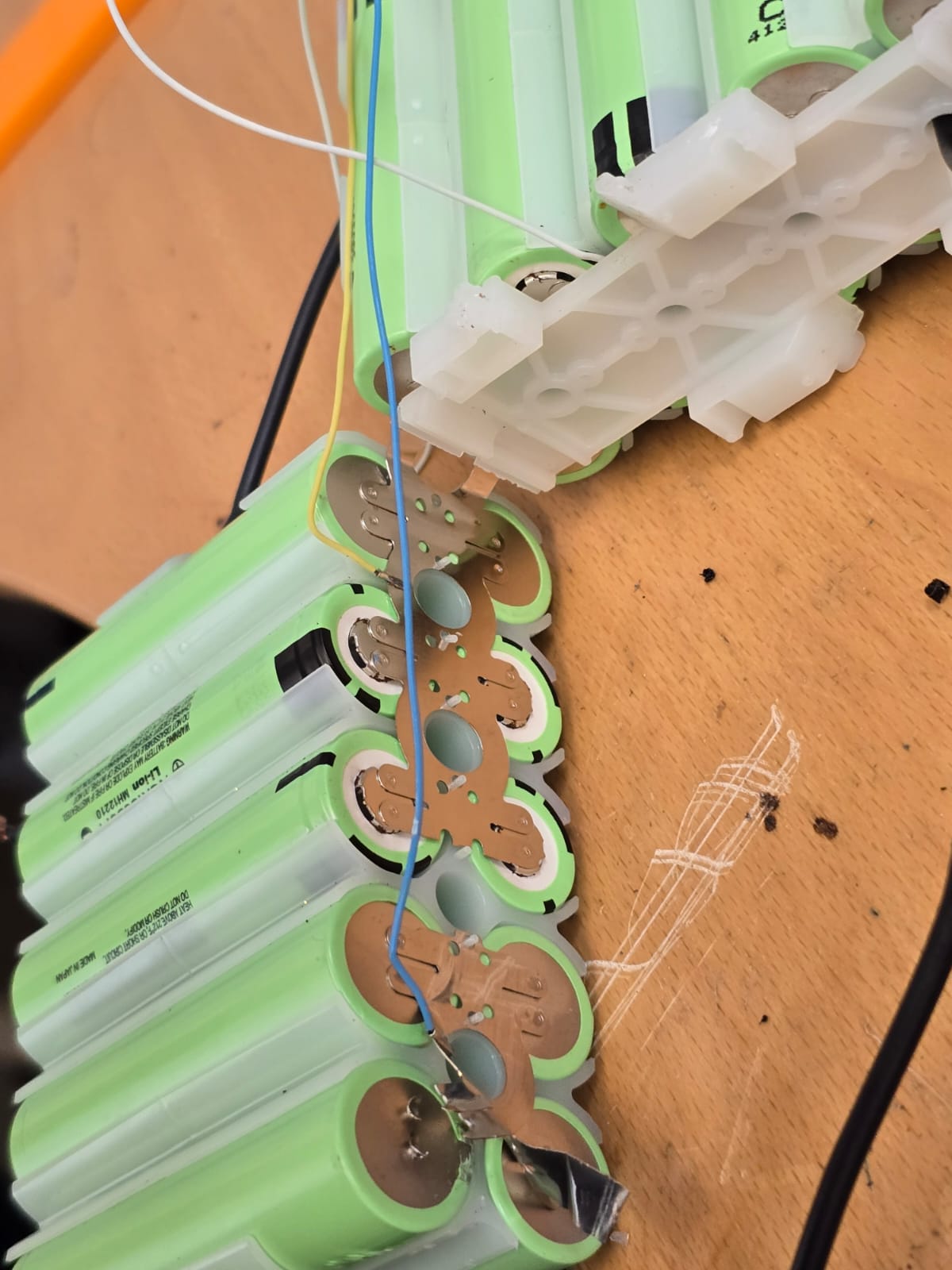

Battery systems & pack construction
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)

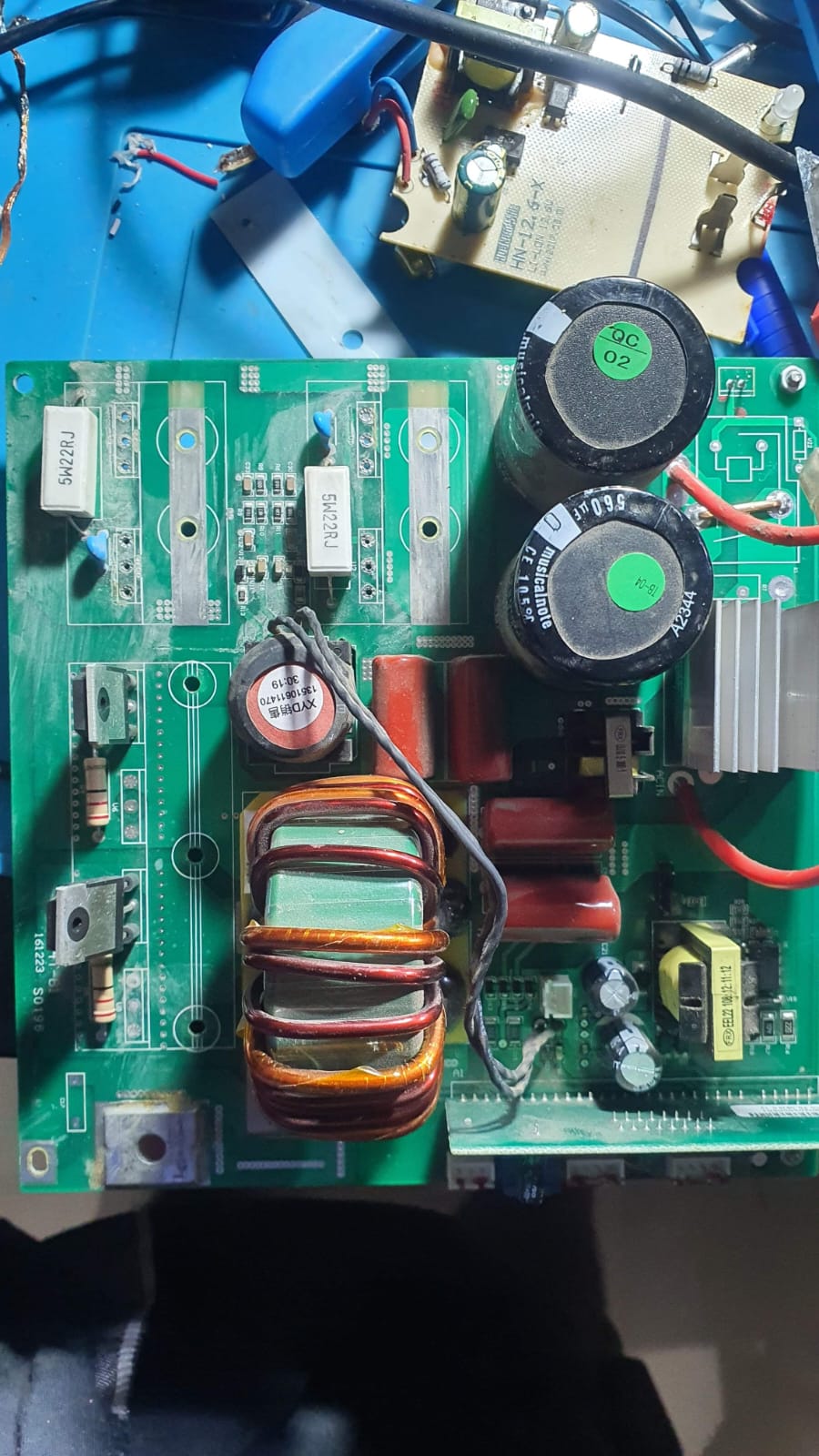

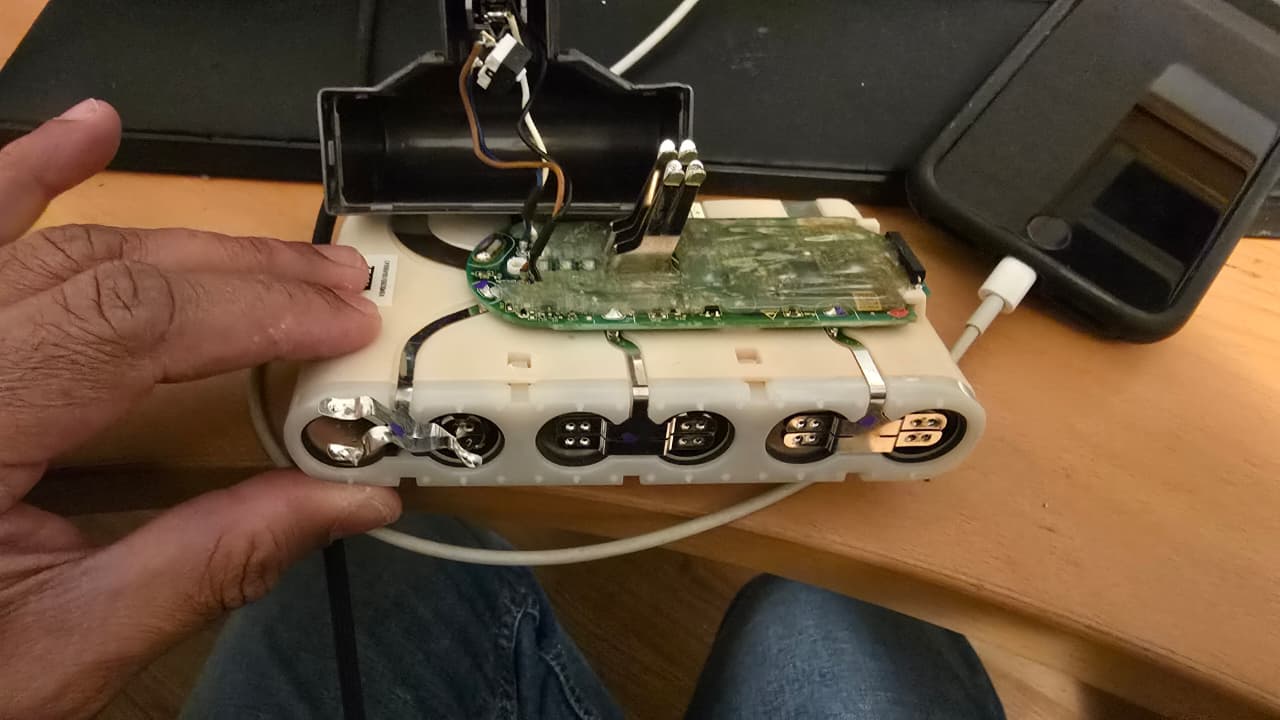

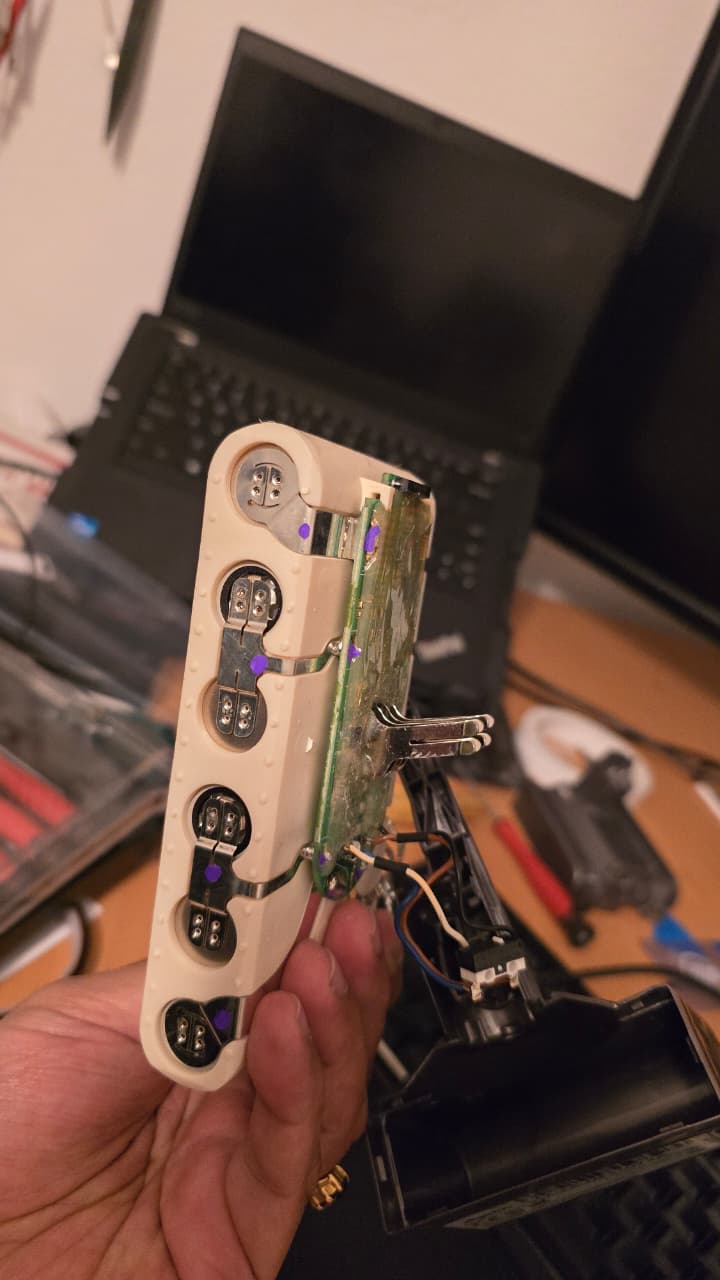

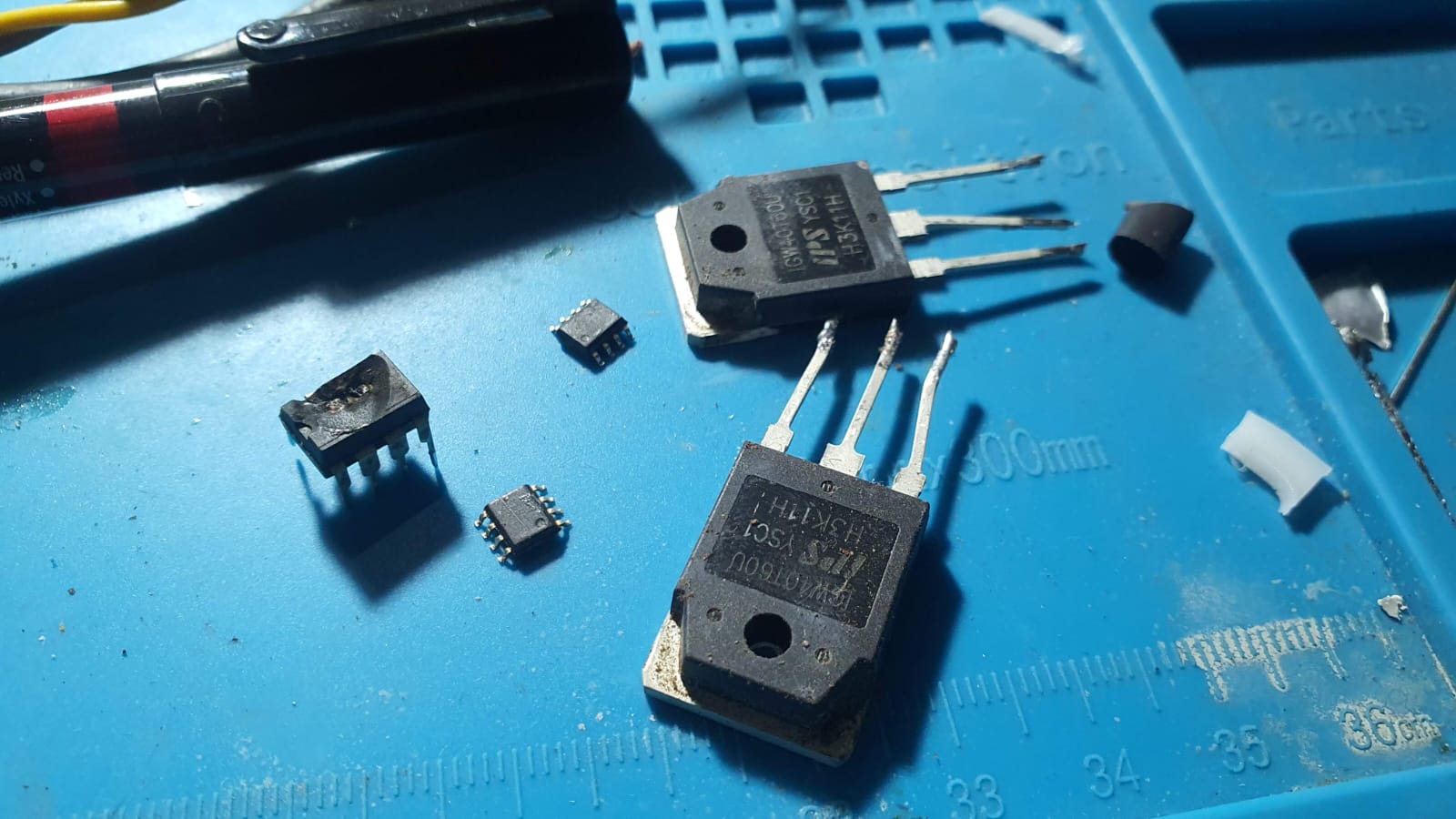

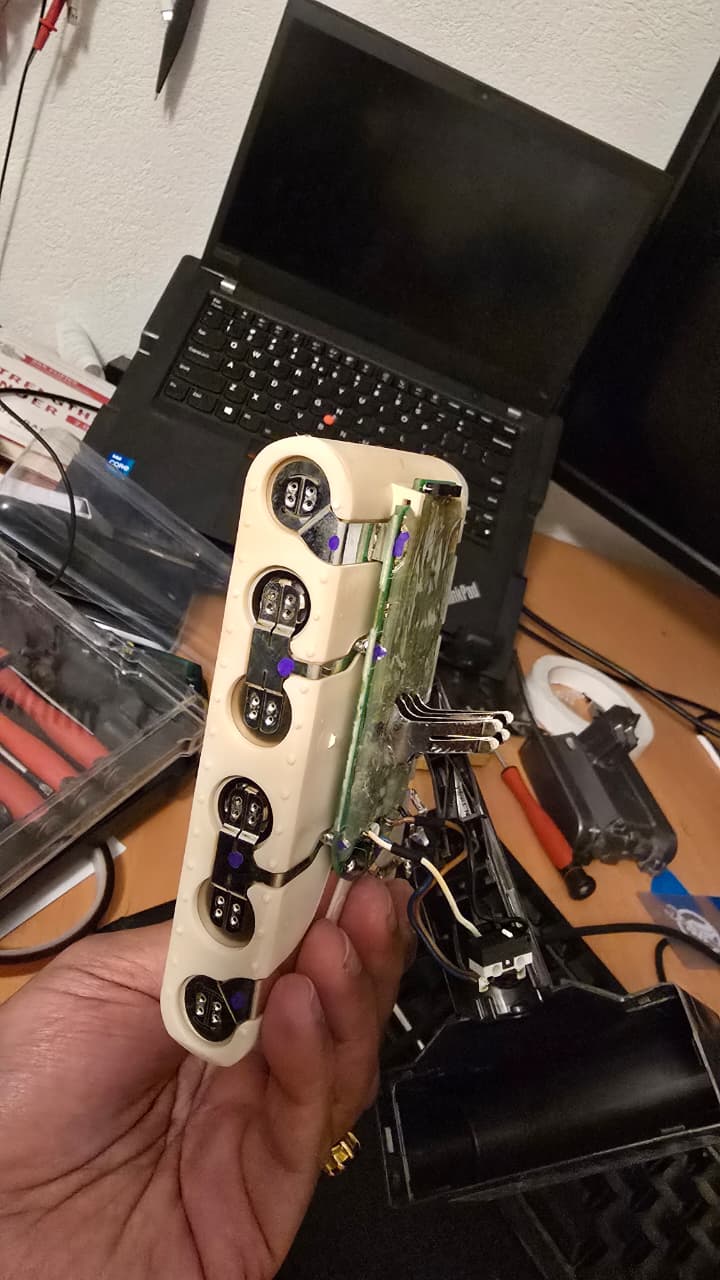

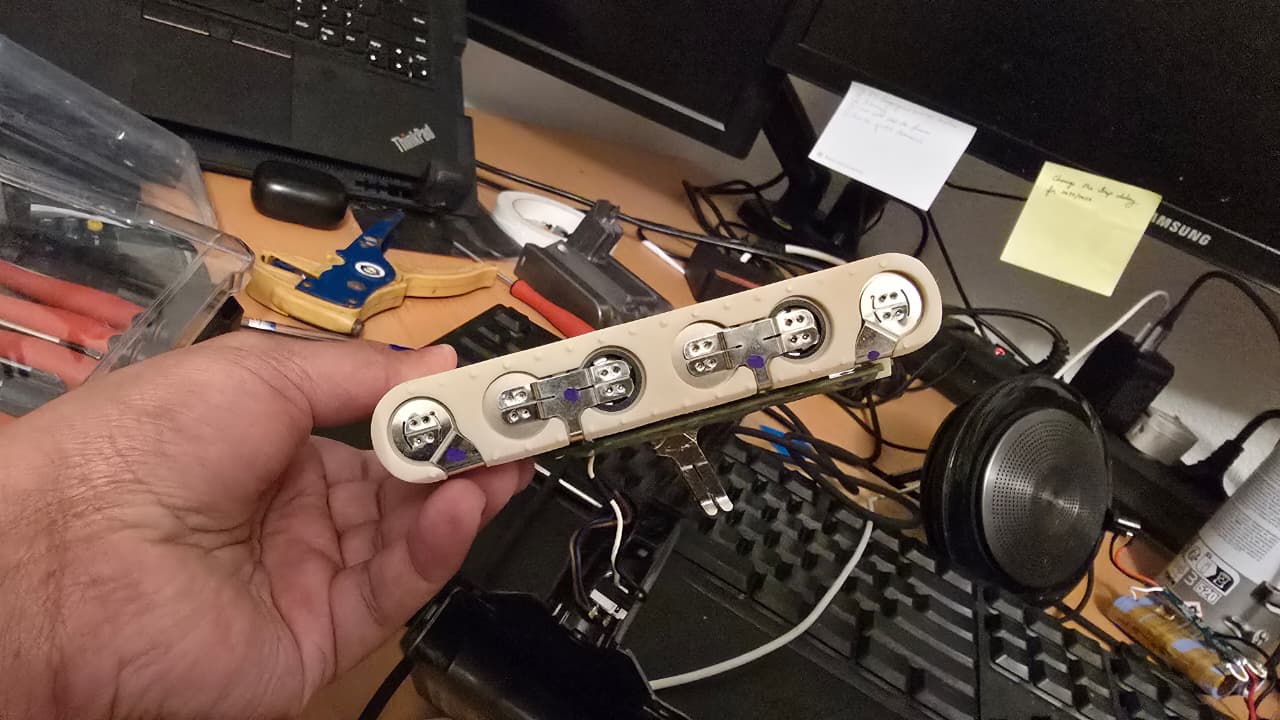

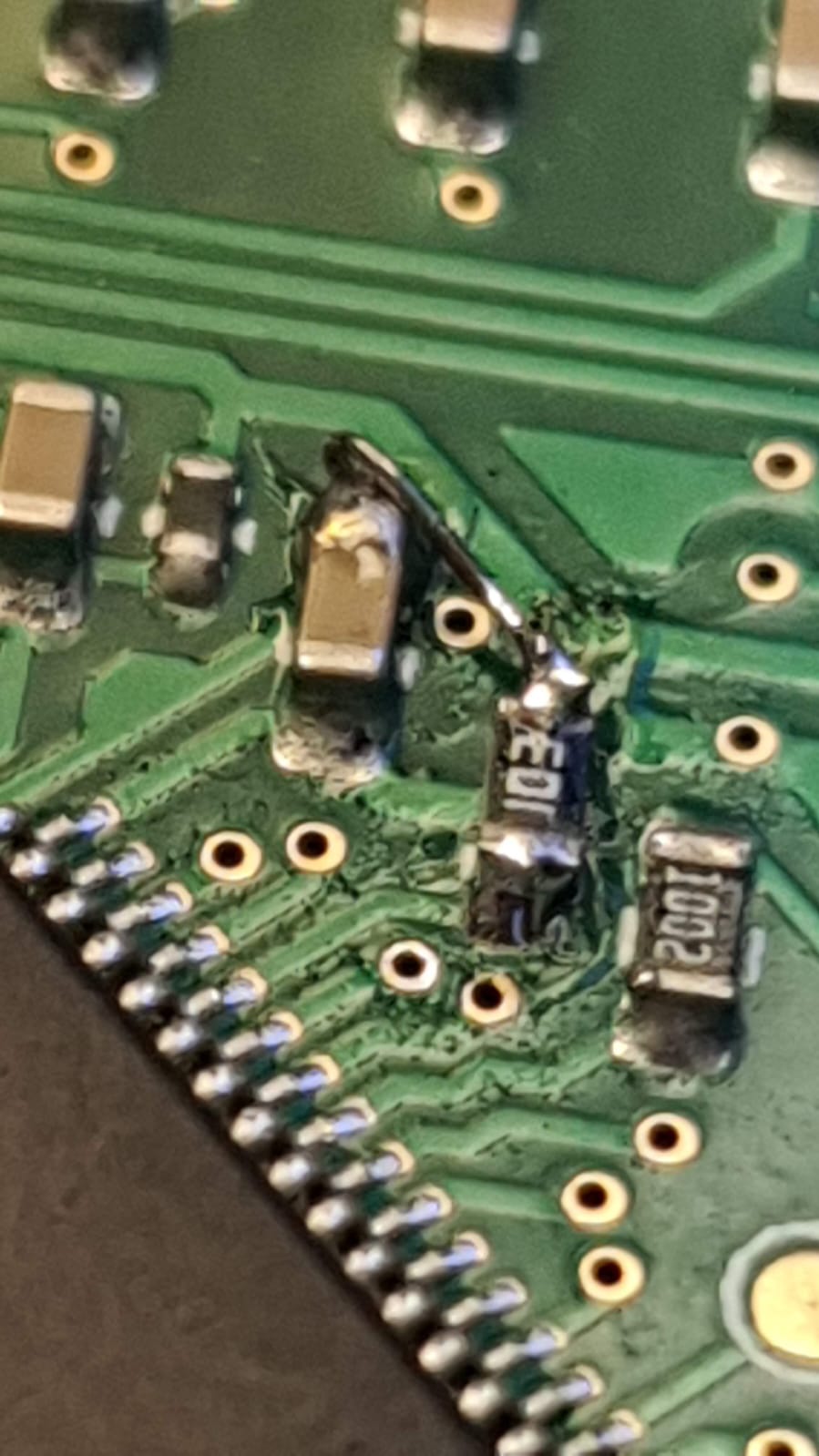

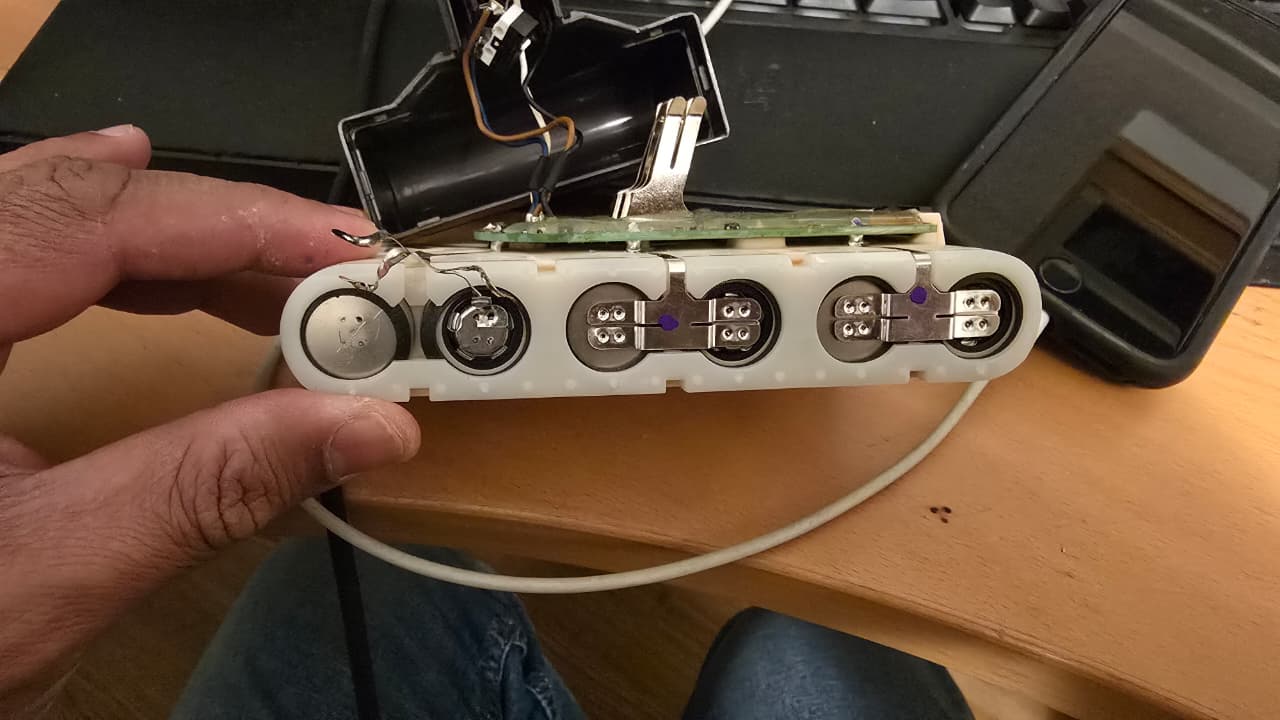

Inspection, repair & specialized hardware
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Development project

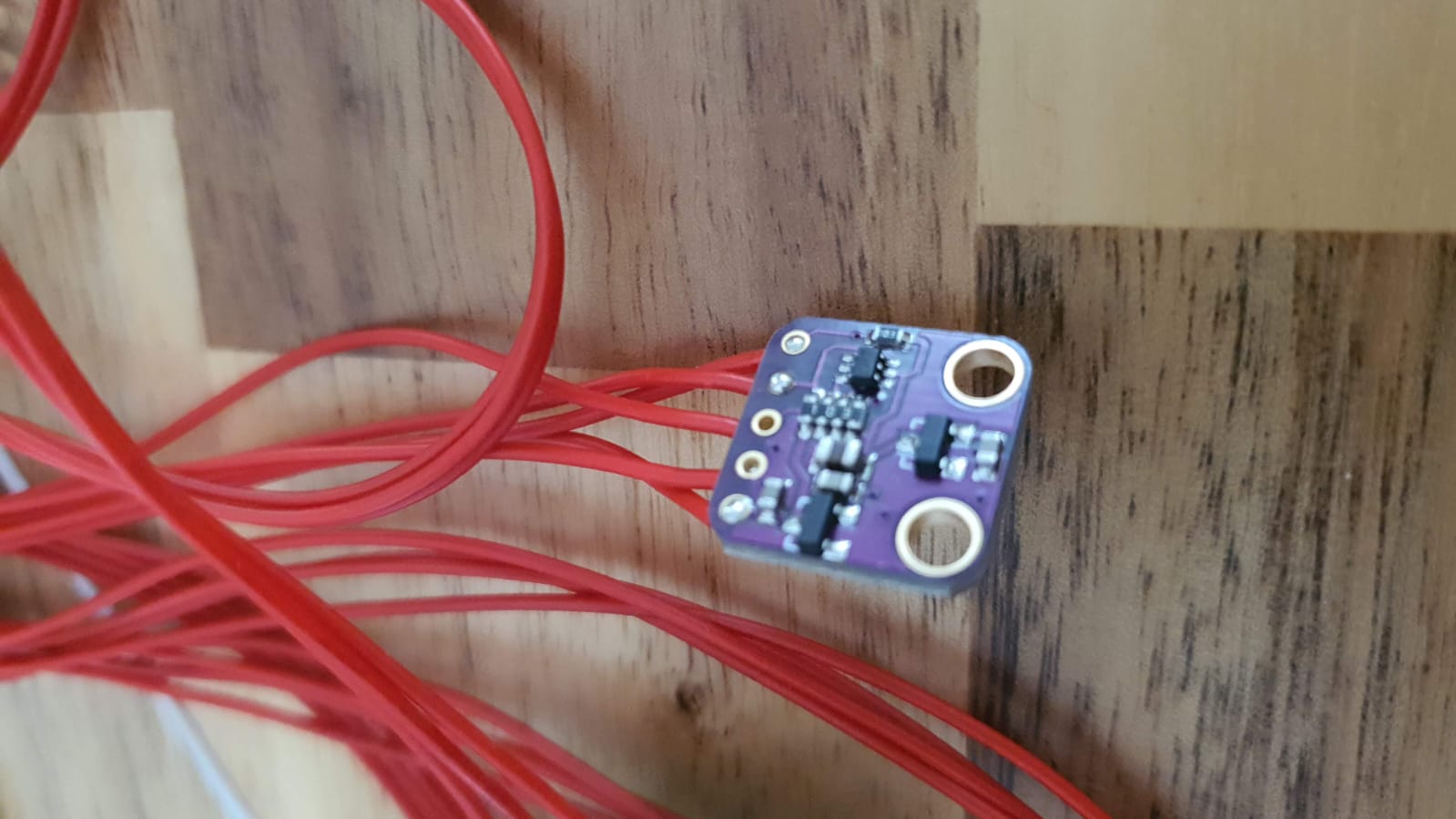

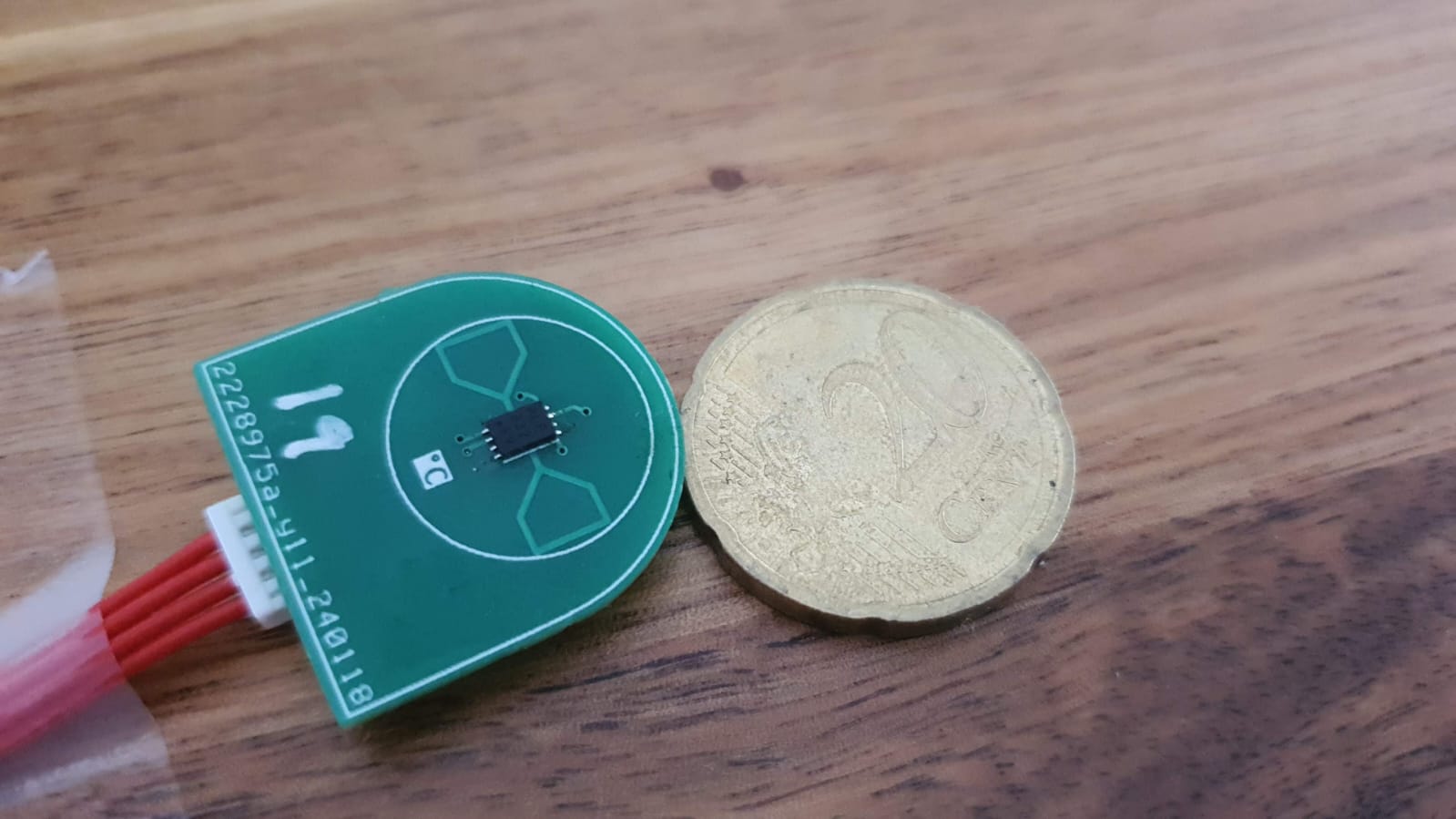

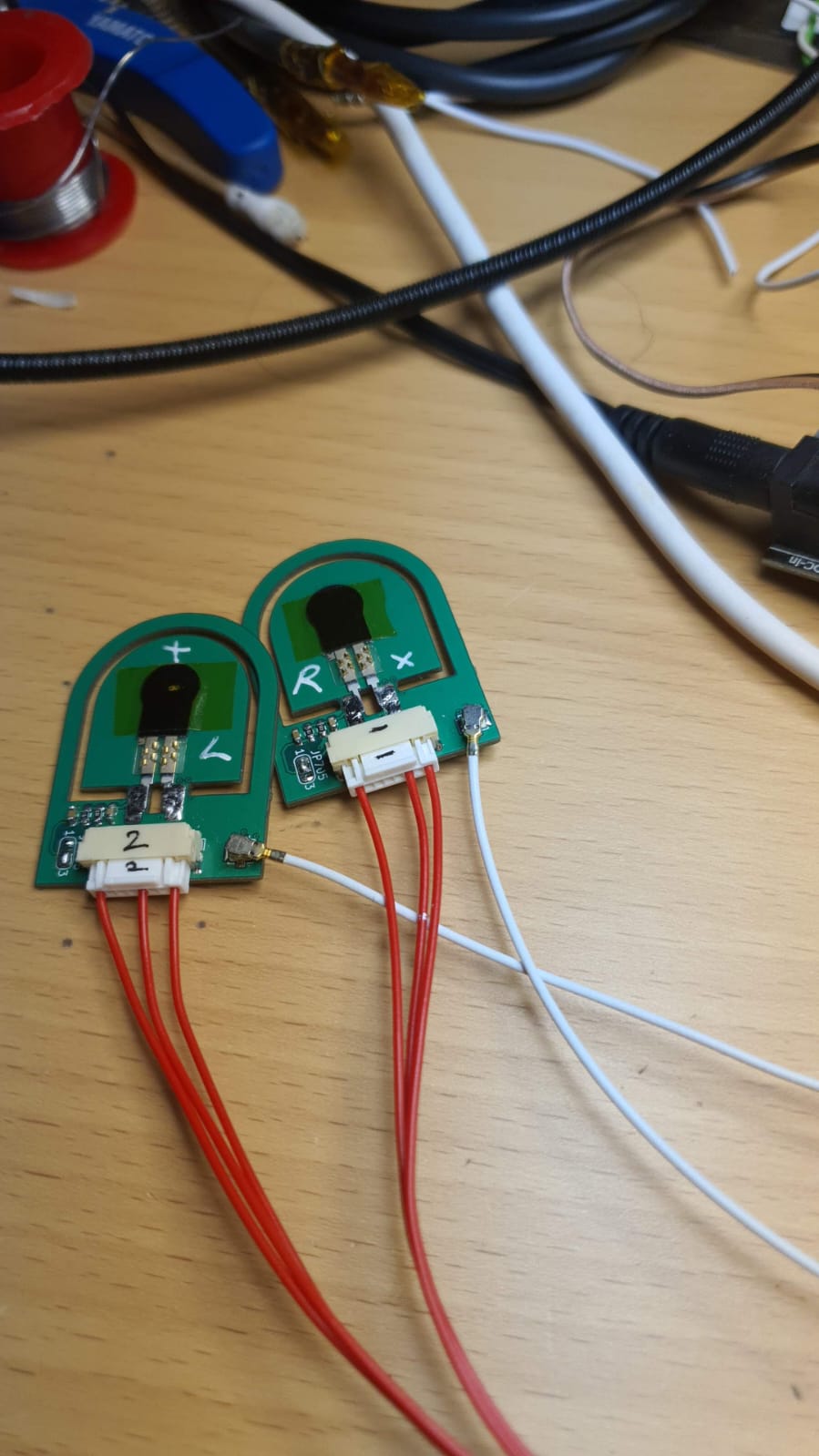

Finger-tip electrical activity detector
An experimental sensing platform combining a finger-tip sensor, custom wiring, embedded acquisition electronics, and bench validation.

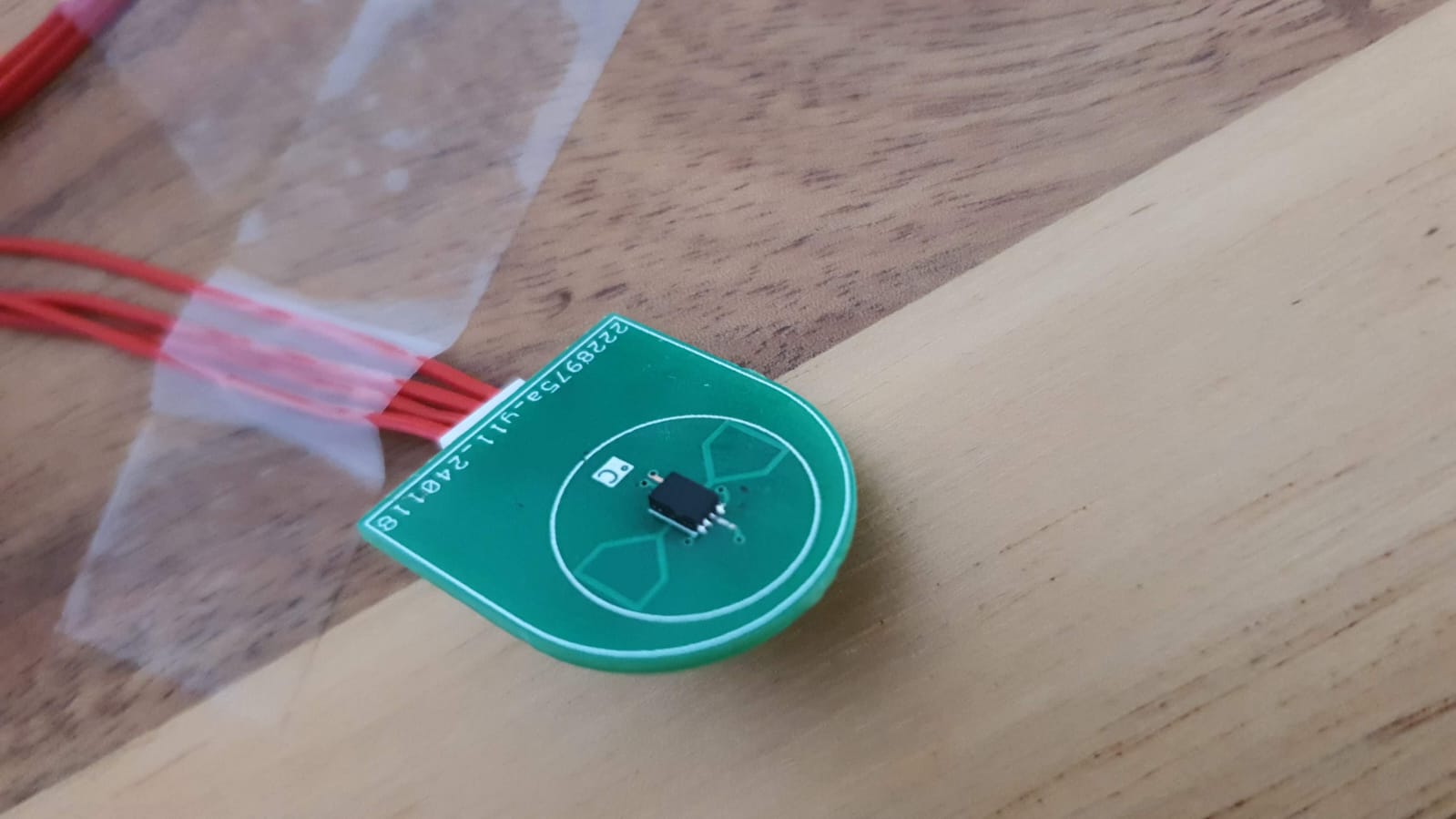

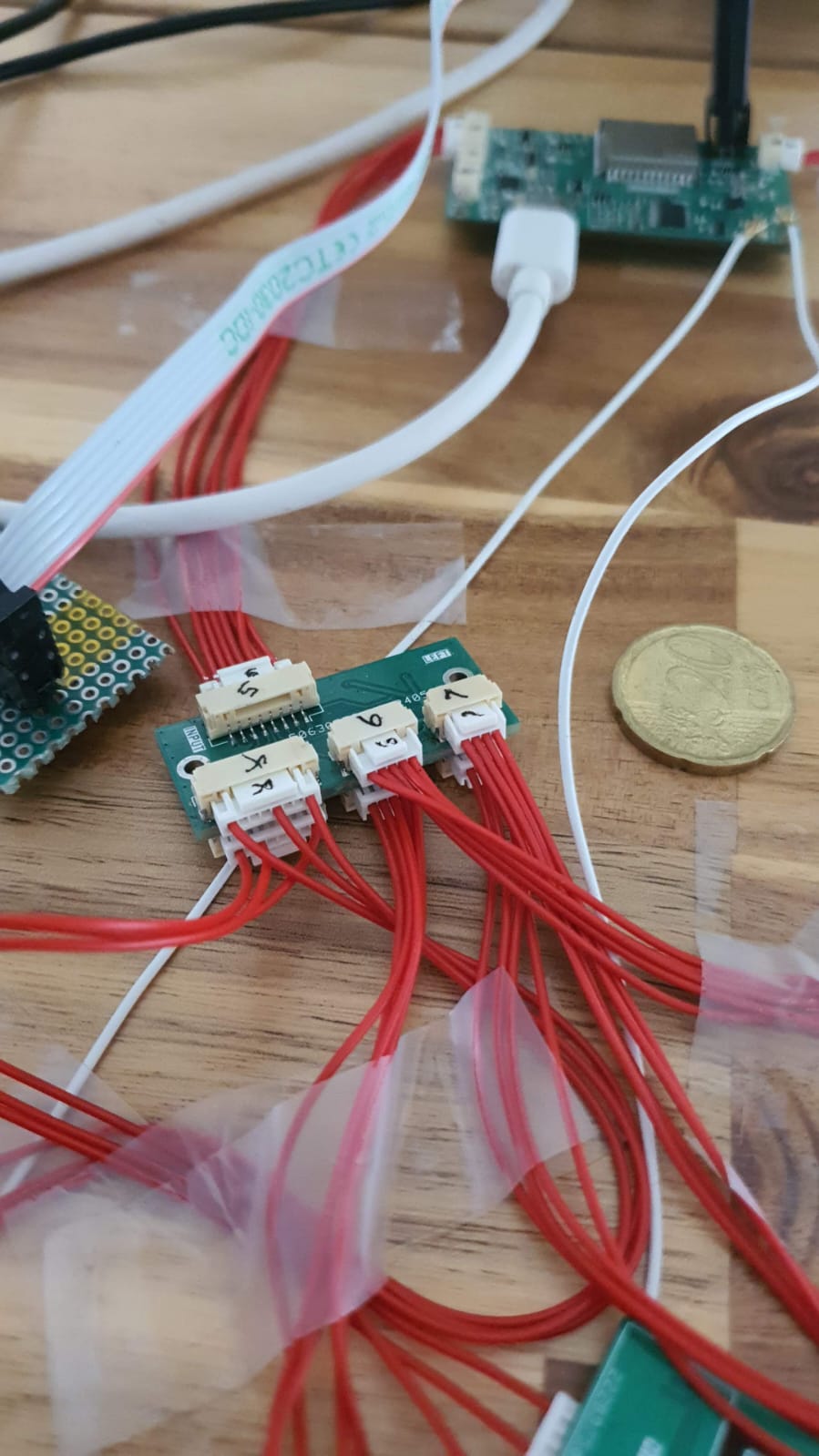

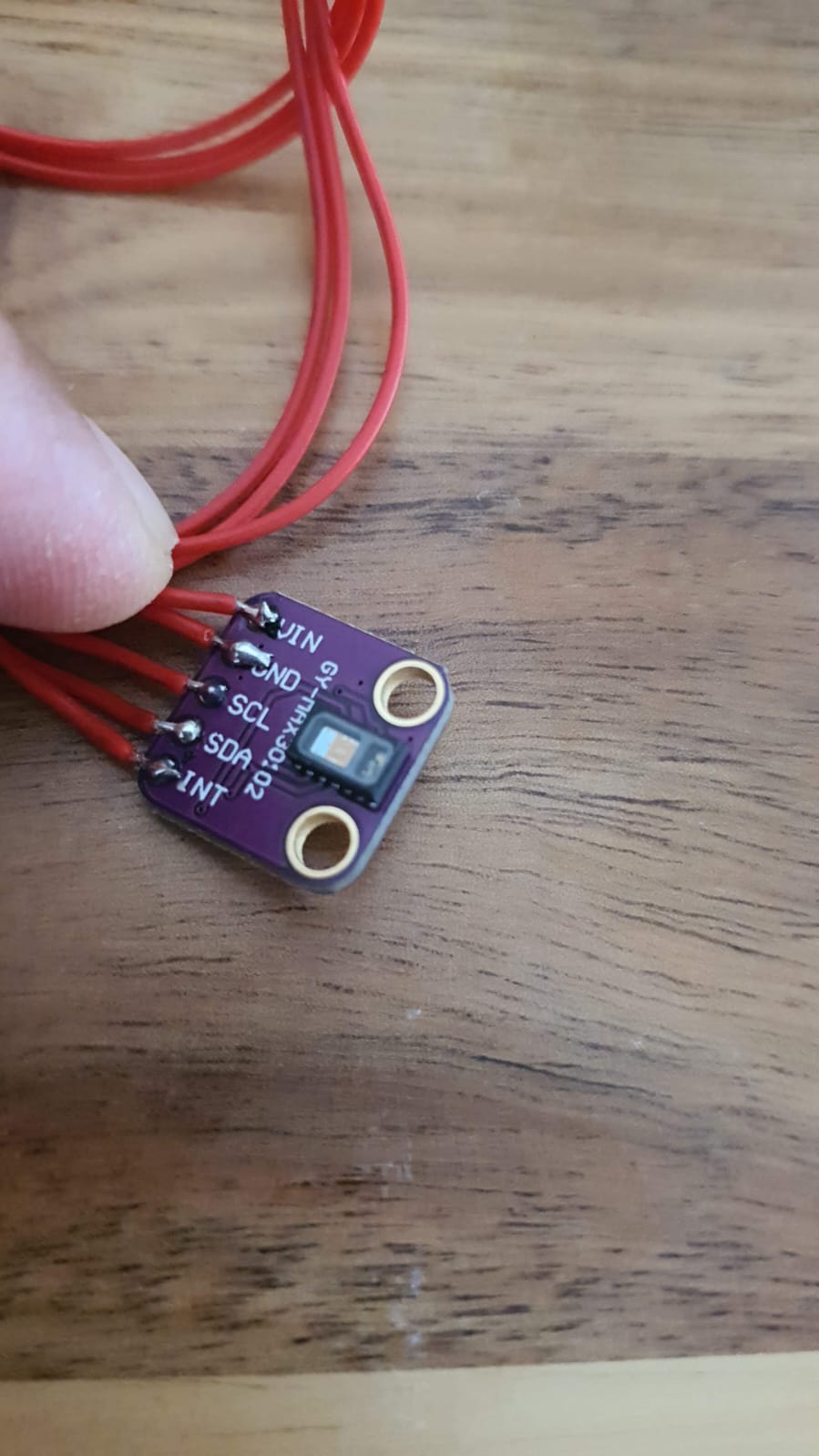

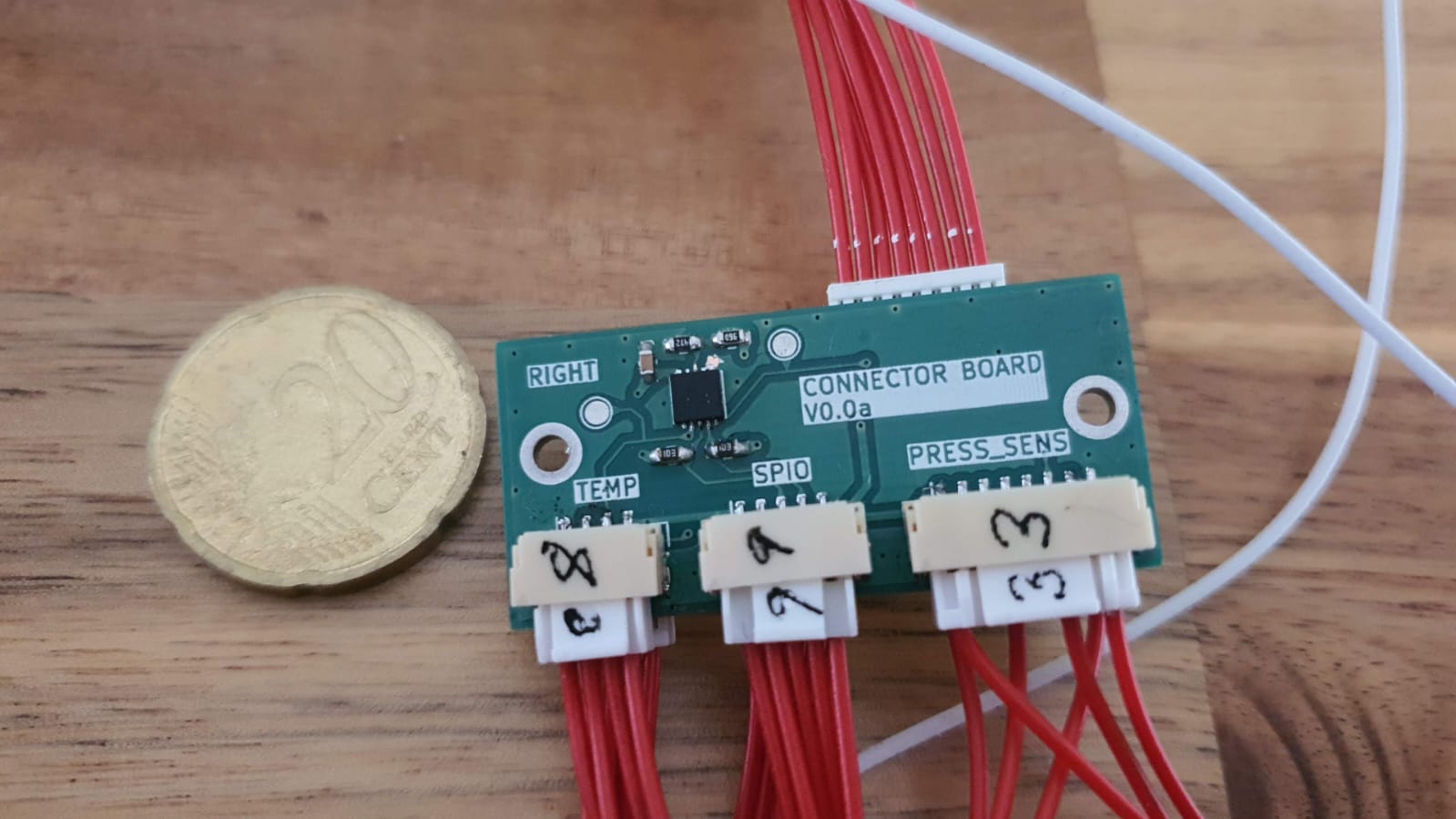

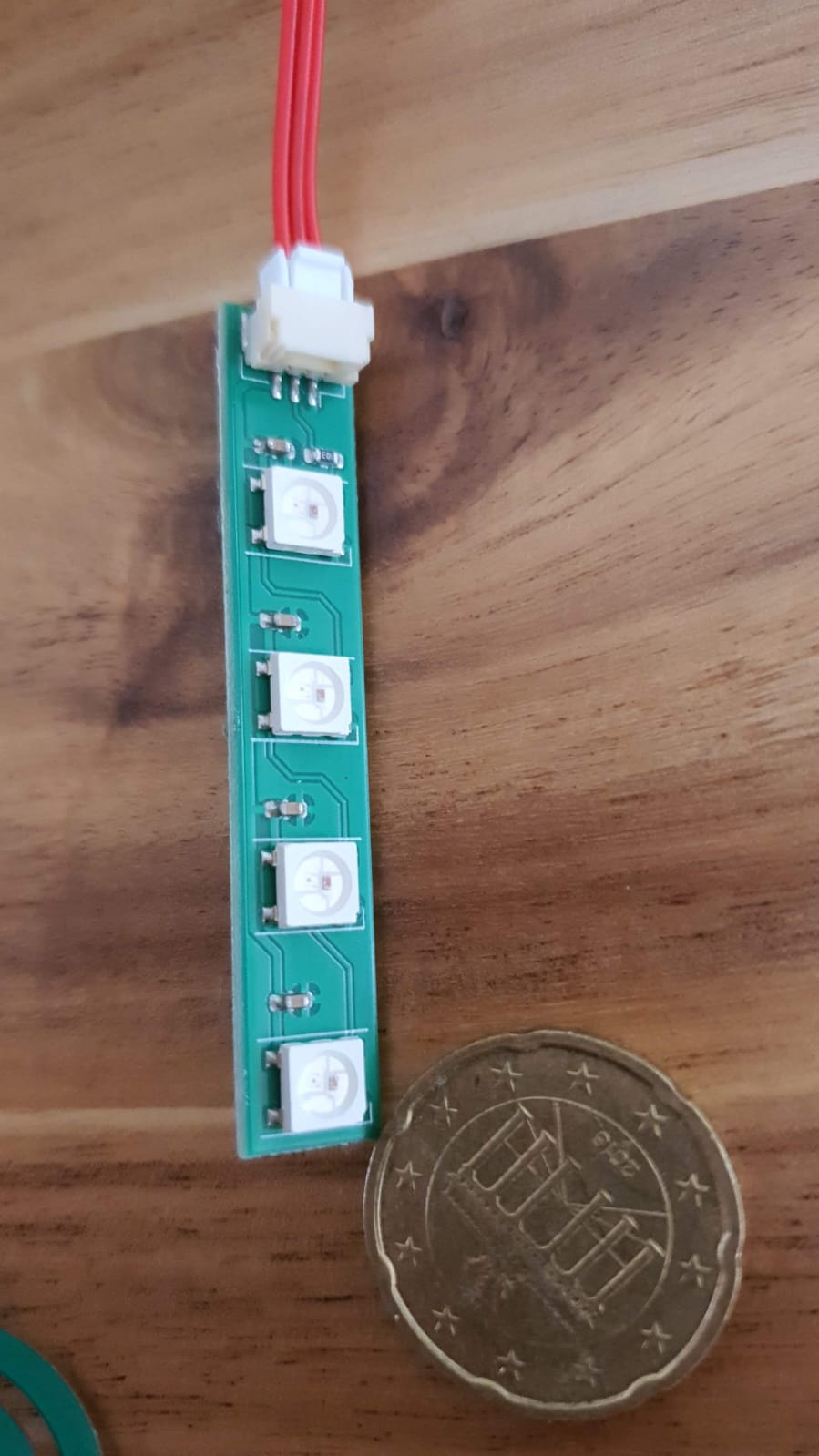

Sensor integration & signal wiring
.jpeg)
.jpeg)

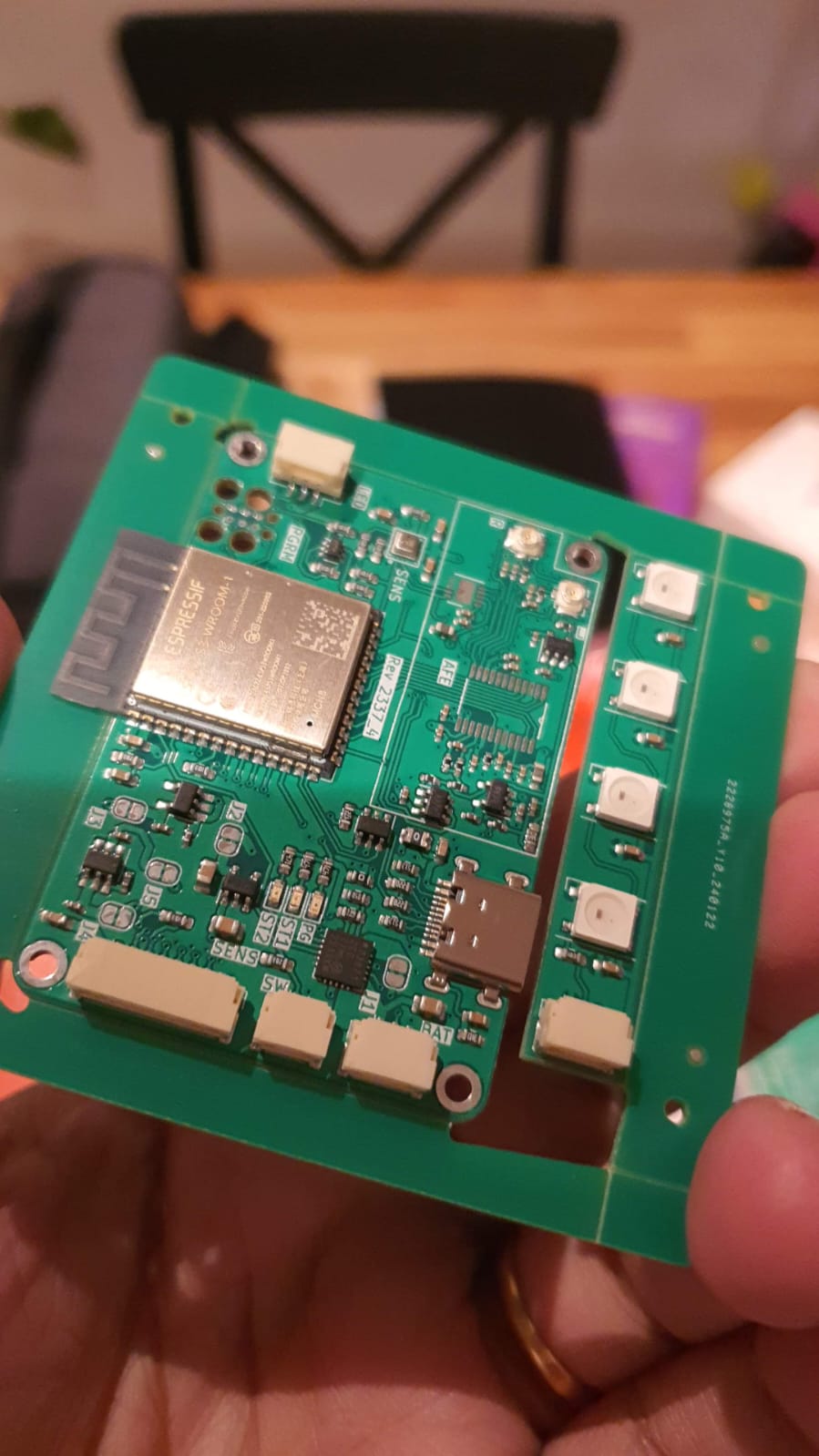

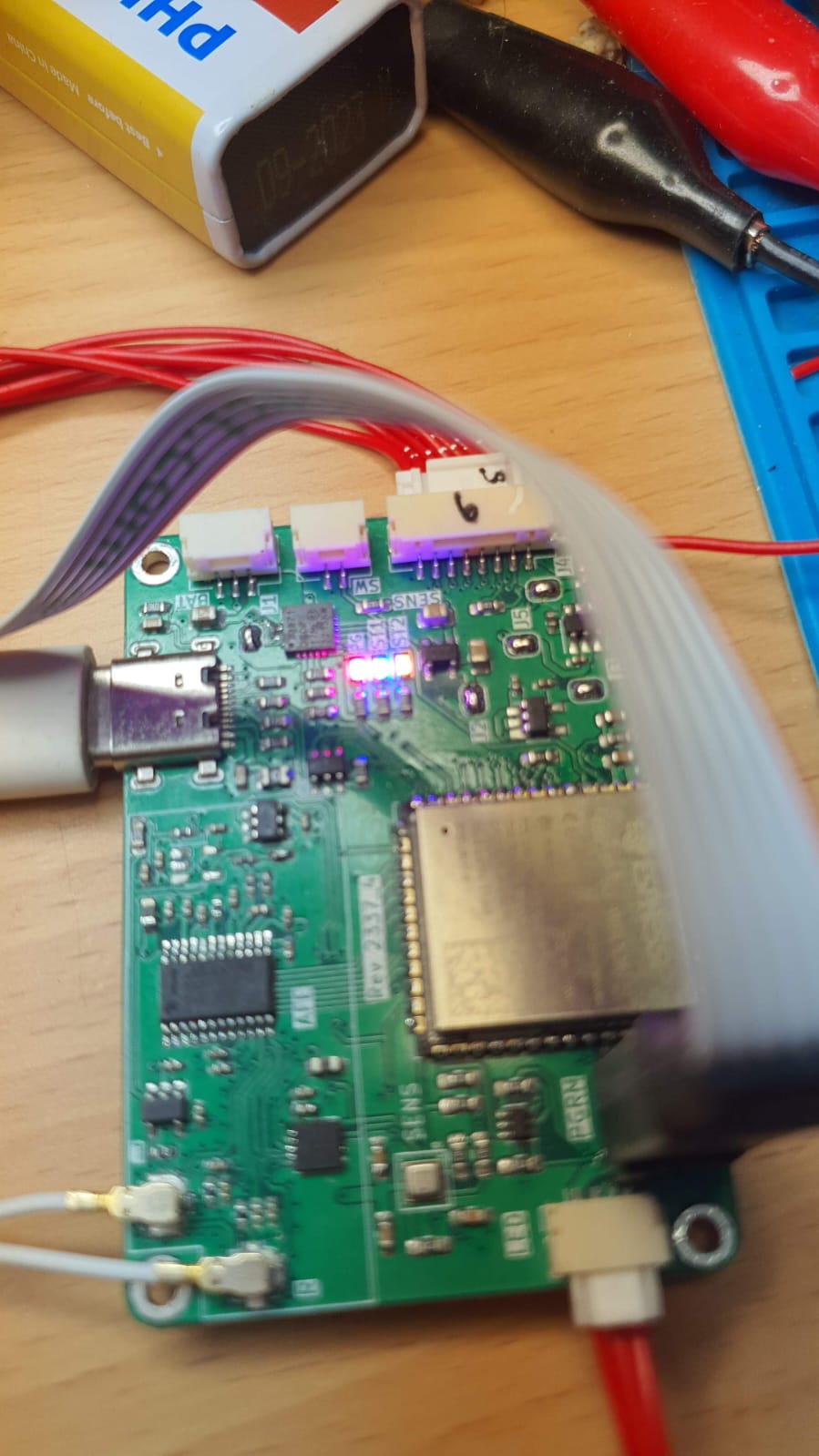

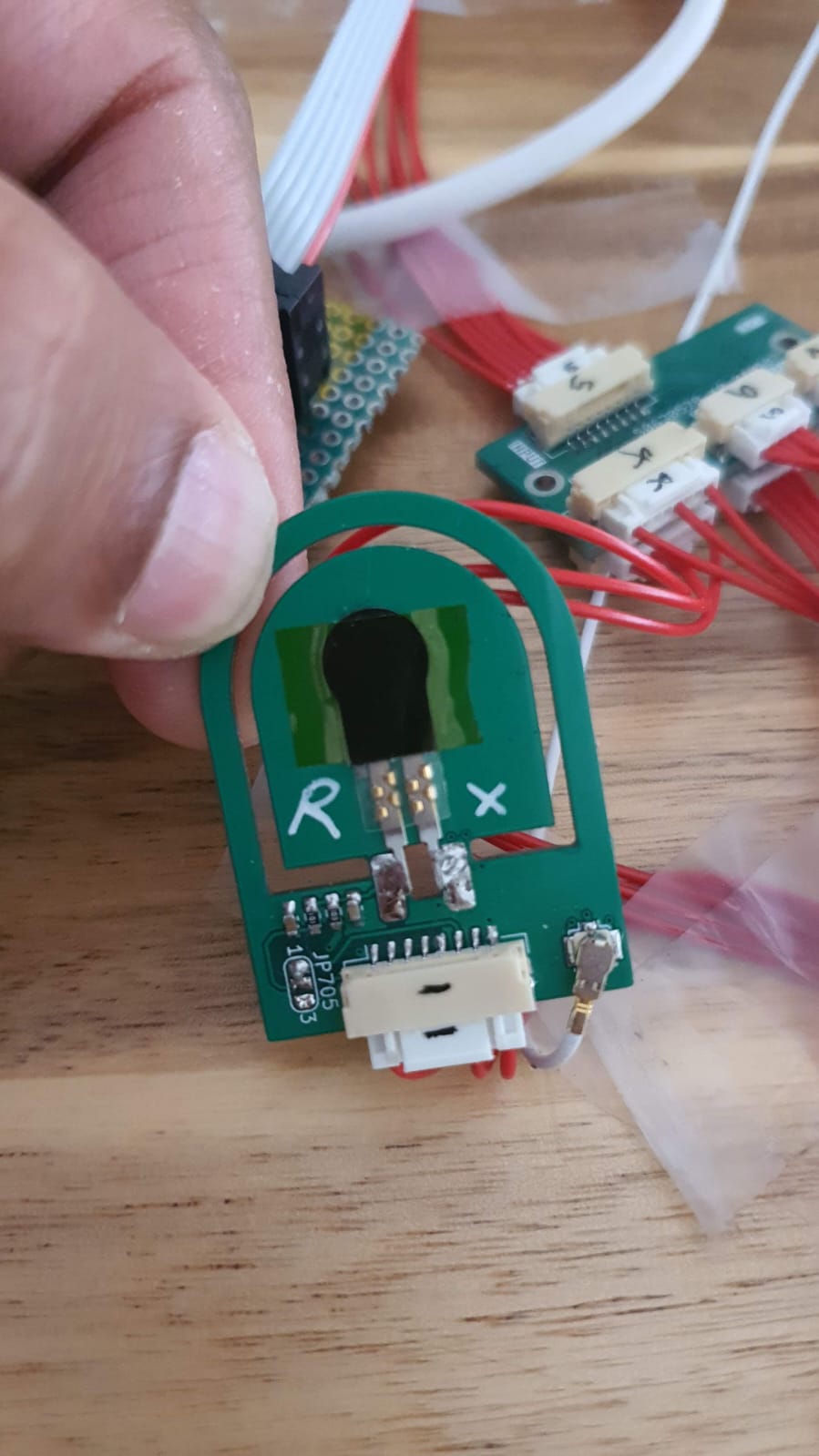

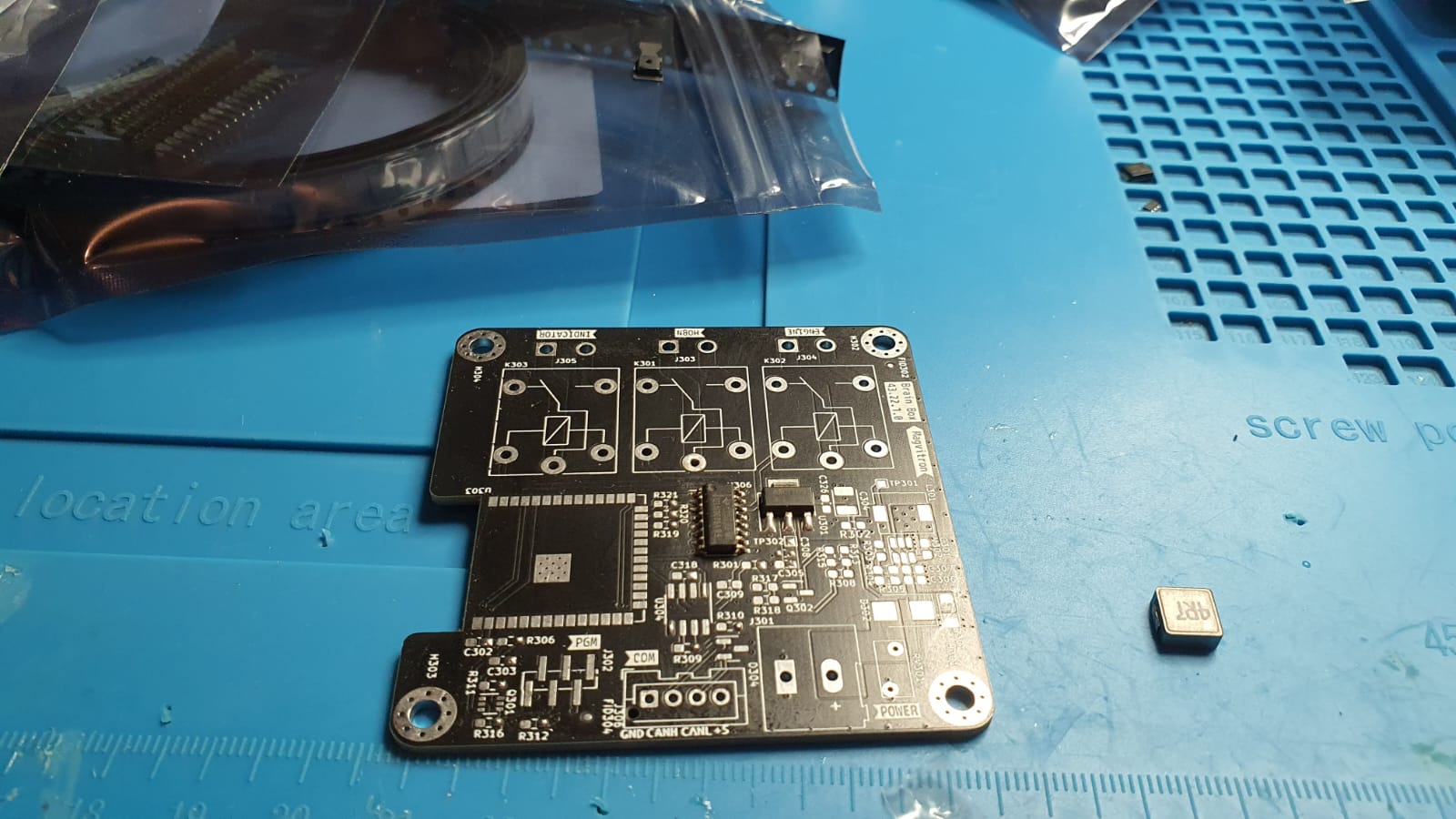

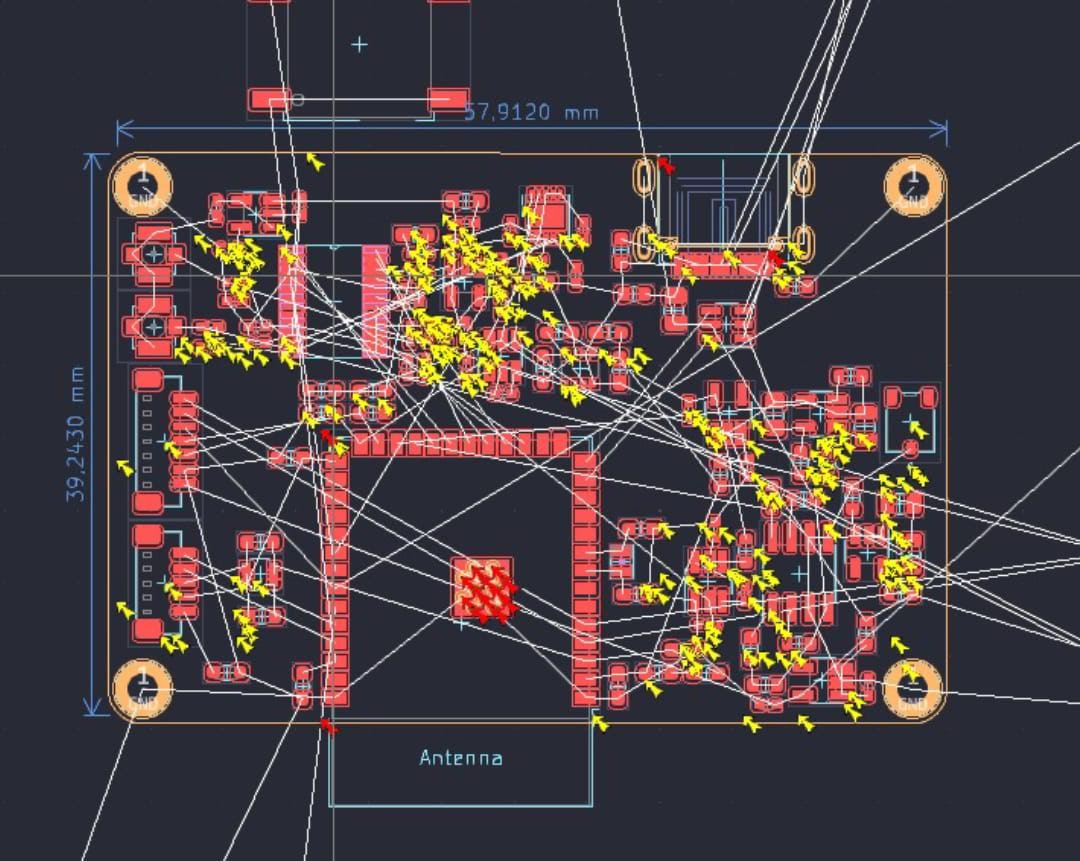

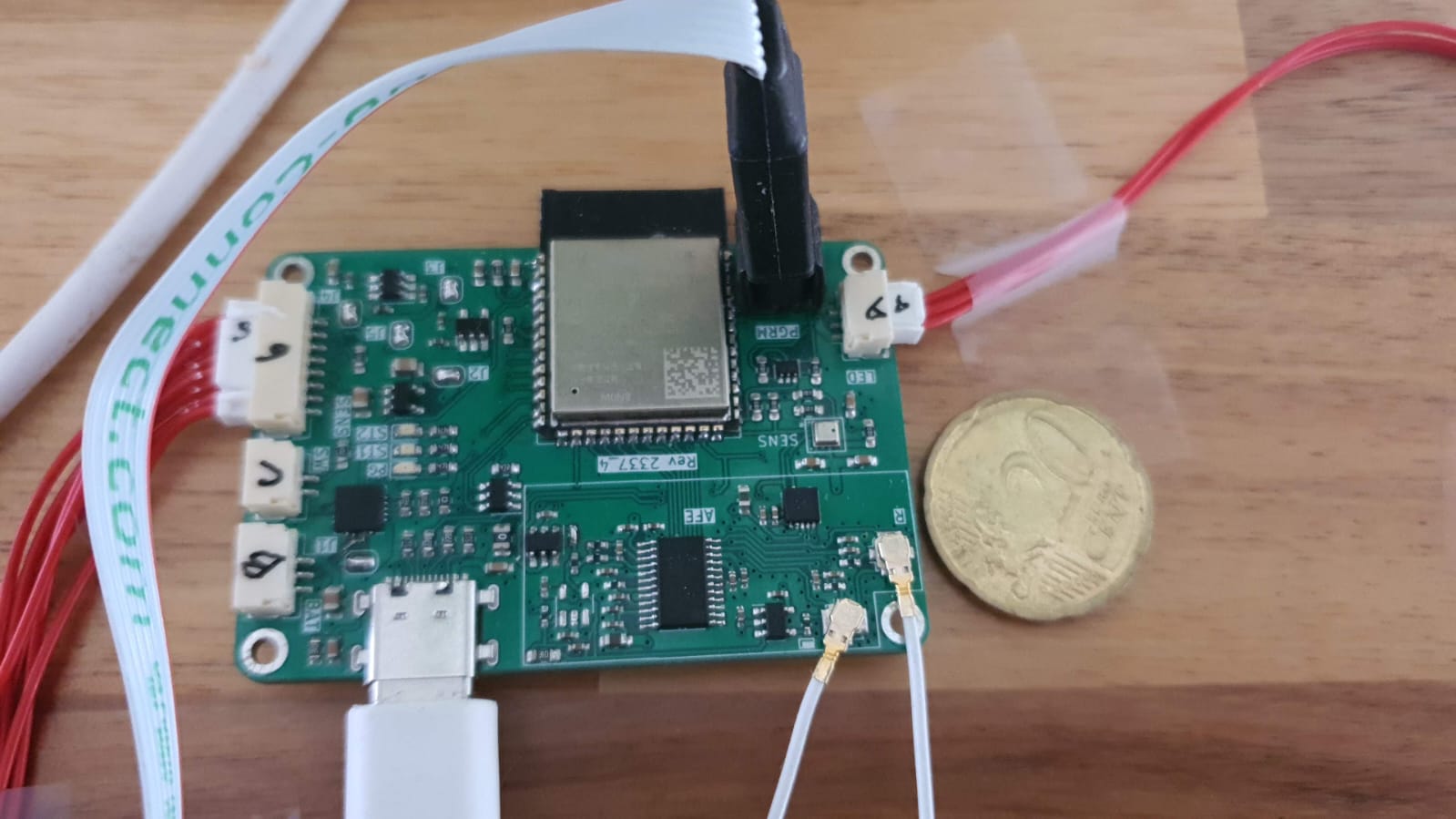

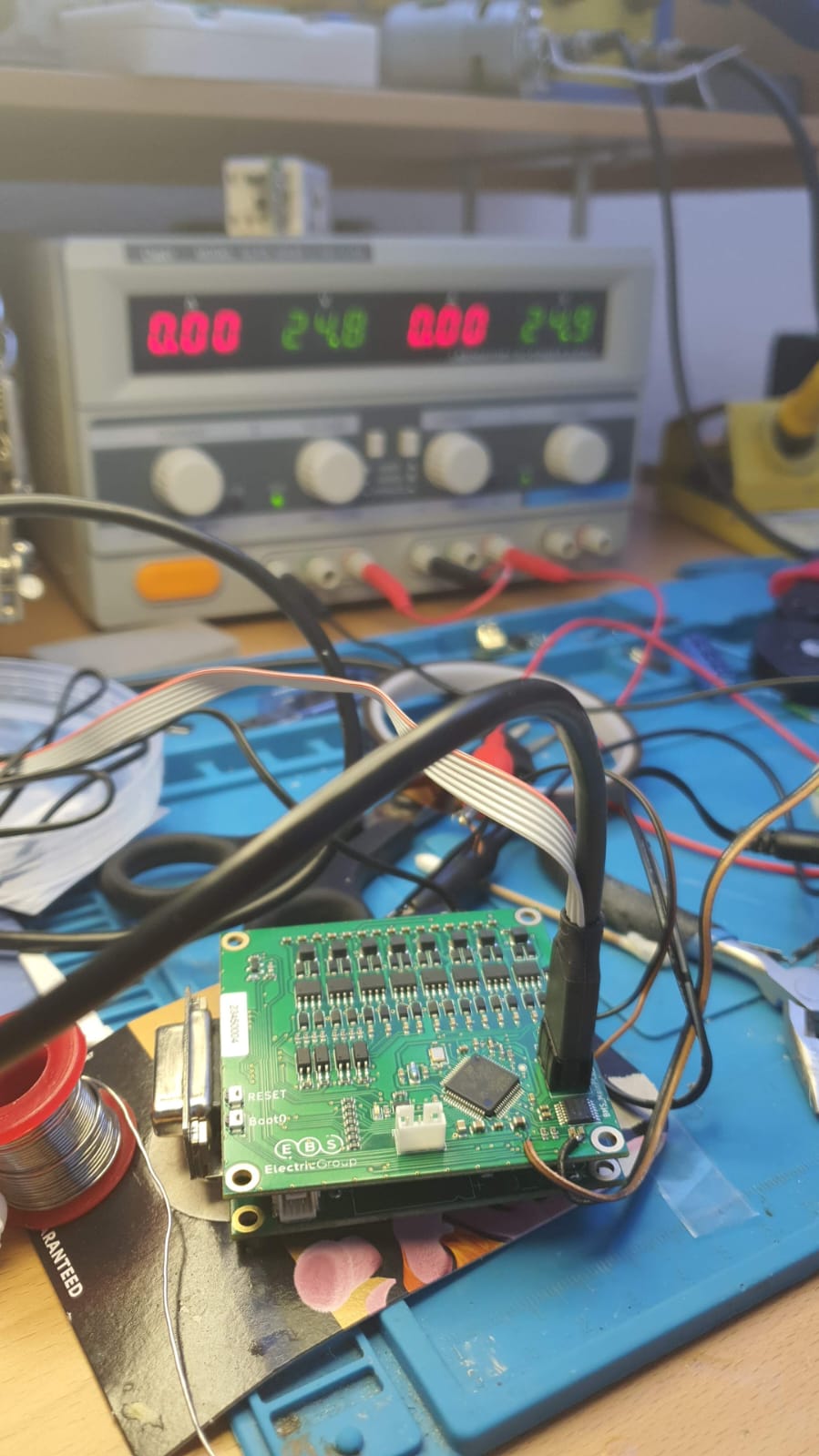

Acquisition hardware & custom boards
.jpeg)
.jpeg)
.jpeg)

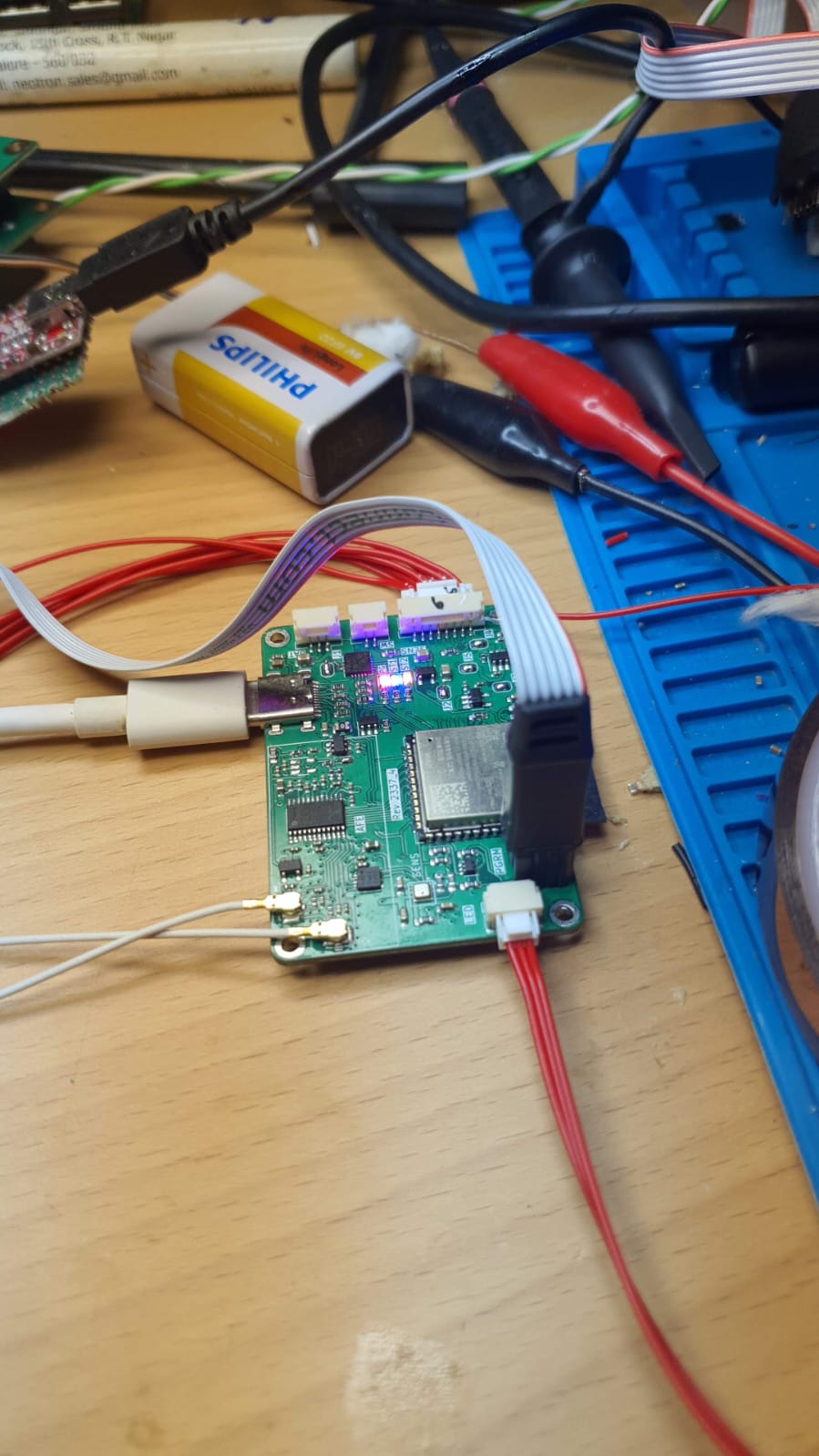

Bench testing & prototype validation
Communications project

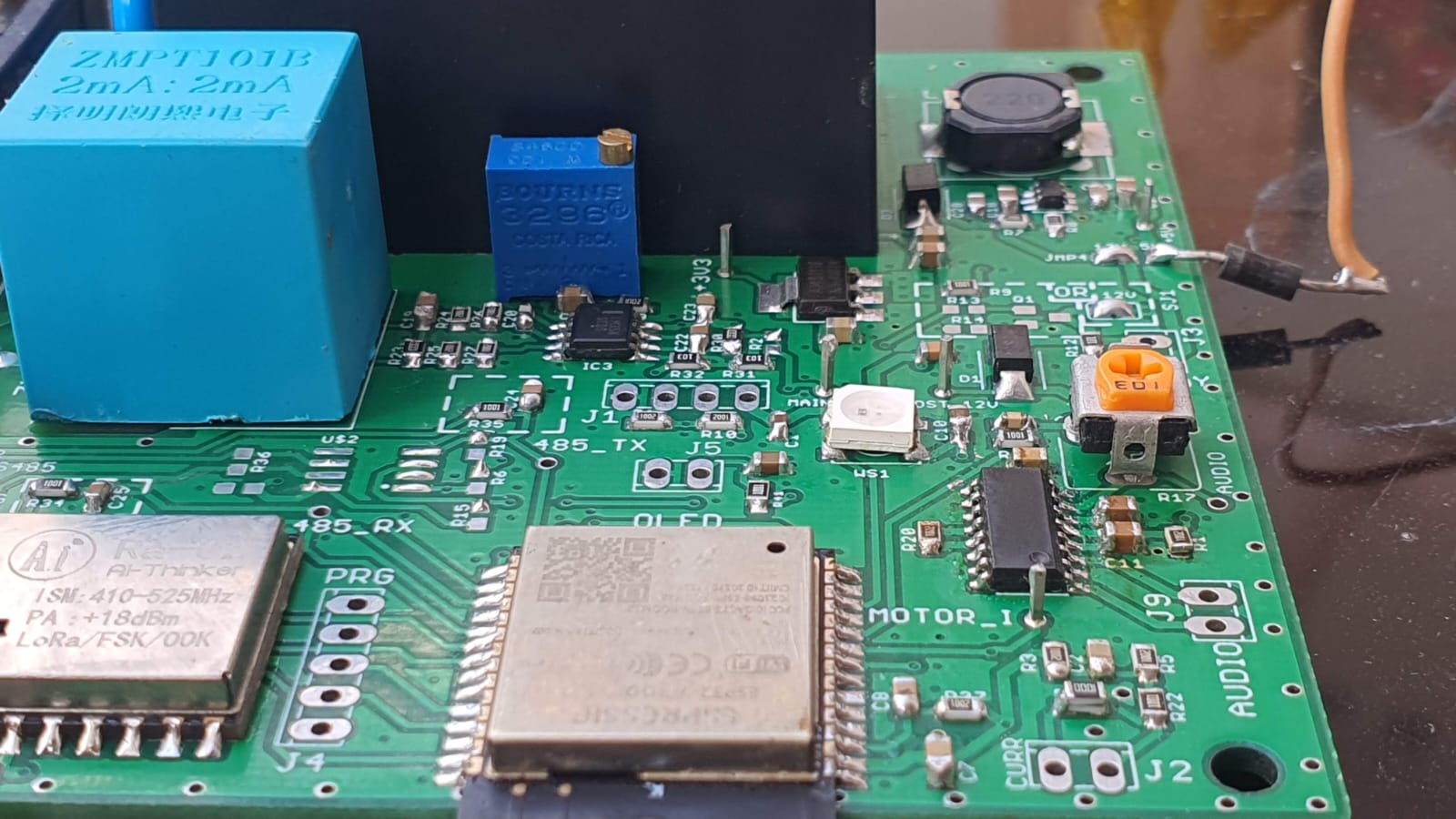

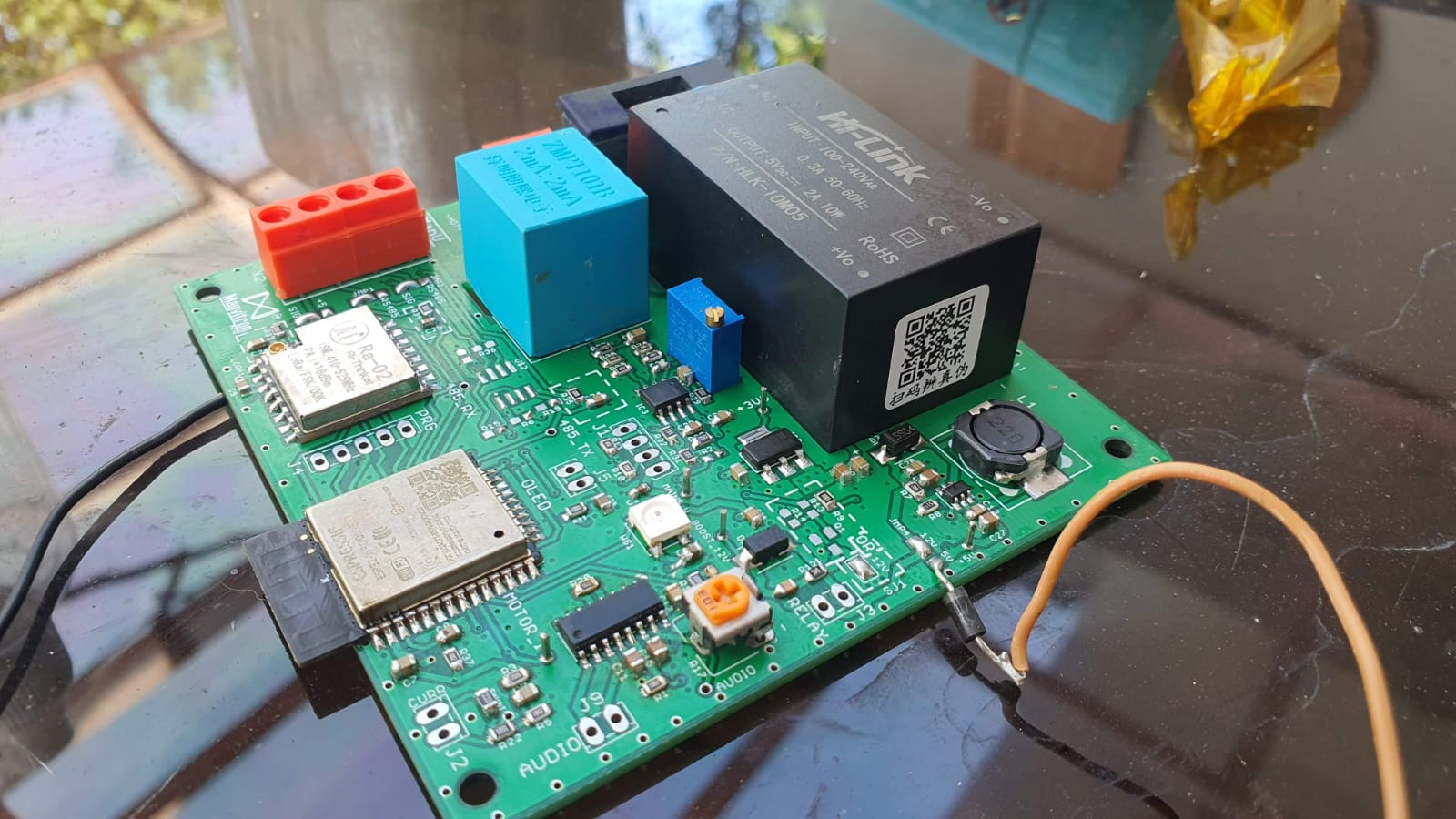

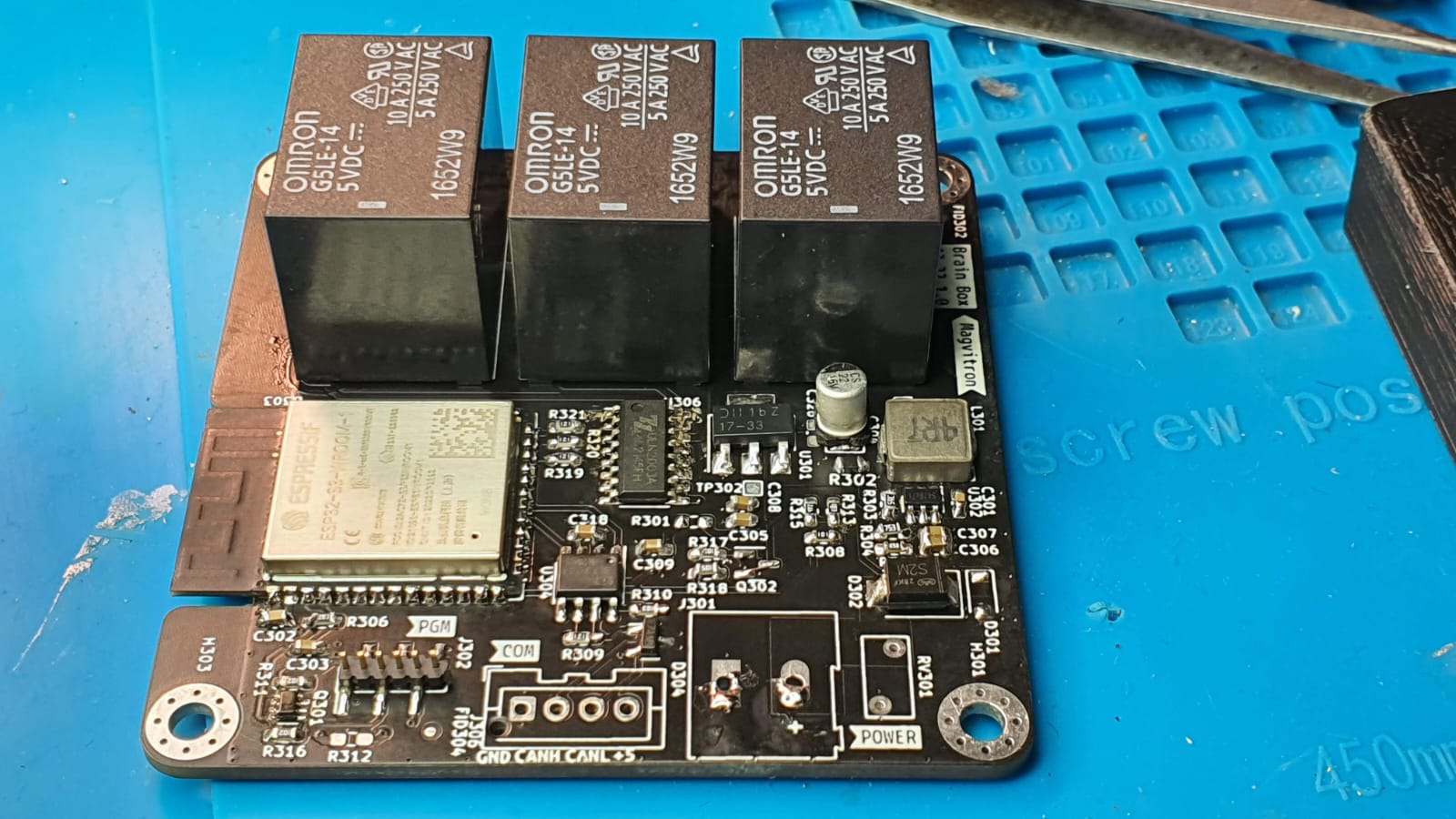

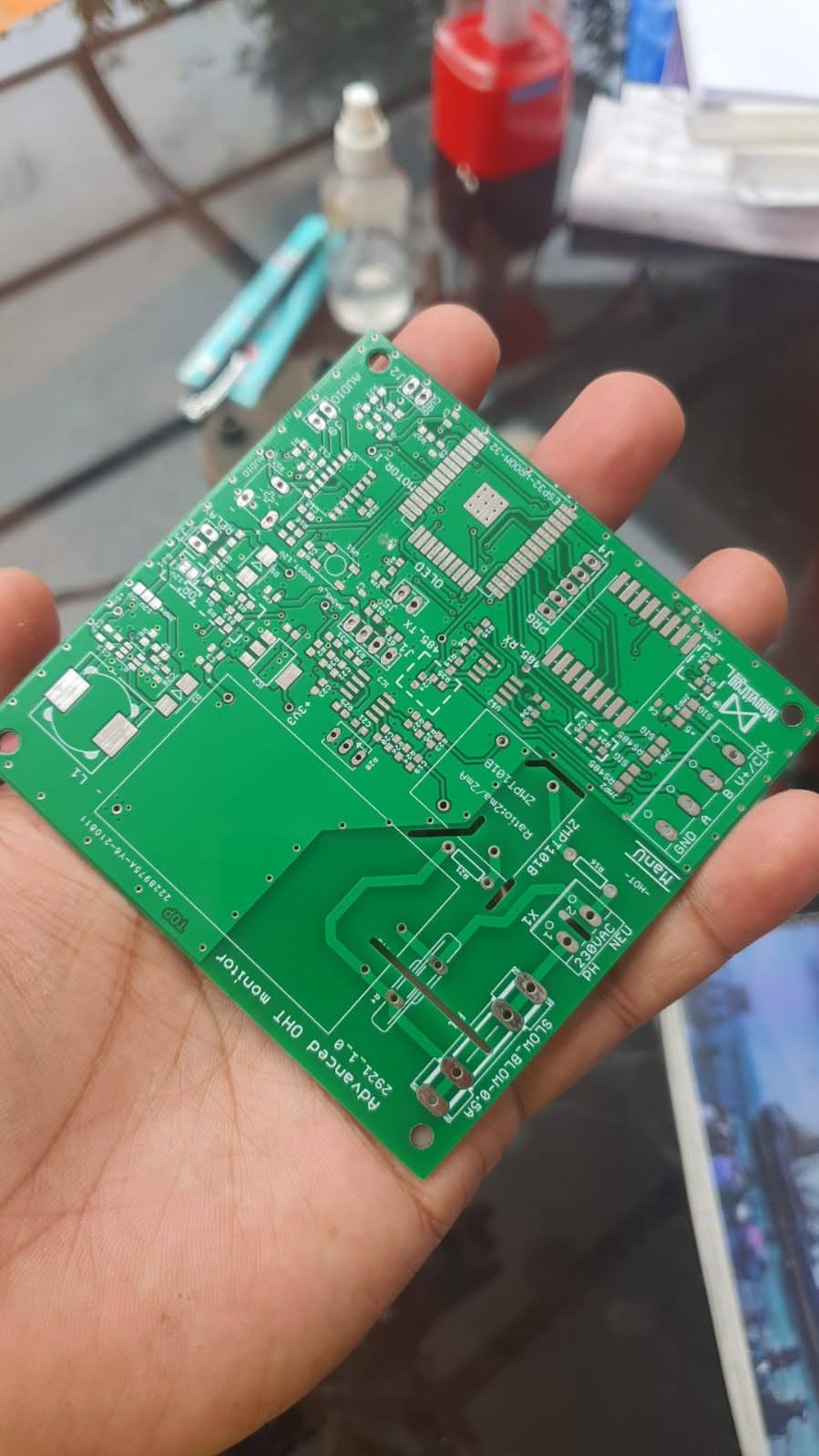

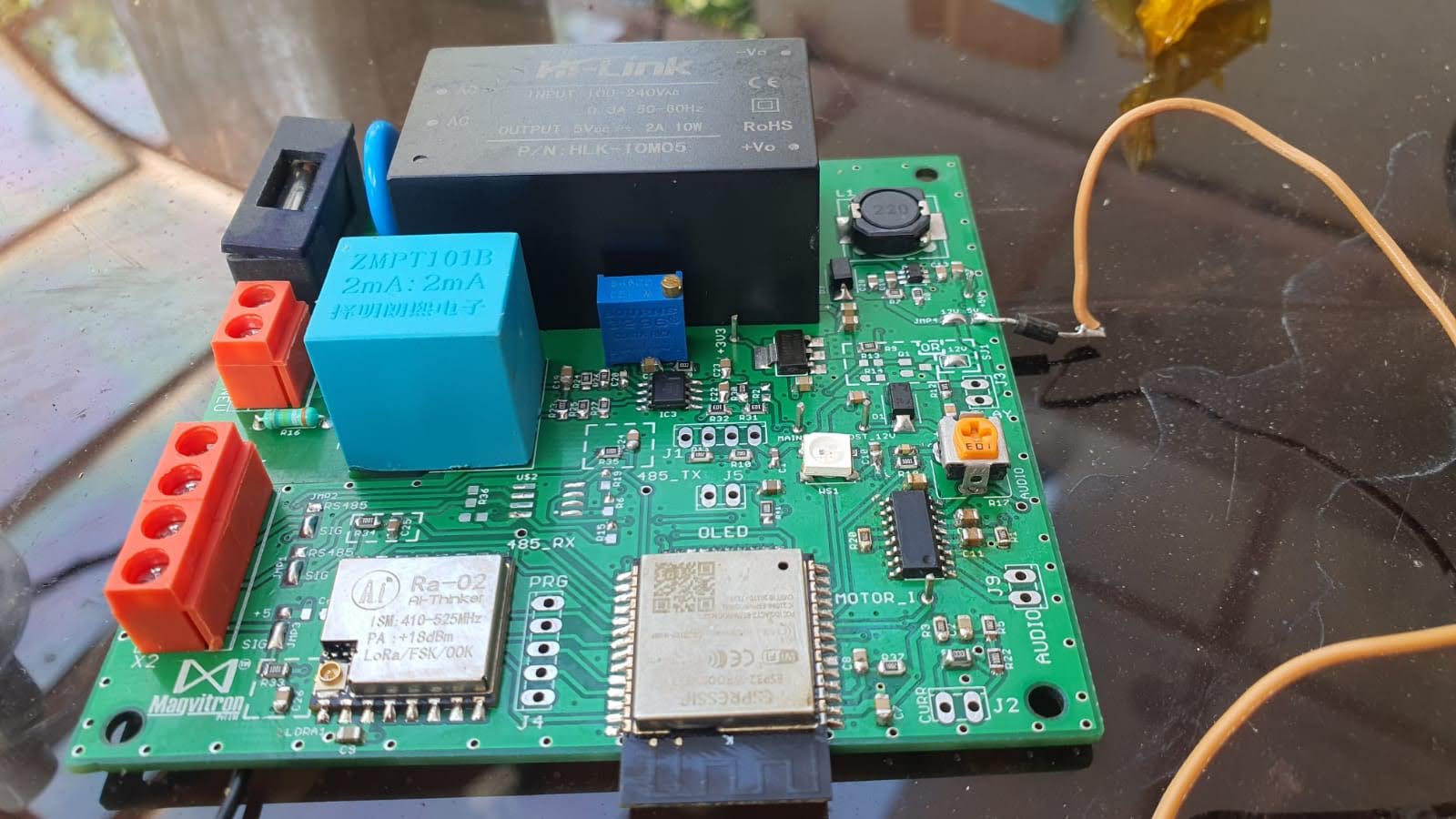

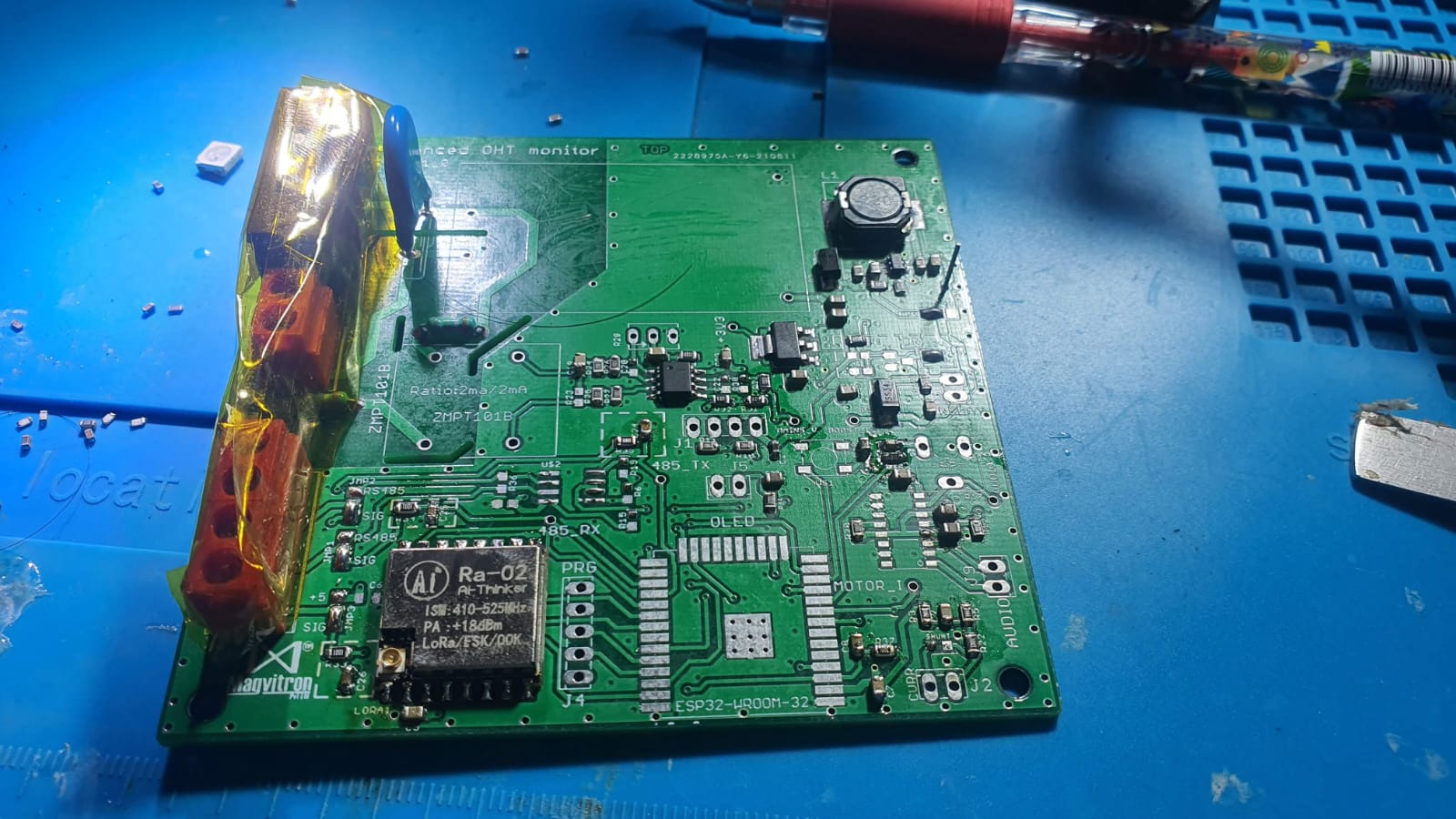

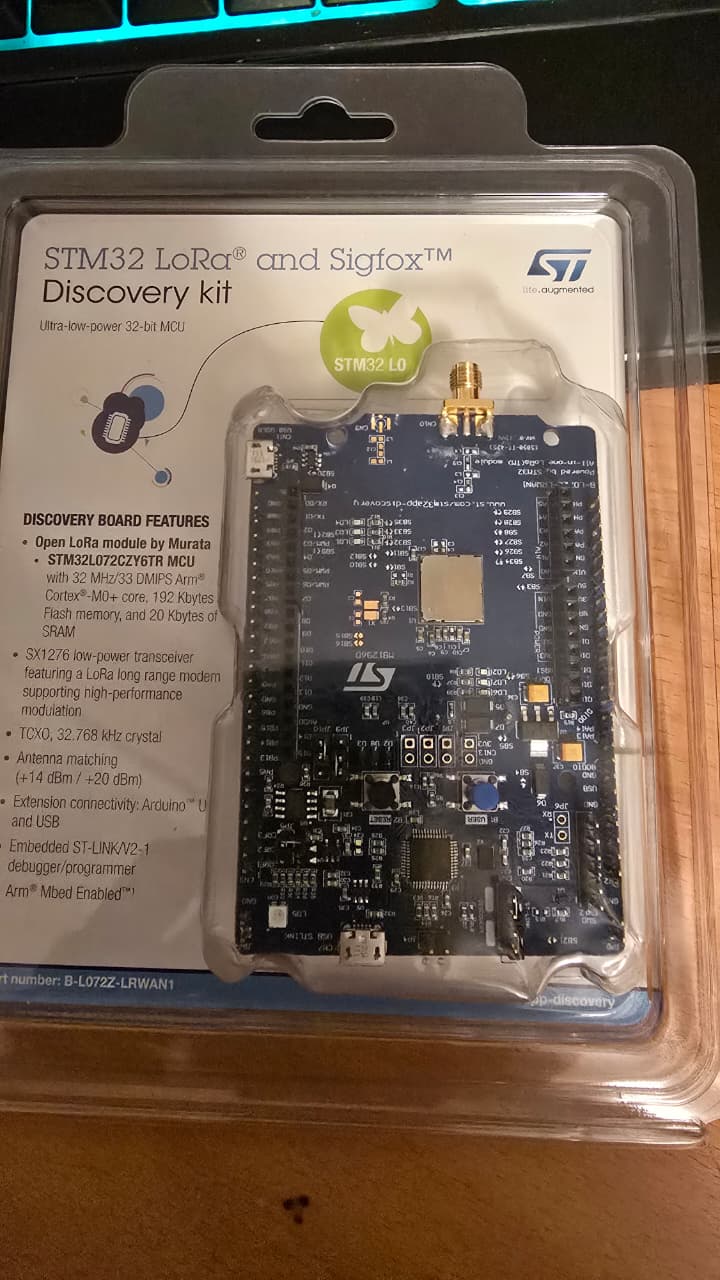

LoRa-based control system
A custom embedded communications platform combining LoRa radio, RS-485, ESP32 control, relay outputs, power conversion, and field-oriented I/O.

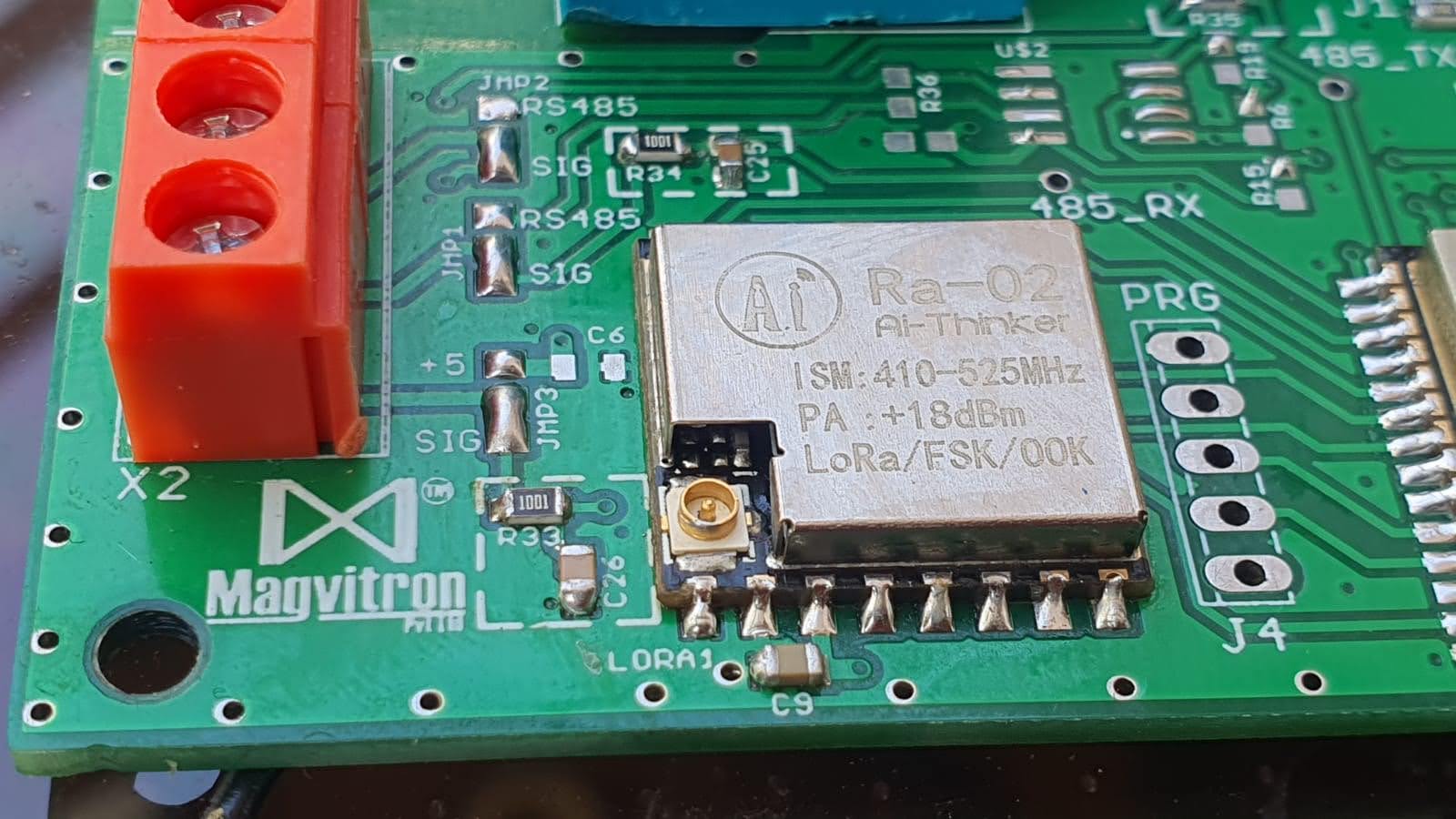

Radio, control & interface hardware
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)

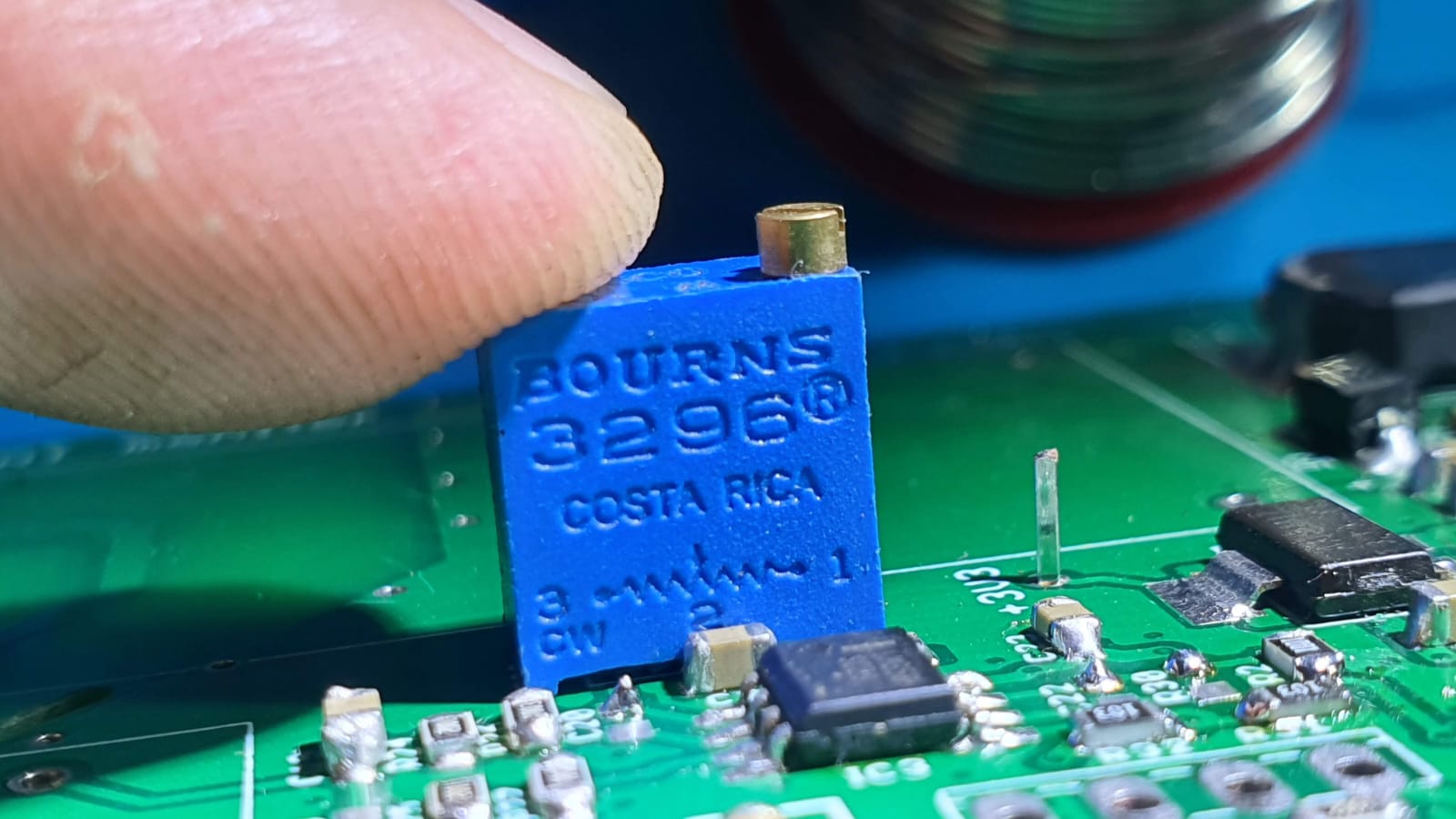

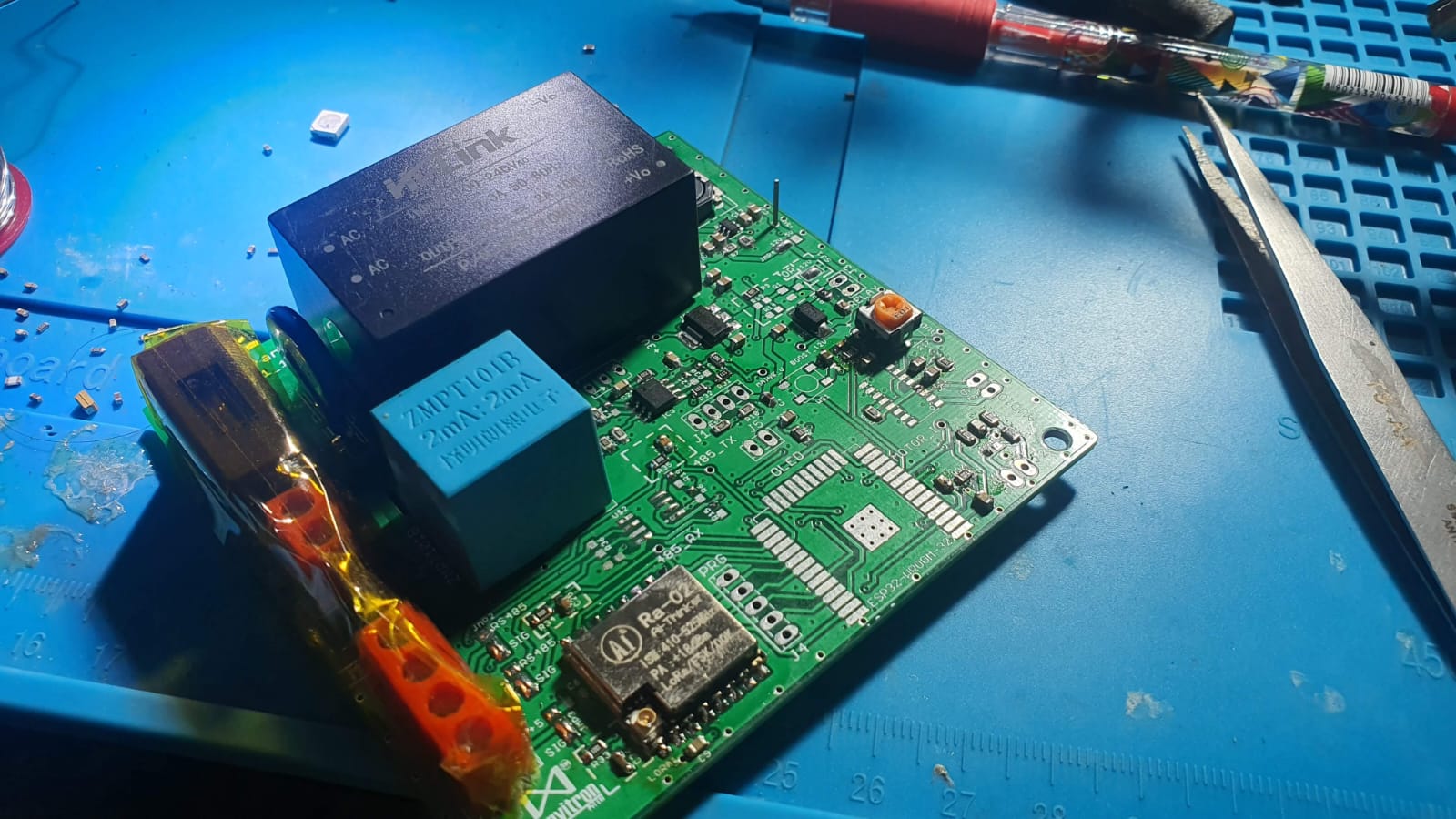

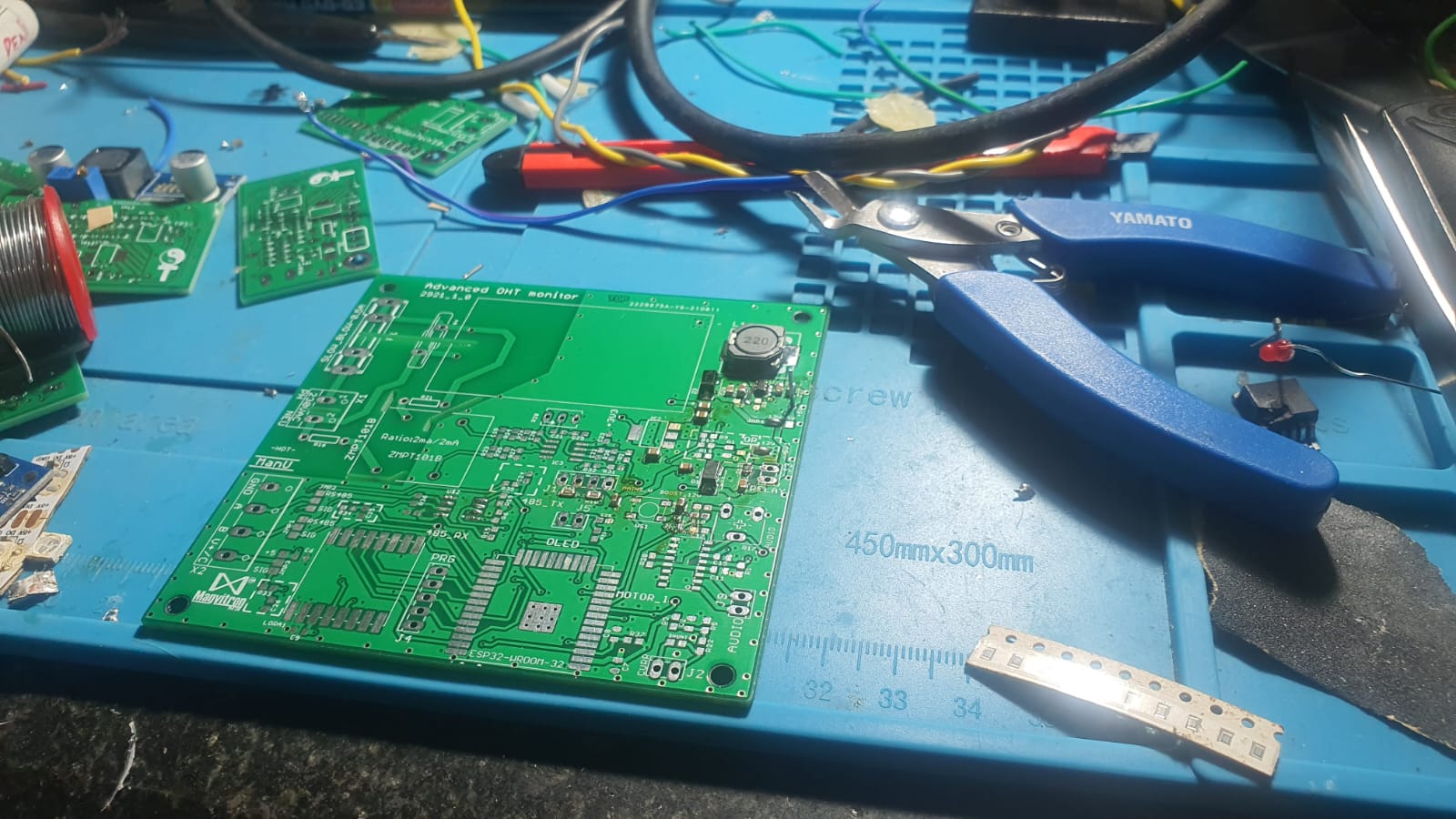

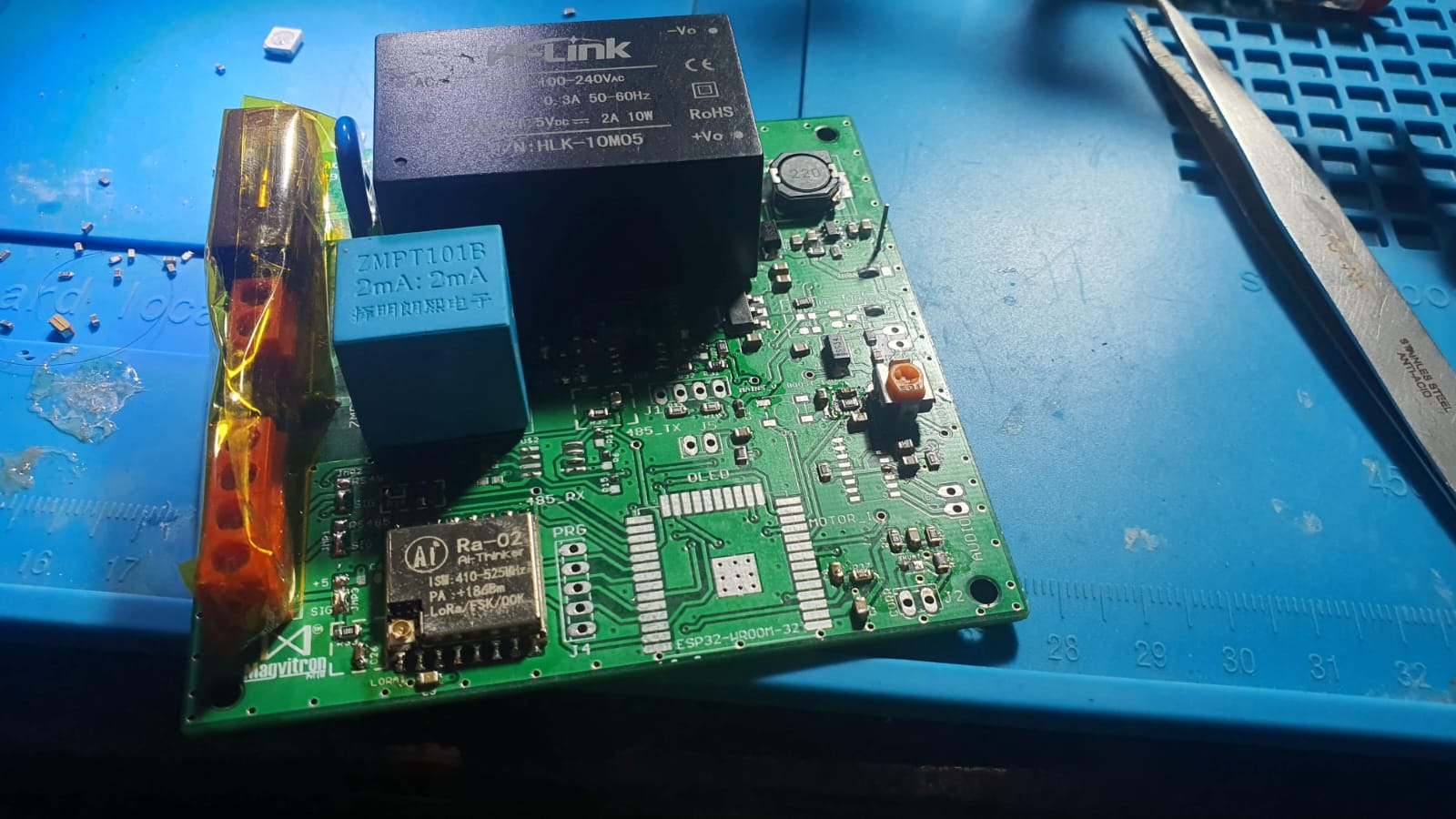

Assembled board & field I/O
.jpeg)
.jpeg)
.jpeg)
.jpeg)

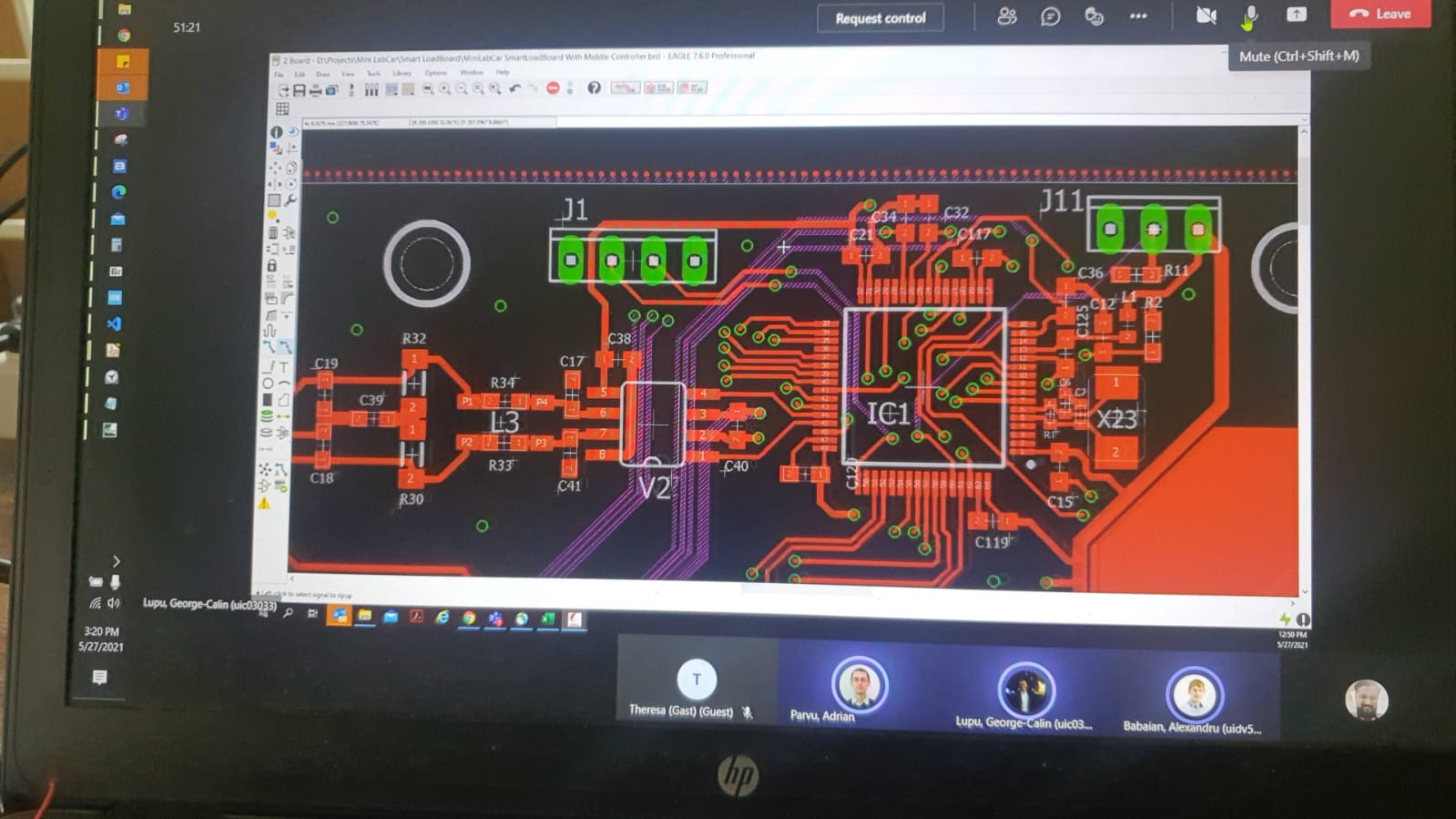

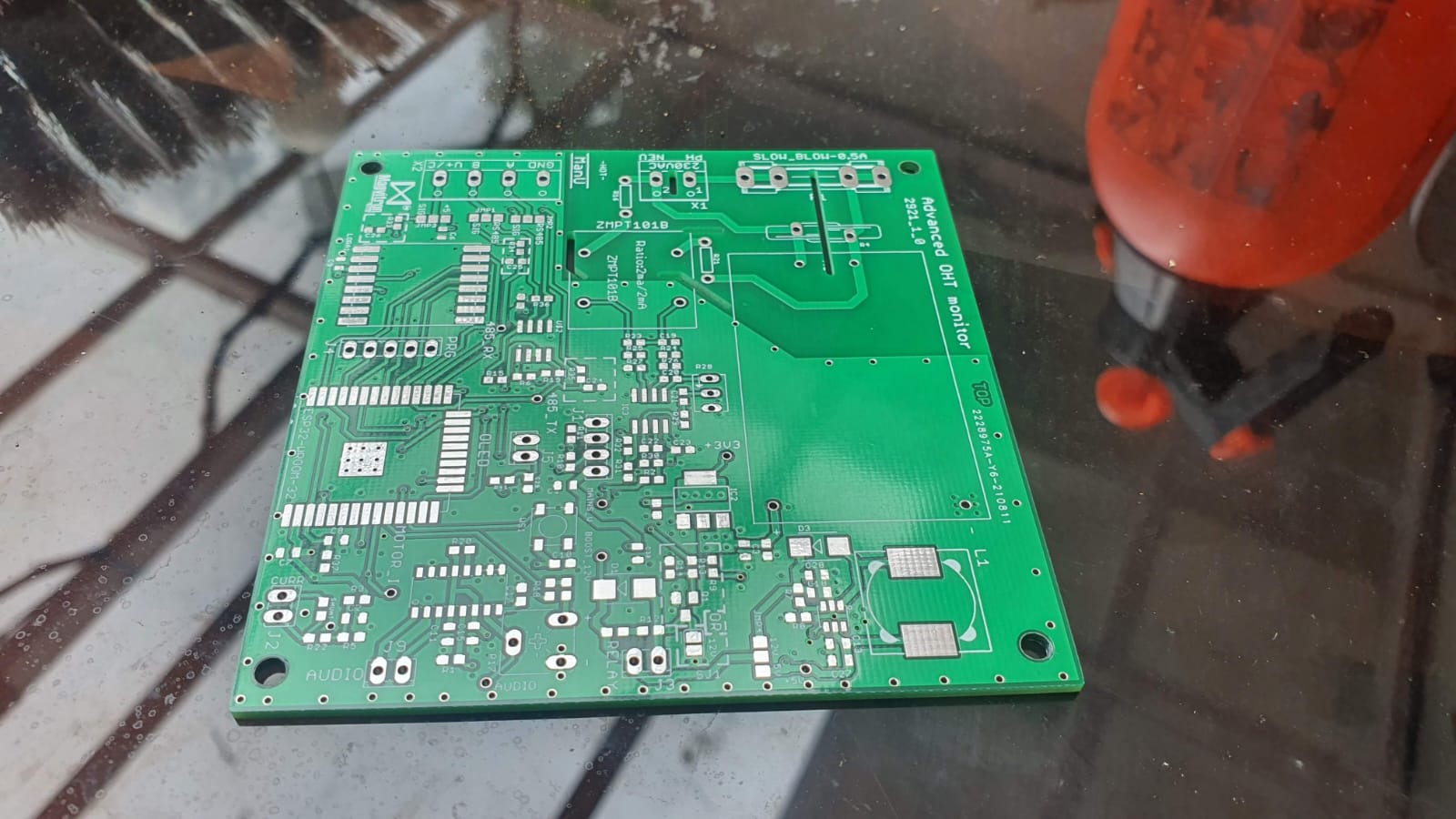

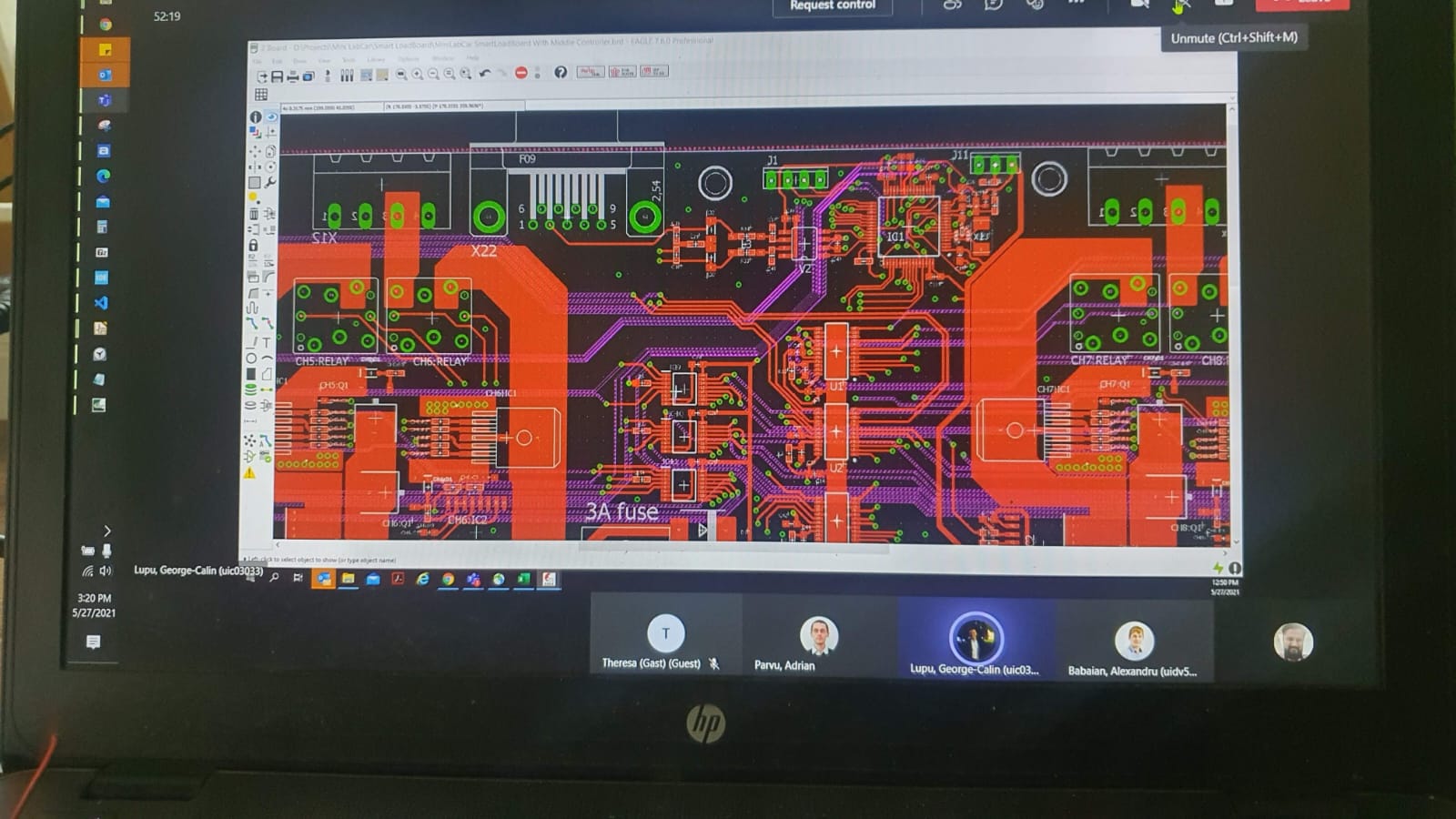

PCB design, power & validation
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
